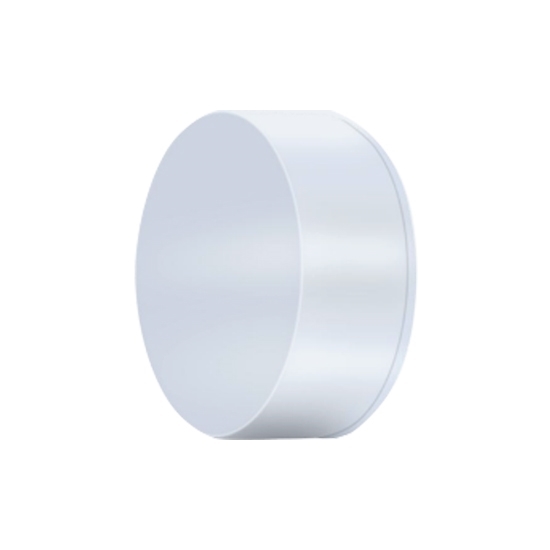

MmWave Human Presence Sensor, RS485/LoRa/LoRaWAN Output

0 reviews • Write a review

from

$92.15

Ex Tax: $92.15

Stock: In Stock
Model: RDDLZ-HPS-60G
Weight: 1.00
SKU: RDDLZ-HPS-60G

Available Options

Short Description

Output Signal

Gateway

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lifesmart 3D millimeter-wave radar human presence detection sensor using advanced FMCW processing and radar algorithms. Accurately detects movement, micro-movement, and stillness within a 6-meter adjustable range, supporting up to four detection zones. Offers RS-485 (Modbus-RTU), LoRa, and LoRaWAN for easy IoT integration.

Specification

Model	RDDLZ-HPS-S	RDDLZ-HPS-RS	RDDLZ-HPS-LO	RDDLZ-HPS-LW
Signal Output	Switch	RS485	LoRa	LoRawan
DC Power Supply	DC 12V
Warm-up Time	1min
Working Temperature	-10°C-55°C
Working Humidity	5-80% RH, non-condensing
Material	ABS
Installation	Top-mounted/Side-mounted
Note	If you require air quality monitor sensors in other measurement ranges not listed in the table above, please contact us with your operating environment to help you select the right sensor for your application.

Features

Advanced Radar Technology: Utilizes 60GHz FMCW radar, allowing the millimeter wave human presence sensor to detect both motion and stationary presence with high precision.
Adjustable Coverage: Detects within a configurable area of up to 20m², with a horizontal beam angle of ±60°, ensuring wide coverage in rooms and offices.
Smart Connectivity: Compatible with RS485, LoRa, LoRaWAN, the millimeter-wave radar human presence detection sensor easily integrates into smart control systems.
Fast Response: Detects human presence in under 1 second and switches to ‘no one’ status in about 30 seconds, ensuring it supports quick automation triggers.
Flexible & Durable: Supports both ceiling and wall mounting, with the mmWave human presence sensor enclosed in an impact-resistant ABS housing for long-term use.

Dimension (unit: mm)

Applications

Tips: The working principle of the millimeter-wave human presence sensor

The millimeter-wave radar human presence sensor detects human movement and rest by transmitting and receiving millimeter-wave signals and utilizing the Doppler effect and phase changes. The sensor can penetrate thin obstacles (such as glass and wooden boards) to detect targets. Even when the human body remains stationary, it can perceive through subtle signal changes generated by slight movements such as breathing. The internal signal processing algorithm will filter and identify the collected raw data, thereby achieving high-precision measurement of human presence and distance, which is suitable for scenarios such as smart home, lighting control, and security monitoring.
