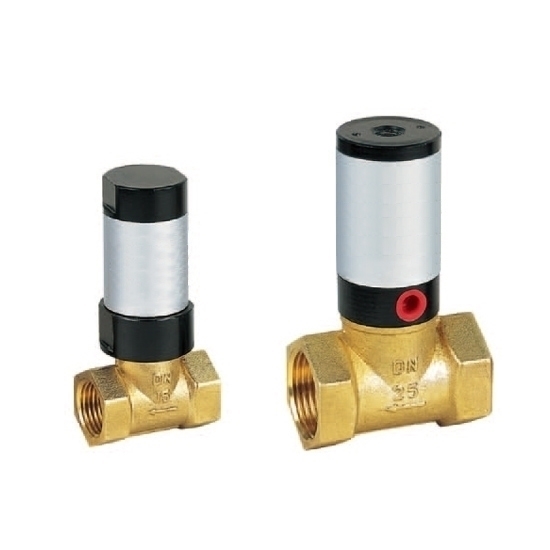

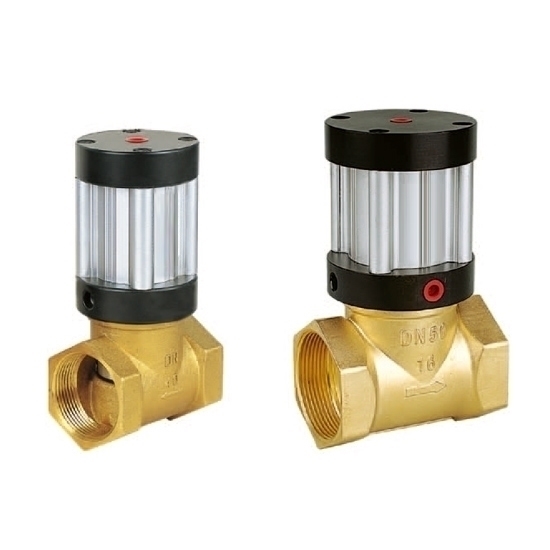

2" Air Control Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$184.85

Ex Tax: $184.85

Stock: In Stock
Model: RDDLZ-ACV-50
Weight: 1.00
SKU: RDDLZ-ACV-50

Available Options

Short Description

Type

Sealing Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This control valve cannot be used for drinking water.

2 inch 2 way air control valve for sale online. It is a pneumatic control valve that compresses air to control the flow of fluid or gas through pipes or conduits. Cheap air-operated valve is widely used in food and medicine fields, industrial fields, and automobile manufacturing.

Specifications

Model: RDDLZ-Q22HD-50
Nominal Diameter: DN50
Connecting Thread: ZG2"
Actuator: Pneumatic Actuator
Type: 2 Way, 2 Position
Product Form: Normally Closed
Working Pressure: 0~1.0Mpa
Valve Body Material: Brass
Sealing Material: VITON/PTFE
Medium Temperature: VITON: -5~150℃, PTFE: -10~180℃
Flow Coefficient KV Value: 40
Weight: 2.168kg
Working Medium: Air, Water, Oil, Liquefied Petroleum Gas, and Fluid with Light Dynamic Viscosity

Dimensions (Unit: mm)

A	B	C	D	H	M
102	66	80	ZG2"	180	G1/8"

Applications

The air control valve has low starting pressure, high closing sensitivity, good sealing performance, and arbitrary import and export directions, widely used in food, medicine, industry, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment.

Tips: What is a 2 way air control valve?

2-way air control valve is a type of valve that is designed to control the flow of fluids in a system. It is called a "two-way" valve because it has two ports, one for the inlet of fluid and one for the outlet. When the valve is energized with compressed air, it opens the valve and allows fluid to flow through it. When the valve is de-energized, it closes the valve and stops the flow of fluid.

2 way air control valves are commonly used in a variety of applications, such as in pneumatic systems, HVAC systems, and industrial processes. They can be used to control the flow of fluids in either direction, depending on the design of the valve.
