1μF 50V Multilayer Ceramic Chip Capacitor

0 reviews • Write a review

from

$16.79

Ex Tax: $16.79

Stock: In Stock
Model: RDDLZ-MLCC-50V105K
Weight: 1.00
SKU: RDDLZ-MLCC-50V105K

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

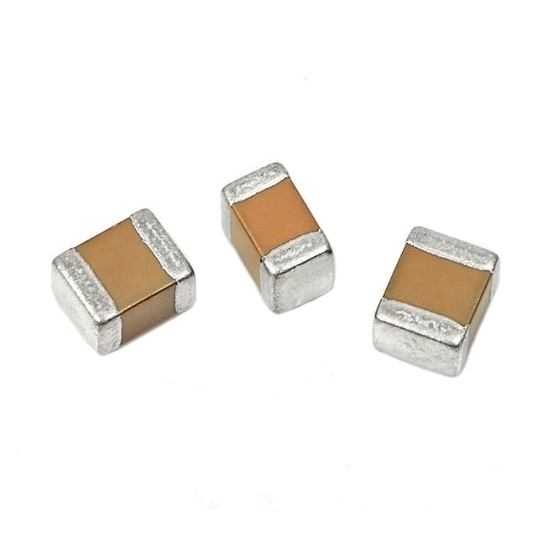

SMD Multilayer ceramic chip capacitor is stable and has high capacitance. Laminated monolithic structure, excellent solderability and solder resistance, MLCC capacitors are suitable for reflow and wave soldering, various filtering and coupling circuits.

Specification

Model: RDDLZ-50V105K0805
Series: Multilayer Ceramic Chip Capacitor
Capacitance: 1μF (1000000pF, 1000nF)
Rated voltage: 50V
Tolerance: 10%
Operating Temperature Range: -40℃ - 105℃
Lead Type: SMD
Size: 2mm
Thickness: 1.25mm

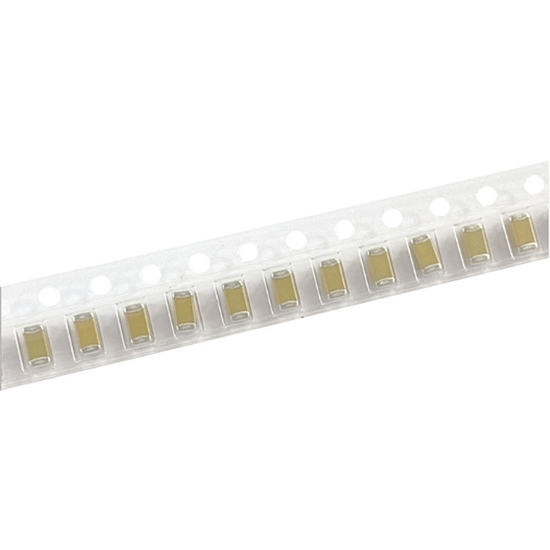

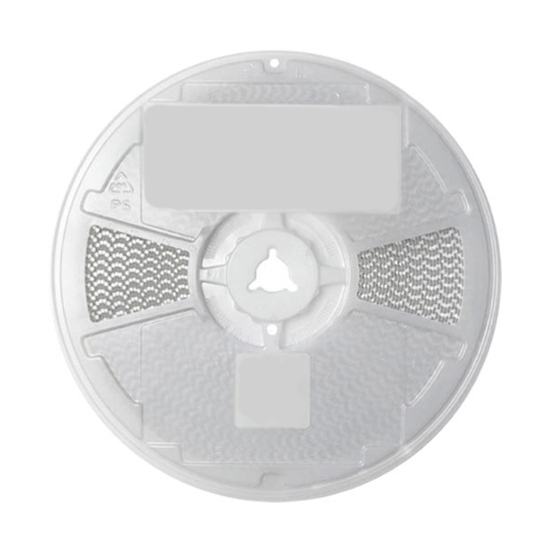

Package: 1000PCS / roll
Application: Household Appliances
Medium Material: Ceramic (Porcelain)
Loss: 0.01%
Weight: 0.3kg

Structure

Tips: Difference between low frequency ceramic capacitor and high frequency ceramic capacitor

Low frequency ceramic capacitors are limited to bypassing or blocking DC in circuits with lower operating frequencies, or occasions (including high frequencies) that do not require high stability and loss. Such capacitors should not be used in pulsed circuits because they are prone to breakdown by pulsed voltages.

High frequency ceramic capacitors are formed by spraying a special mixture with a concentration suitable for spraying into a thin film, and the dielectric is then sintered with silver layer electrodes to form a "monolithic" structure. High-frequency ceramic capacitors are suitable for high-frequency circuit mica capacitors. In terms of structure, it can be divided into foil type and quilt type. The silver-coated electrode is directly coated with a silver layer on the mica sheet by vacuum evaporation or sintering. Due to the elimination of the air gap, the temperature coefficient is greatly reduced, and the capacitance stability is also higher than that of the foil type.
