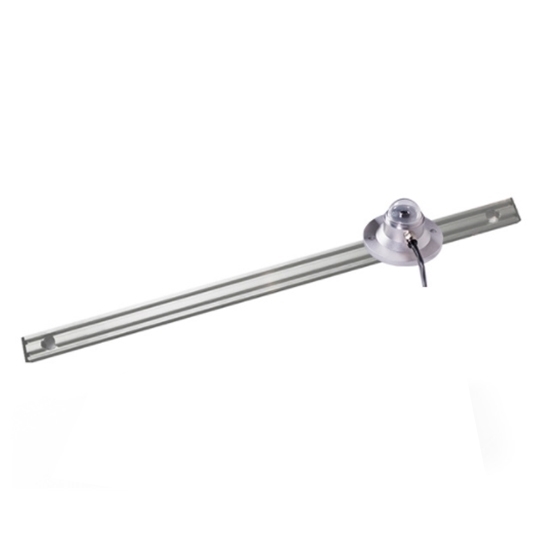

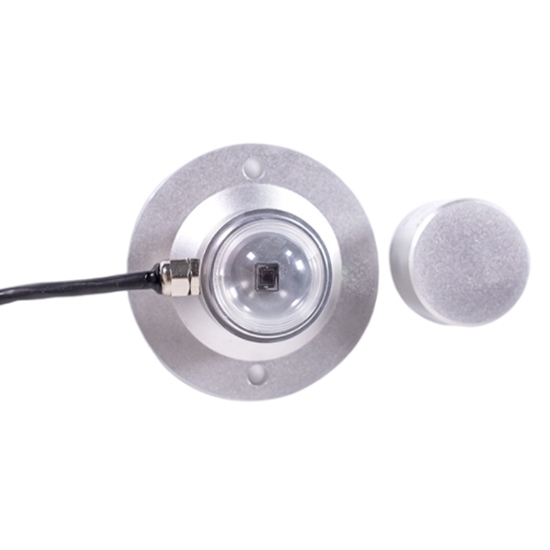

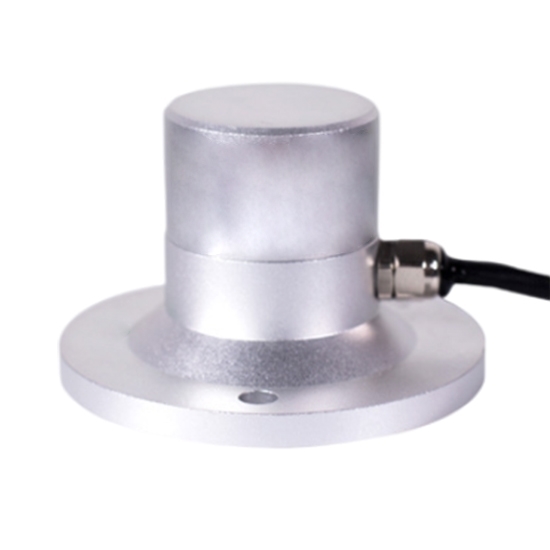

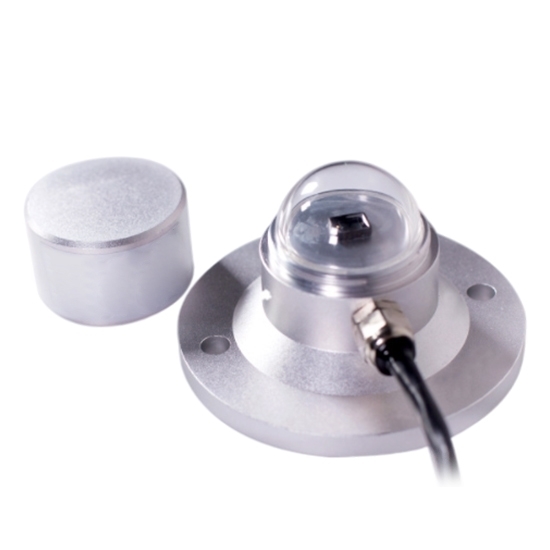

Solar Radiation Sensor, 300-1100nm

0 reviews • Write a review

from

$379.60

Ex Tax: $379.60

Stock: In Stock
Model: RDDLZ-RS-RK20004
Weight: 1.00
SKU: RDDLZ-RS-RK20004

Available Options

Voltage

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Solar radiation sensor is lightweight and easy to carry. Radiation sensor widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution.

Features:

It used as sunshine duration sensor.
High sensitivity and low power consumption.
Solar radiation sensor is designed on silicon-cell principle.
No moving parts, no maintenance, solar radiation sensor can work in any altitude.

Specification:

Model	RDDLZ-RK200-04
Spectral Range	300-1100 nm
Supply	5V, 12-24V DC
Range	0-1500 W/m²
Resolution	1 W/m²
Output	0-5V, 4-20mA, RS485
Response Time	≤ 5s
Cosine Correction	≤ ±10% (solar elevation angle=10°)
Non-linearity	< ±3%
Temperature Effect	±0.08%/℃
Stability	≤ ±2%/year
Operating Temperature	-40 ℃— +80 ℃
Ingress Protection	IP65
Weight (unpacked)	420 g
Shell Material	Aluminum alloy
Storage Condition	10 ℃—60 ℃, 20%—90% RH
Certification	CE
Warranty	12 months

Dimension (mm):

Application:

Tips: Working Principle of Solar Radiation Sensor

Economical solar radiation sensor is based on the principle of silicon cell design. If the sensor is facing down. It can measure reflected radiation and solar radiation incident on an inclined plane. Silicon battery is a new type of environmental protection battery, using a new mechanism of compound silicon salt as electrolyte. Silicon crystals are laminated into n-type and p-type layers, stacked on top of each other. Light striking the crystals induces the "photovoltaic effect" which generates electricity. The electricity produced is called direct current (DC) and can be used immediately or stored in a battery. Its energy characteristics, high current discharge characteristics, low temperature characteristics, service life, environmental performance are better than all kinds of lead acid battery, is the replacement of traditional lead acid battery products.
