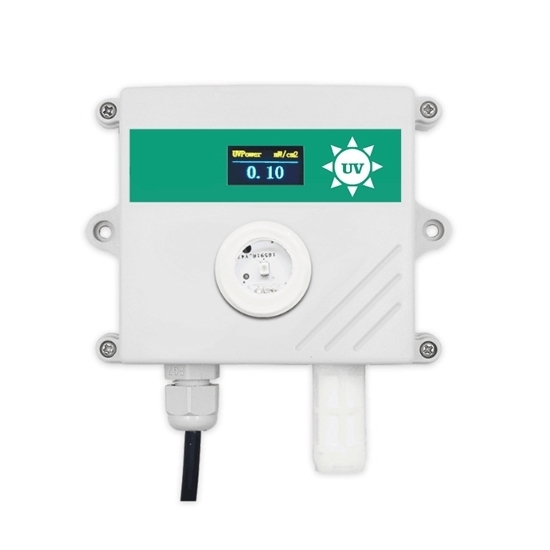

UV Light Intensity Sensor, 0-15mW/cm2

0 reviews • Write a review

from

$87.78

Ex Tax: $87.78

Stock: In Stock
Model: RDDLZ-RS-VMS
Weight: 1.00
SKU: RDDLZ-RS-VMS

Available Options

Short Description

Output Signal

Intensity Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The UV light intensity sensor measures 0-15mW/cm² in the 240-370nm range with ±10% accuracy at 365nm. It operates on 10-30V DC, supports 485 ModBus-RTU, and offers 4-20mA or 0-5V/0-10V outputs with a 0.2s response time.

Specification

Model	RDDLZ-VMS-UV-*-2
DC Power Supply (Default)	485 (ModBus-RTU Protocol)	DC10-30V
	0~10V	DC24V
	4~20mA / 0~5V	DC10-30V
Maximum Power	1.2W
Typical Accuracy	±10% FS (@365nm, 60%RH, 25°C)
UV Intensity Range	0~15mW/cm², 0~450 μW/cm²
Measurement Wavelength Range	Wavelength 240-370nm
Operating Environment	-40°C~+60°C, 0%RH~80%RH
Response Time	UV Intensity	0.2s
Output Signal	485 (ModBus-RTU Protocol)
	Current Output	4mA~20mA
	Voltage Output	05V / 010V
Load Capacity	Current Output	Load Capacity ≥600Ω
	Voltage Output	Output Impedance ≤250Ω

Features

High Sensitivity Sensor: Equipped with a high-sensitivity UV sensor, accurately measuring UV intensity within a wavelength range of 240-370 nm.
Premium Transmitting Materials: Made with high-quality light-transmitting materials for enhanced measurement accuracy and reliability.
OLED Display: Supports OLED screen for clear and real-time display of UV intensity and UV index, making monitoring more intuitive.
Durable, High-Protection Shell: Features a robust, waterproof, and dustproof exterior suitable for harsh outdoor environments, withstanding rain and snow.
Superior Anti-Interference: Designed to maintain accurate readings even in high-interference settings, ensuring stable performance.
High-Quality Sensor Components: Incorporates reliable, high-precision components for consistent and stable UV measurements.

Wiring Method

Category	Wire Color	Description
Power Supply	Brown	Power Positive (10~30V DC)
Power Supply	Black	Power Negative
Communication	Blue	UV Intensity Signal Positive
Communication	Green	UV Intensity Signal Negative

Application

Tips: What benefits does the OLED display offer on this UV sensor?

The OLED display provides a clear and immediate visual output of UV intensity and UV index values, making it easy to read data in real-time without additional devices. Unlike traditional LCDs, OLED displays offer better contrast, are viewable from wider angles, and consume less power, making them efficient for long-term use. The display also enhances usability by allowing users to see accurate readings even in dimly lit environments, which is particularly beneficial for both indoor and outdoor monitoring applications.
