PAR Sensor, 400-700 / 350-1100nm Radiation Sensor

0 reviews • Write a review

from

$496.85

Ex Tax: $496.85

Stock: In Stock
Model: RDDLZ-RS-RK200
Weight: 1.00
SKU: RDDLZ-RS-RK200

Available Options

Voltage

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

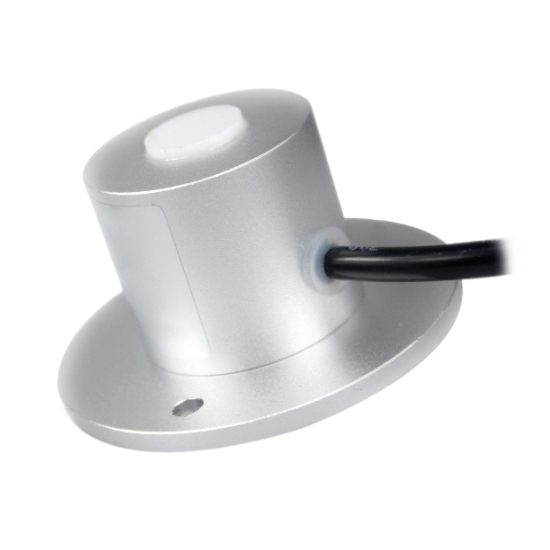

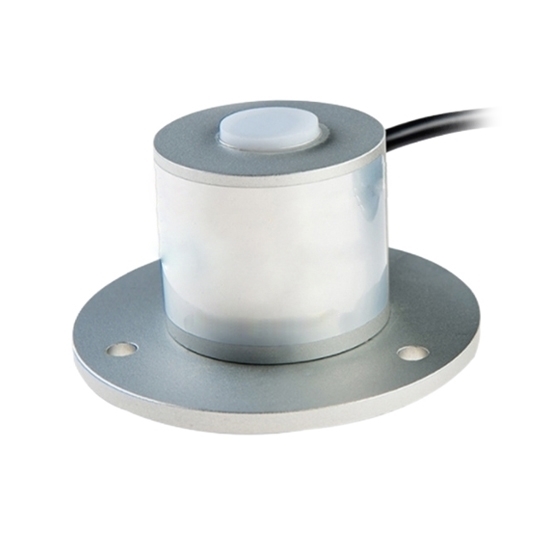

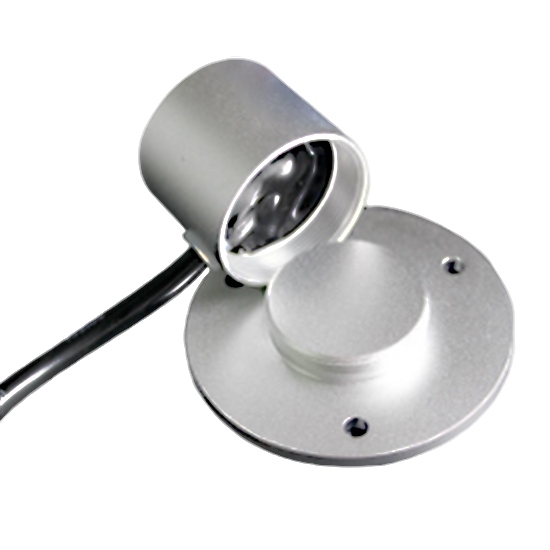

Photosynthetically active radiation sensor is mainly used for measuring solar radiation within 400-700nm wavelength. Upper and lower parts of the PAR sensor can be separated and a silicon photodetector is built in. Waterproof connector for inclement weather.

Features:

Compact size for easy use.
No power supply measurement.
PAR sensor with metal construction, shell material is aluminum alloy.
Photosynthetically active radiation sensor suits in harsh environment.

Specification:

Model		RDDLZ-RK200-02
Spectral Range	0-2500 μmol/m²s	400-700 nm
	0-2000 W/m²	350-1100 nm
Supply		5V DC, 12V-24V DC
Accuracy		±5% rdg
Range		0-2500 μmol/m²s, 0-2000 W/m²
Output		0-2000 mV	4-20 mA (2-wires)	RS485
Sensitivity	0-2500 μmol/m²s	800 μV/μmolm²*s	6.4 μA/μmolm²*s	/
	0-2000 W/m²	1000 μV/W/m²	8 μA/W/m²	/
Response Time		< 1s (99%)
Temperature Effect		< 0.05%/℃
Cosine Correction		< 10% (until 80°)
Non-linearity		< ±2%
Operating Temperature		-40 ℃— +80 ℃
Shell Material		Aluminum alloy
Storage Condition		10 ℃—60 ℃, 20%—90% RH

Dimension (mm):

Application:

Tips: What is Aluminum Alloy?

Aluminum alloy shell is a kind of shell made of aluminum alloy, including aluminum profile shell and aluminum die casting shell. In addition to the general characteristics of aluminum, aluminum alloy has some specific characteristics of alloy due to the different types and amounts of alloying elements. Good casting performance and plastic processing performance, good electrical and thermal conductivity, good corrosion resistance and weldability, can be used as structural materials. Aluminum alloy shell is made of aluminum alloy materials, because of high grade, can effectively improve the added value of products, can be widely used in the electronic industry, generally including aluminum profile shell and aluminum die casting shell. Aluminum shell is processed on the aluminum profile obtained by aluminum stretching, high flexibility, depth can be arbitrarily cut, convenience is incomparable to other types of shell.
