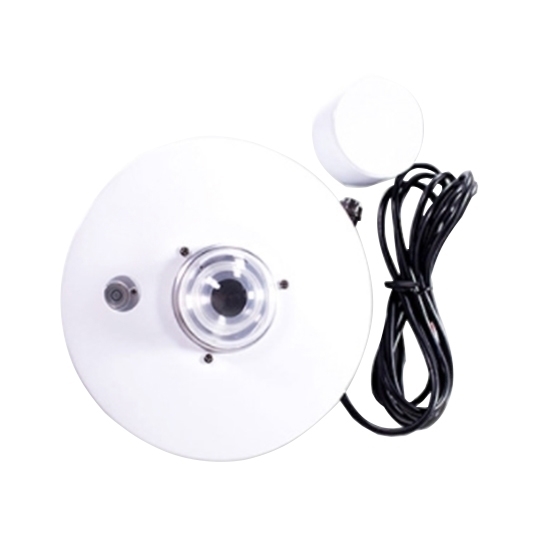

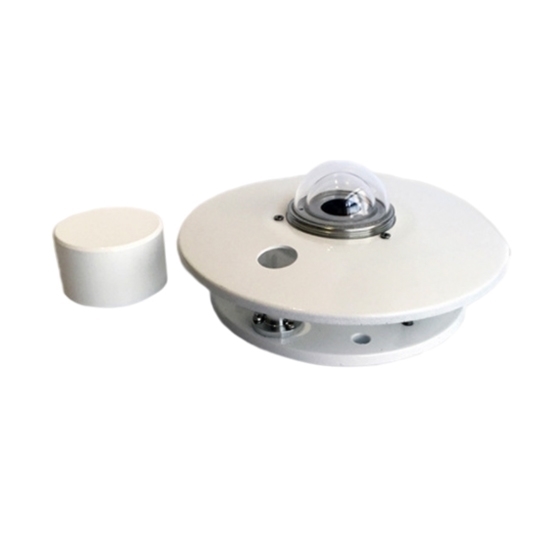

Pyranometer Sensor, 300-3000nm Radiation Sensor

0 reviews • Write a review

from

$773.31

Ex Tax: $773.31

Stock: In Stock
Model: RDDLZ-RS-RK20003
Weight: 1.00
SKU: RDDLZ-RS-RK20003

Available Options

Voltage

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Portable pyranometer based thermopile principle, with high sensitivity. Pyranometer price is affordable, high quality radiation sensor suits for harsh environment. Pyranometer conforms to the WMO standard, it can be used safely.

Features:

Pyranometer conforms to the WMO standard.
Pyranometer sensor suits in harsh environment.
Pyranometer with double transmission glass and visual desiccant window.

Specification:

Model	RDDLZ-RK200-03
Spectral Range	300-1100 nm
Supply	5V, 12-24V DC
Range	0-1500 W/m²
Resolution	1 W/m²
Output	0-5V, 4-20mA, RS485
Response Time	≤ 5s
Cosine Correction	≤ ±10% (solar elevation angle=10°)
Non-linearity	< ±3%
Temperature Effect	±0.08%/℃
Stability	≤ ±2%/year
Operating Temperature	-40 ℃— +80 ℃
Ingress Protection	IP65
Weight (unpacked)	420 g
Shell Material	Aluminum alloy
Storage Condition	10 ℃—60 ℃, 20%—90% RH
Certification	CE
Warranty	12 months

Dimension (mm):

Application:

Tips: How to Maintain the RDDLZ Pyranometer Sensor?

The pyranometer sensor shall be installed in the open air, and there shall be no shelter above the sensor during measurement.
The sensor connector should face north and be positioned horizontally before fixing.
Check the glass cover regularly and ensure it is clean.
Do not remove or loosen the glass cover to avoid affecting the accuracy.
Please make sure the desiccant has not expired.
If the desiccant changes color from orange to black, it should be replaced.
Replacement every six months is recommended. It's best to replace them every six months.
If there is heavy rain or hail for a long time, it is recommended to install a protective cover.
The sensitivity should be recalibrated every two years.
