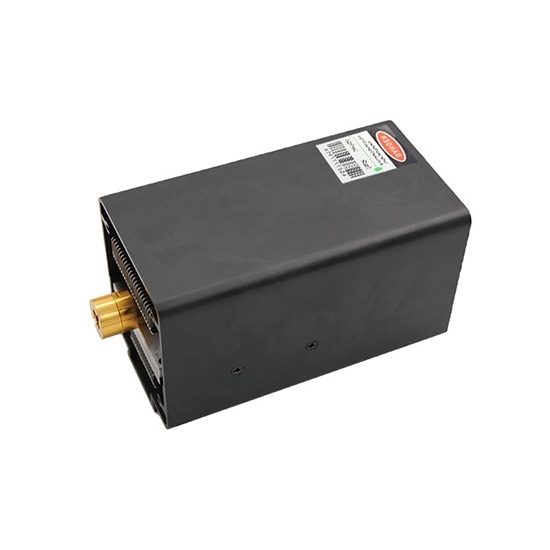

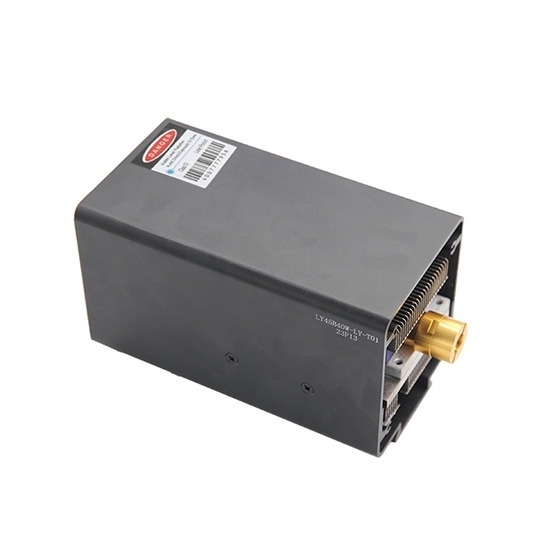

High-power laser modules can efficiently cut and engrave various materials, are suitable for industrial production and processing, and provide precise and fast processing results.

Features

• High power laser diode module is equipped with 8 fast axis compression laser diodes, providing high power and stability.
• The blue laser output reaches 40W, and the beam intensity is increased by compressing and combining 8 light sources.
• The focal length is 40mm, and the diameter of the light spot is less than 0.5mm, achieving high-precision engraving and cutting.
• It supports 24V power supply and PWM modulation, with fast heat dissipation and excellent performance.
• Able to carve and cut on various materials, from wood to metal, to present your design clearly.

Specification

Laser parameters can be customized, please contact us if you have any needs.

Dimension (mm)

Tips: The main differences between high-power laser modules and other laser modules

1. Energy output: High-power laser modules provide higher laser energy and are suitable for processing thicker materials or high-intensity processing.
2. Processing capabilities: High-power modules are capable of deeper cutting and finer engraving, and have a wider range of applications.
3. Heat dissipation design: High-power modules usually require better heat dissipation systems to maintain a stable operating temperature.
4. Application areas: High-power laser modules are mostly used in industrial manufacturing and heavy-duty processing, while low-power modules may be used for lighter applications or home use.
