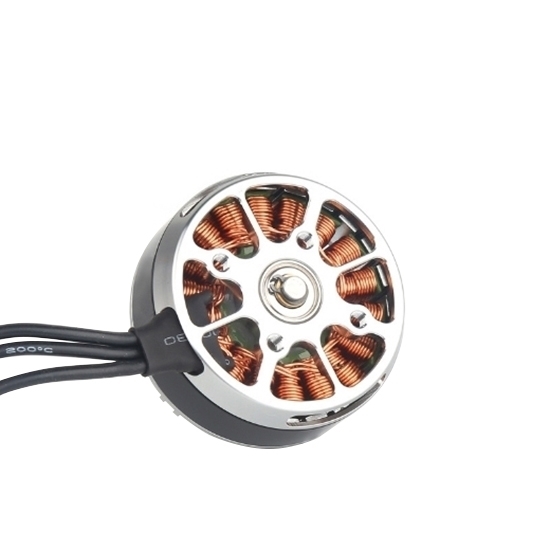

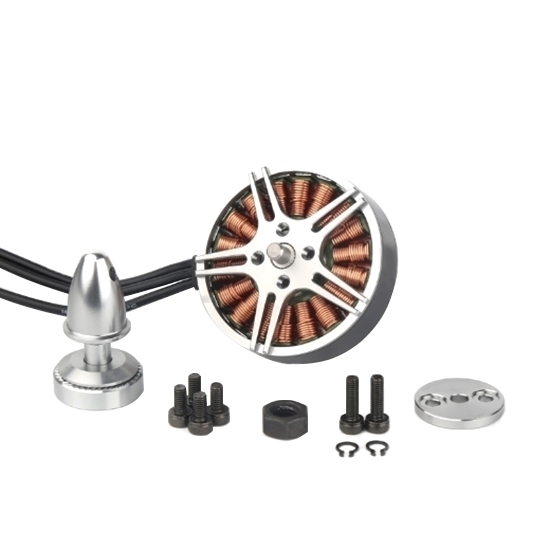

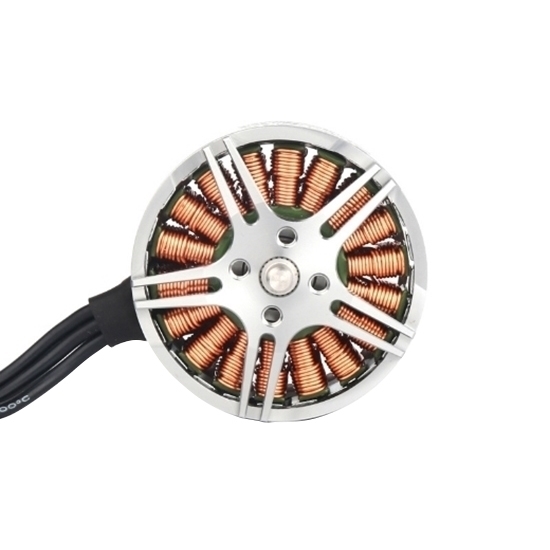

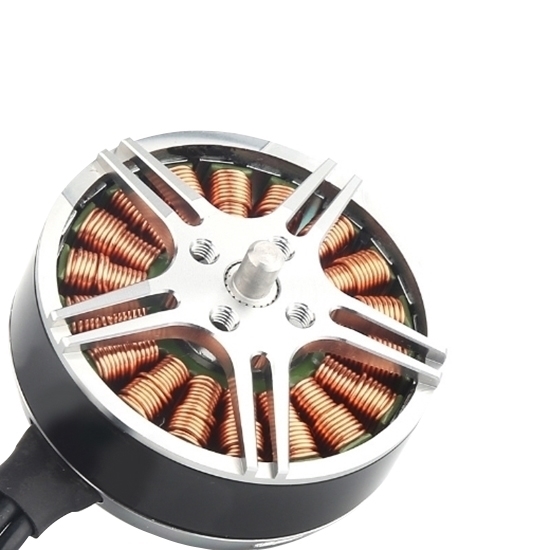

330KV Brushless Motor For Drone, 4S/6S

0 reviews • Write a review

from

$154.35

Ex Tax: $154.35

Stock: In Stock
Model: RDDLZ-BDM-330
Weight: 1.00
SKU: RDDLZ-BDM-330

Available Options

Speed

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price 4~6S brushless motor for a rotary-wing drone with a propeller, shaft diameter 4 mm, 330KV/ 600KV speed, good insulation and heat resistance, widely used in RC aircraft and drones.

Specifications

Model	RDDLZ-V4008
Motor KV	330	600
Number of Stator Slots	18	18
Number of Rotor Poles	24	24
Motor Size	φ44.3*28.5mm	φ44.3*28.5mm
Shaft Diameter	4.0 mm	4.0 mm
Motor Silicone Wire	20AWG 600mm	20AWG 600mm
Phase-to-Phase Internal Resistance	131mΩ	75mΩ
Motor Weight (Including Wires)	105g	104g
Rated Voltage (Lipo)	4-6S	4S
No-Load Current	0.5A/10V	0.8A/10V
Maximum Continuous Power	500W	480W
Maximum Continuous Current	20A/30s	30A/30s
Recommended ESC	30-40A	40A
Recommended Propeller	CN125/CN135/C155.5/CN176.2	CN135/CN155.5

Features

330KV/600KV brushless motor is designed for long-flight time multi-rotors. These motors can produce enough torque at low RPM and work at peak efficiency during flight.
With the guarantee of strength, the caps of brushless motors are highly hollow-cutted to save weight, so these motors can reach the maximum thrust-to-weight ratio and gain more flight time.
The brushless drone motor series uses a patented Stepped and knurled design that not only efficiently prevents motors from getting loose, but also reduces the probability of malfunction and unstable output power.

Dimensions (Unit: mm)

Tips: Why do drones use a 330KV brushless drone motor?

Drones use 330KV brushless DC motors because they produce higher torque for the same weight compared to brushed motors. Or the thrust-to-weight ratio is more like a brushless motor than a brushed motor.
