10kVA Single Phase 240v 50Hz To 120v 60Hz Converter

0 reviews • Write a review

from

$4,676.59

Ex Tax: $4,676.59

Stock: In Stock
Model: HZ-50-1110
Weight: 1.00
SKU: HZ-50-1110

Available Options

Input Voltage (Single Phase)

Output Frequency

Used (1pc, 99% new, USA only)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

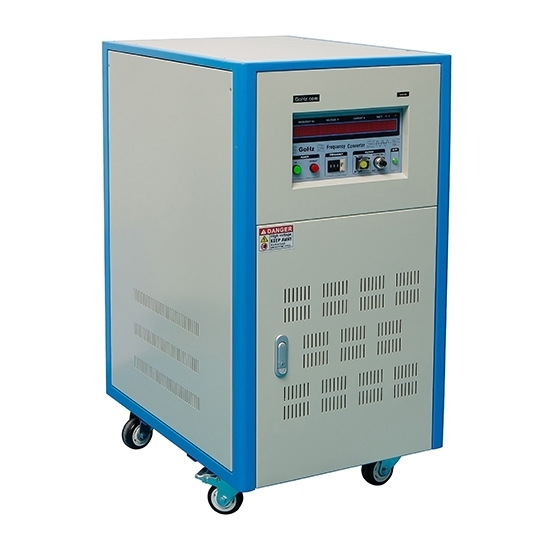

10 kVA static frequency converter (AC power supply), convert 50Hz to 60Hz, also change 220V/230V/240V (e.g. China) to 110V/120V (e.g. Hawaii), reliable power frequency changer, manufacturer direct sales.

Specification:

Model	HZ-50-1110
Capacity	10 kVA
Dimension	680 (D)500 (W)970 (H) mm
Weight	130 kg
Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 83.2A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 41.6A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

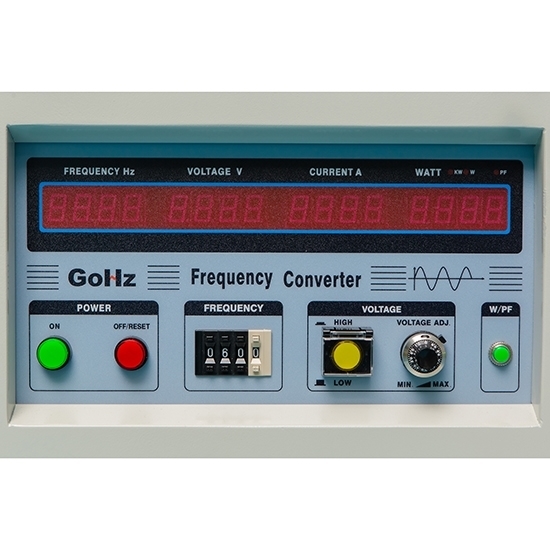

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

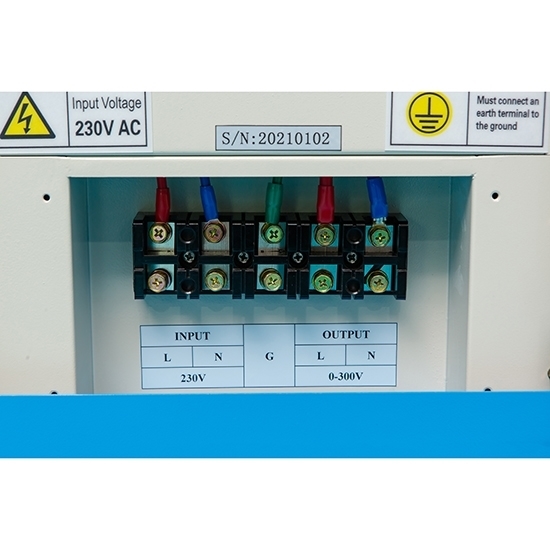

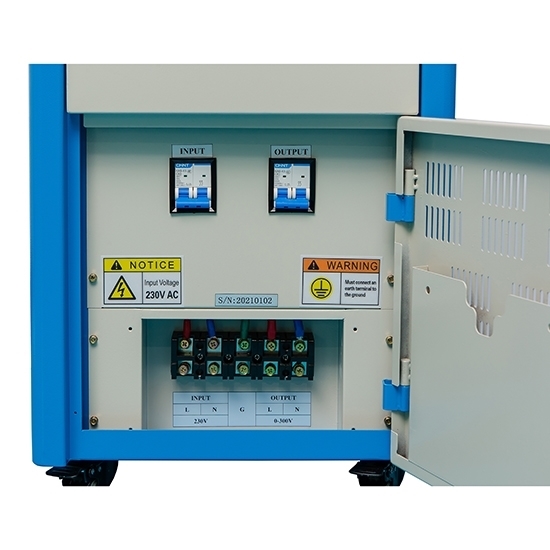

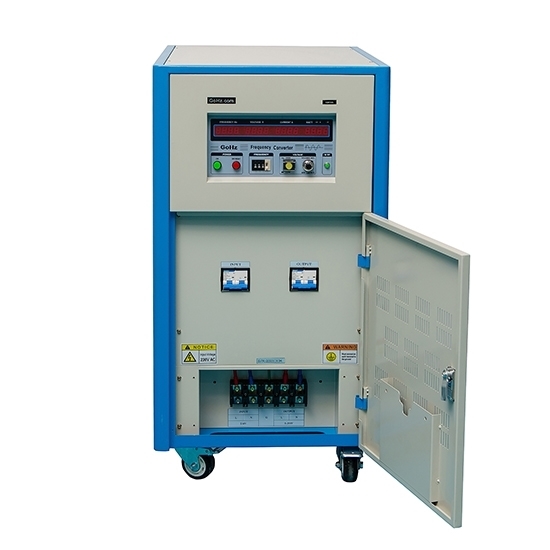

Wiring and Testing a Single Cabinet Frequency Converter

Here is a video about the operating steps of the cabinet frequency converter. This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter.

Tips: The difference between VFD and frequency converter

Variable frequency drive conforms to the speed regulation characteristics of the motor. One single set of VFD can only be equipped with one motor, so that it can not be used as the power source.
Frequency converter simulates the power grid to supply electricity, and is superior to the grid quality.
The VFD output the impulse wave, has high harmonic wave but no sine wave, which can cause the abnormality of the load control circuit.
The output of AC frequency converter equipped with isolation transformer, inductance, and capacitor filtering, outputs pure sine wave.
