15kVA Single Phase 120v 60Hz To 230v 50Hz Converter

0 reviews • Write a review

from

$5,615.52

Ex Tax: $5,615.52

Stock: In Stock
Model: HZ-50-1115
Weight: 1.00
SKU: HZ-50-1115

Available Options

Input Voltage (Single Phase)

Output Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

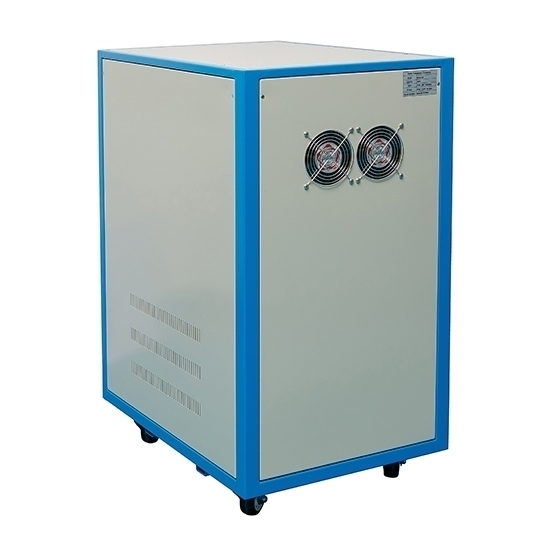

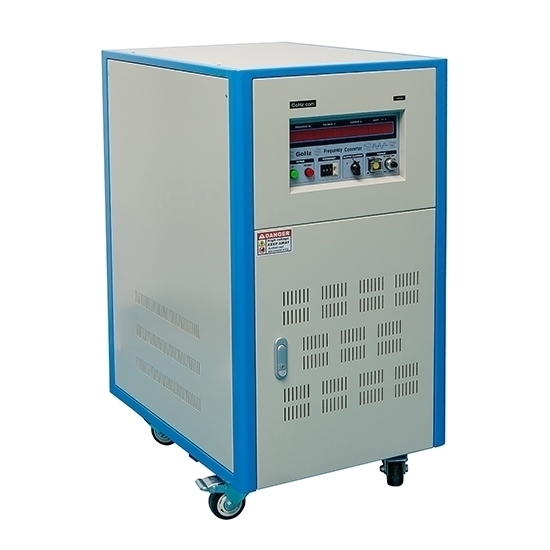

Highly reliable 15 kVA solid state frequency converter, 220V/230V/240V 50 Hz input to 110V/120V 60 Hz output (vice versa), make international 50/60 Hz power system compatible easily.

Specification:

Model	HZ-50-1115
Capacity	15 kVA
Dimension	680 (D)500 (W)970 (H) mm
Weight	150 kg

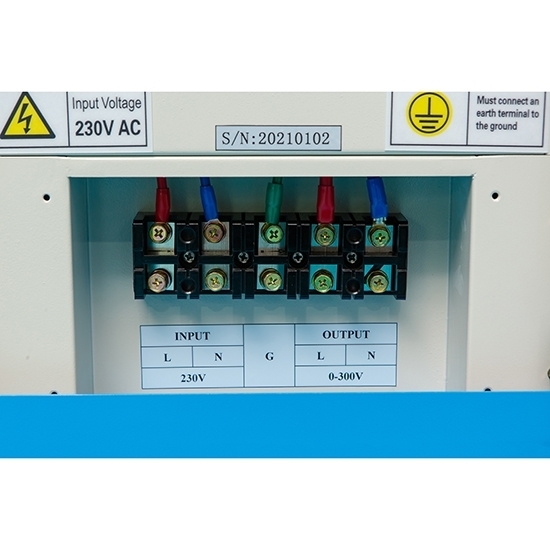

Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 125A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 62.5A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

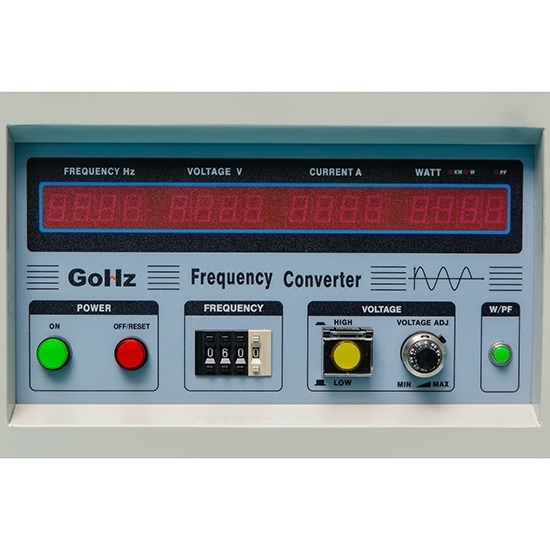

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W

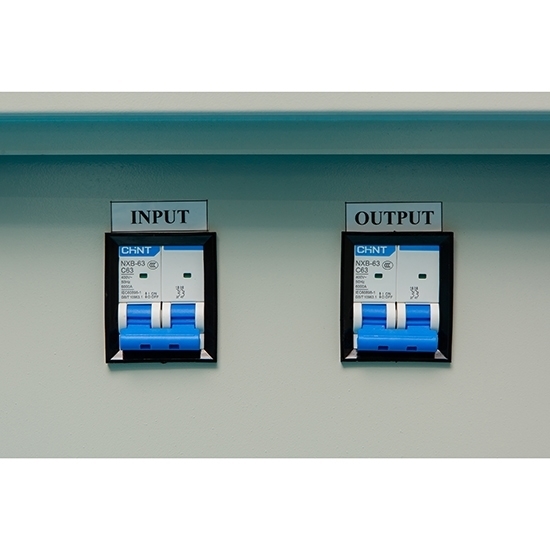

Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

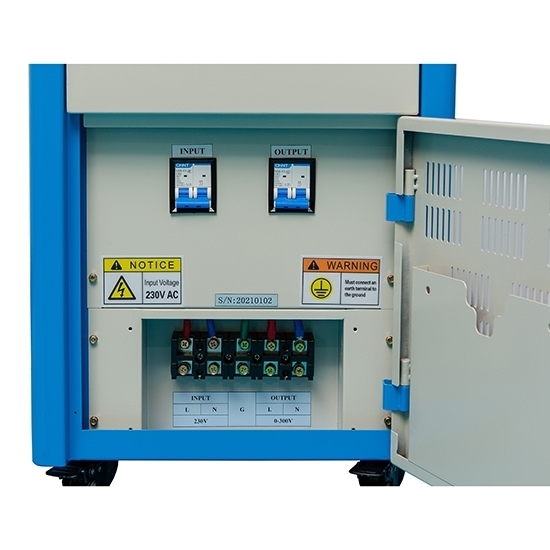

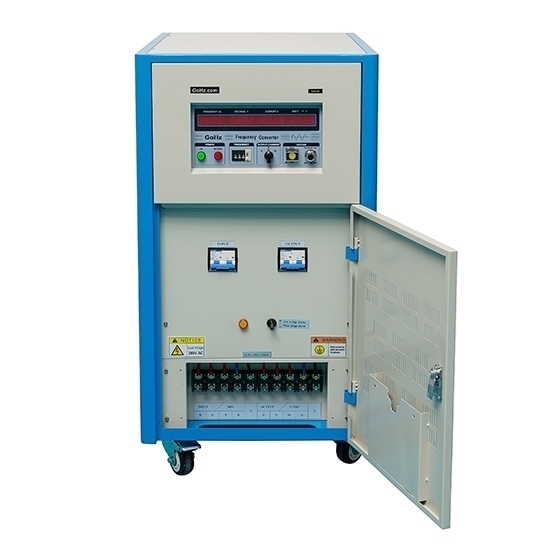

Wiring and Testing a Single Cabinet Frequency Converter

Here is a video about the operating steps of the cabinet frequency converter. This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter.

Tips: Influence of 50Hz 60Hz frequency exchange to rotating equipment

It mainly discusses the rotating body of the motor. For instance, when the 60Hz motor is connected with 50Hz power supply, under the premise of unchanged voltage, it can be known that the rpm reduces for 1.2 times when the frequency lowers for 1.2 times, the magnetic flux increases for 1.2 times, the no-load current increases. As the reactance value decreases, the starting current increases accordingly. If the voltage of the power supply is not reduced, the motor output torque will be increased. The temperature rise of the motor winding will rise. As a result, the motor might be damaged after being operated for a long period. Meanwhile, because of the breakage of the motor revolving speed, its air circulation decreases, resulting in the reduced ventilation quantity and weakened heat dispersion.
