2kVA Single Phase 110v 60Hz To 230v 50Hz Converter

0 reviews • Write a review

from

$2,272.98

Ex Tax: $2,272.98

Stock: In Stock
Model: HZ-50-1102
Weight: 1.00
SKU: HZ-50-1102

Available Options

Input Voltage (Single Phase)

Output Frequency

Textarea

Enclosure

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 kVA solid state frequency converter (AC power supply), converting 60Hz to 50Hz, also changing 110V/120V to 220V/230V/240V, reliable power frequency changer with pure sine wave output.

Specification:

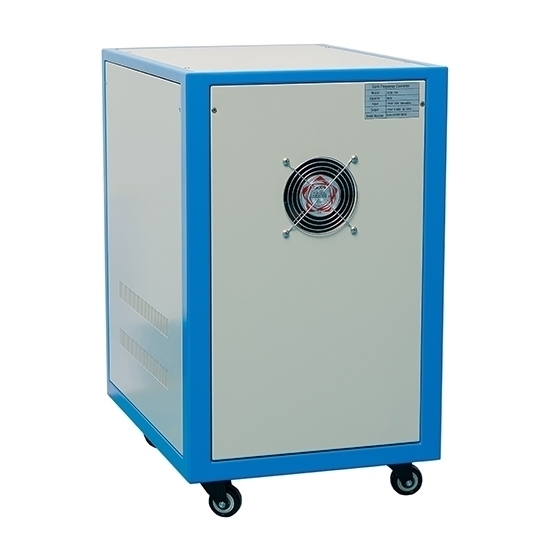

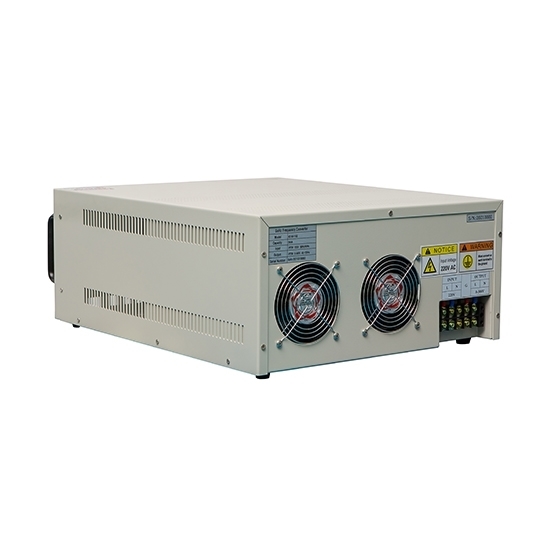

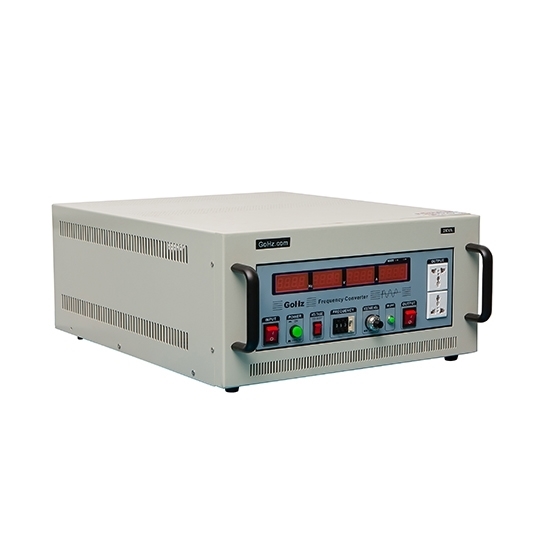

Model	HZ-50-1102 (Cabinet Type), HZ-60-1102 (Benchtop Type)
Capacity	2 kVA
Dimension	Benchtop Design	590 (D)490 (W)230 (H) mm
Dimension	Cabinet Design	550 (D)400 (W)670 (H) mm
Weight	Benchtop Design	49 kg
Weight	Cabinet Design	60 kg
Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 16.8A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 8.4A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Features and Safe Usage Guide

Here is a video that shows you the main features of RDDLZ single phase frequency converter and how you can use it to effectively and safely power electric equipment.

Tips: Can the Variable Frequency Drive be used as the Frequency Converter?

Question: Can the VFD be used as the AC Power supply?
Answer: No. Because in practical application, the main application of the VFD is for the speed regulation of the motor. Moreover, it can only be equipped with one motor. Therefore, the variable-speed drive can not be used as the frequency converter. In addition, the AC frequency converter is exclusively designed and manufactured for import and export equipment, converts a basic fixed-frequency, fixed voltage sine-wave power to a variable-frequency, variable-voltage output, conforms to the power supply system of Europe and America. Thus can be used as the power supply of the import electricity equipment and production line, or the test power source of the import and export electrical product.
