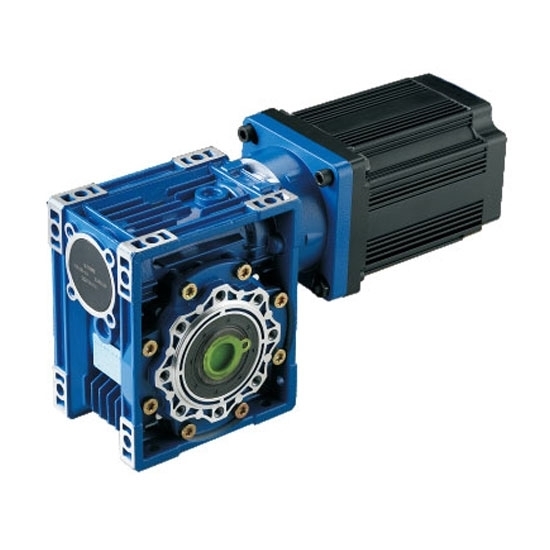

Buy 200 W worm gear motor at best price. This BLDC gear motor is best for new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.

Specification

Allowable Torque with Gear Head

Note:

• This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
• The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

Dimensions (Unit: mm)

Mounting screws are included with gearhead

Speed-Torque Curve

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short time operation area
  The motor can run at a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Details

Tips: The functions of worm gear reducer motor

The application of worm gear motor can be seen in the application of worm gear motor from the transmission of large power to small load and precise angle transmission. In industrial applications, the worm gear motor has the function of reducing speed and increasing torque. Therefore, it is widely used in speed and torque conversion equipment.

The main functions of the worm gear motor are:

• Reduce the speed and increase the output torque at the same time. The torque output ratio is the motor output multiplied by the reduction ratio, but it should be noted that the rated torque of the reducer cannot be exceeded.
• Deceleration reduces the inertia of the load at the same time, and the reduction in inertia is the square of the reduction ratio.
