100 W DC Worm Gear Motor, 12V/24V/48V

0 reviews • Write a review

from

$484.27

Ex Tax: $484.27

Stock: In Stock
Model: RDDLZ-GEAR-W100
Weight: 1.00
SKU: RDDLZ-GEAR-W100

Available Options

Short Description

Gear Ratio

Voltage (DC)

Controller for 24V Motor

Controller for 36V Motor

Controller for 48V Motor

Controller for 12V Motor

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

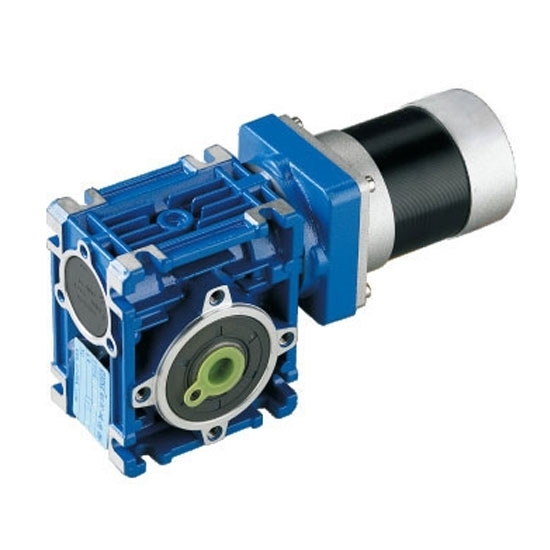

100 W DC worm gear motor works at 2000 rpm rated speed, choosing gear ratio from 7.5:1 to 80:1. Worm gearbox drives BLDC motor with high torque and low noise at 12V, 24V, 36V or 48V.

Specification

Motor Model	RDDLZD2BLD100-12A	RDDLZD2BLD100-24A	RDDLZD2BLD100-36A	RDDLZD2BLD100-48A
Motor Type	BLDC Motor
Power	100W
Voltage	12V DC	24V DC	36V DC	48V DC
Rated Current	10.42A	5.21A	3.47A	2.60A
No Load Current	＜1.2A	＜0.8A	＜0.6A	＜0.4A
No Load Speed	2800 rpm
Rated Speed	2000 rpm
Rated Torque	0.32N·m
Peak Torque	0.96N·m
Motor Dimension	57mm
Shaft Diameter	11mm
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Certificate	CCC, CE, ROSH, LVD, EMC
Gear Ratio	7.5, 10, 15, 20, 30, 40, 50, 60
Recommended Drive Model	RDDLZ-BLD300B	RDDLZ-BLD300B	RDDLZ-BLD300B	RDDLZ-BLD300B
What Parameters of RDDLZ Worm Gear Motors Can Be Customized?
Power	Yes
Voltage	Yes
Speed	Yes
Shaft	Yes
Motor Length	Yes
Motor Lead	Yes

Allowable Torque with Gear Head

Gear Ratio	7.5	10	15	20	25	30	40	50	60	80
Rated Output Speed (rpm)	267	200	133	100	80	67	50	40	33	25
Rated Output Torque (Nm)	2.9	3.8	5.7	7.4	9.1	10.6	13.4	12	17	12

Note:

This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

Dimensions (Unit: mm)

Mounting screws are included with gearhead

Speed-Torque Curve

Instantaneous maximum torque line
The maximum torque momentarily impacts the load when the motor is started.
Beyond this torque, the over-current protection of the driver will cause the motor to stop.
Short time operation area
The motor can run at a short time within this torque range at different speeds.
If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
Rated operating torque line
The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
Continuous operating area
When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Details

Tips: How to maintain the DC worm gear motor?

Don't hammer the worm gear motor housing by gravity to avoid damage.
Regularly check whether the installation foundation, seals, drive shaft, etc. are normal. If an abnormal phenomenon occurs, stop the machine immediately for inspection and troubleshoot.
Try to avoid direct sunlight and harsh conditions for the worm gear motor.
Good ventilation should be provided to ensure the normal heat dissipation of the worm gear motor.
Use recommended lubricating oil.

The above methods can extend the life span of the worm gear motor to a certain extent.
