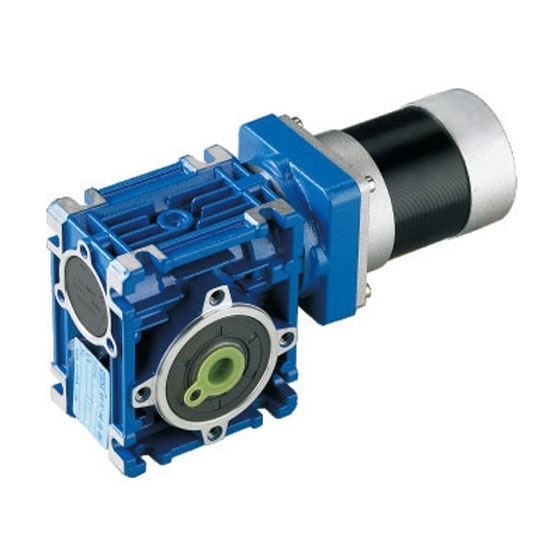

Low cost 150W 3 phase DC motor with worm gearbox, 12V, 24V, 36V or 48V are available. This BLDC gear motor is best for new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.

Specification

Allowable Torque with Gear Head

Note:

• This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
• The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

Dimensions (Unit: mm)

Mounting screws are included with gearhead

Speed-Torque Curve

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short time operation area
  The motor can run at a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Details

Tips: How to fuel worm gear motor correctly?

The normal operation of the worm gear motor needs to rely on lubricating oil. Correct refueling can make the equipment use more reliable and have a longer service life. When the oil is consumed, it should be replenished in time to allow the equipment to continue working. During operation, the worm gear, an important internal part, will drive the lubricating oil to run together. In this case, you can always judge the remaining amount of lubricating oil. If the oil level line of the lubricating oil is lower than the oil window 2/3, it indicates that the lubricating oil is insufficient and needs to be added.

However, sometimes, when the worm gear motor is running, it may be different from the actual oil amount when judging the remaining oil amount. In order to correctly determine the amount of remaining oil, it is necessary to observe when the equipment is terminated. At the same time, when adding lubricating oil, it cannot be added in its operating state, but needs to be added in its terminated state.
