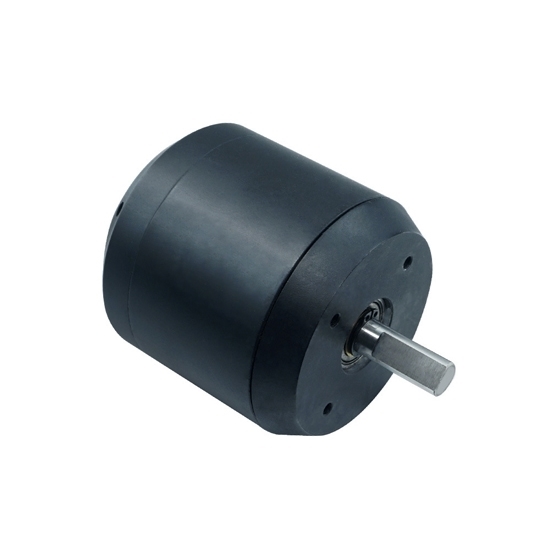

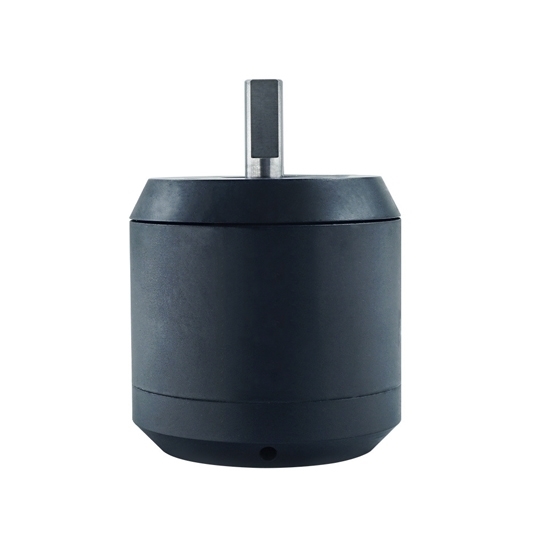

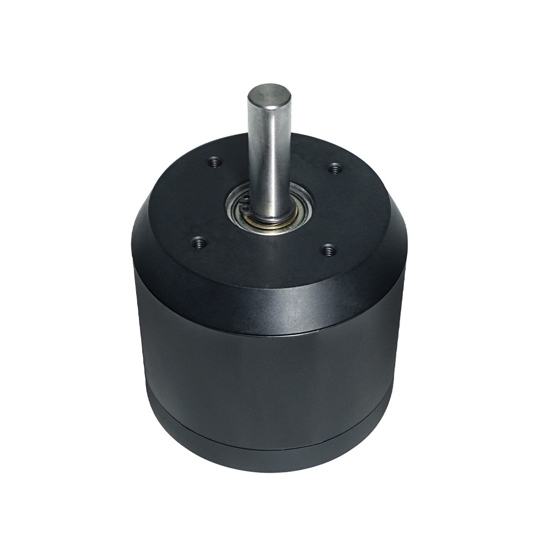

4300W 110KV 6-18S Outrunner Brushless Motor For Skateboard

0 reviews • Write a review

from

$381.71

Ex Tax: $381.71

Stock: In Stock
Model: RDDLZ-BLDC-ES4300
Weight: 1.00
SKU: RDDLZ-BLDC-ES4300

Available Options

Shaft Type

Rotation Speed KV

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

4300W outrunner BLDC motor at affordable for sale. Double bearing at the bottom and single bearing at the top make the structure of the BLDC motor more stable. 9.5 N.m torque and 4300W power outrunner brushless motor widely used in elecrtic skateboard.

Specification:

Model	RDDLZ-BLDC-7070
Rated Voltage	36V
Max Power	4300W
Max Current	100A
Motor Wire	320 mm 12 AWG
Battery Model	6-18S
Shaft Length	10 mm D-shaft
Max Torque	9.5 N.m
Bullet Connector	4 mm
Rotation Speed KV (RPM/V)	110 KV
Internal Resistance	0.055 OHM
Motor Size	70*70 mm
Motor Weight	1.2 kg

Structure:

ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.7 VESC6.6 single drive integration*	Continuous 70A, peak 200A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Why Use Phenolic Epoxy Resin in Outrunner BLDC Motor?

Strong adhesion, high mechanical strength. Because there are many polar groups in the molecule, such as hydroxyl (-OH) and ether group (-O-). Due to the polarization of these groups, the epoxy resin molecules and adjacent surfaces produce electromagnetic suction, and the epoxy group and the metal surface containing active hydrogen form a chemical bond bond is very strong, therefore, the bonding force is particularly strong.
Good corrosion resistance. Phenolics and polyesters are not alkali resistant, while epoxy resins are better alkali resistant, and have good corrosion resistance to acids and organic solvents.
Good heat resistance. The thermal deformation temperature is higher than polyester. Especially for hot curing products, by changing the curing agent, the hot deformation temperature can be greatly increased.
Good electrical insulation. It has good electrical properties in different temperature range, and can be used as F class insulating material in motor.
