750W Hydraulic Electric Pump, 10000 Psi

0 reviews • Write a review

from

$678.06

Ex Tax: $678.06

Stock: In Stock
Model: RDDLZ-DYB-63A
Weight: 1.00
SKU: RDDLZ-DYB-63A

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

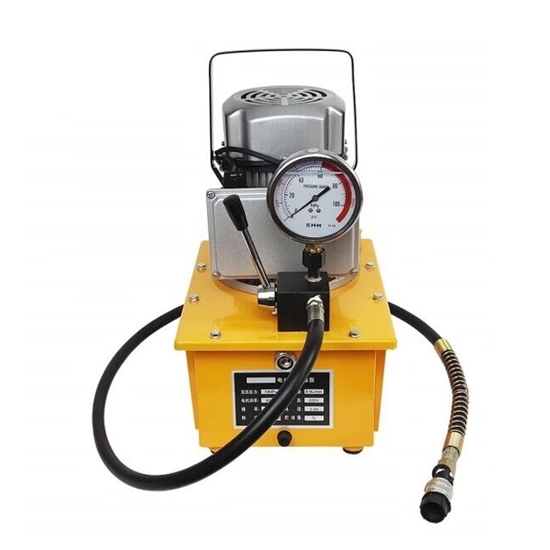

110V hydraulic pump for sale, equipped with 750 watt asynchronous motor, oil storage capacity 7 L, 10000 psi high pressure, aluminum housing, good resistance to oxidation.

Specification

Model: RDDLZ-DYB-63A

High Pressure: 10,000 psi (70 Mpa)

High Pressure Flow Rate: 0.9 L/min

Motor Power: 750W

Voltage: 110V / 380V

Frequency: 50Hz / 60Hz

Speed: 1400 rpm

Oil Storage Capacity: 7 L

Oil Type: ≤15# hydraulic oil

Weight: 21.4 kg

750W Hydraulic Electric Pump Structure

Hydraulic Electric Pump Dimension Drawing (Unit: mm)

Tips: What Causes Oil Leaks in Hydraulic Pumping Stations?

The spindle oil seal is damaged or the shaft is defective or scratched.
The internal leakage is too large, causing the pressure at the oil seal to increase, and the oil seal is damaged or flushed out.
The oil drain pipe is too thin and too long, causing oil leakage at the seal.
The external oil pipe of the pump is loose, the pipe joint is damaged, the gasket is aged or cracked.
The bolt of the variable adjustment mechanism is loose and the seal is damaged.
Cast iron pump casing has blisters or poor welding.
