20kVA Single Phase 220v 50Hz To 120v 60Hz Converter

Free Shipping

20kVA Single Phase 220v 50Hz To 120v 60Hz Converter

0 reviews • Write a review

from

$6,599.51

Ex Tax: $6,599.51

Stock: In Stock
Model: HZ-50-1120
Weight: 1.00
SKU: HZ-50-1120

Available Options

Input Voltage (Single Phase)

Output Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

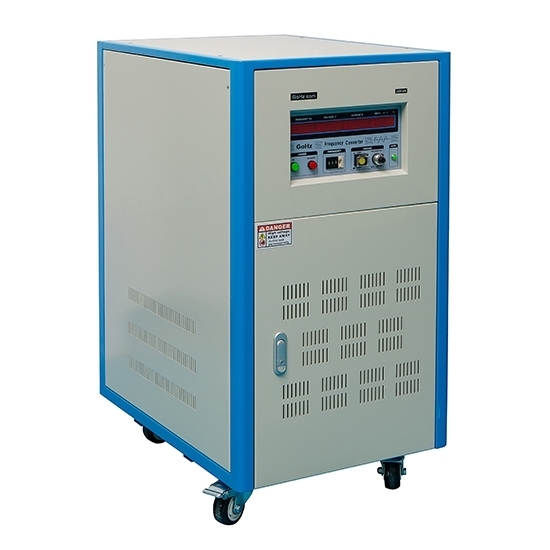

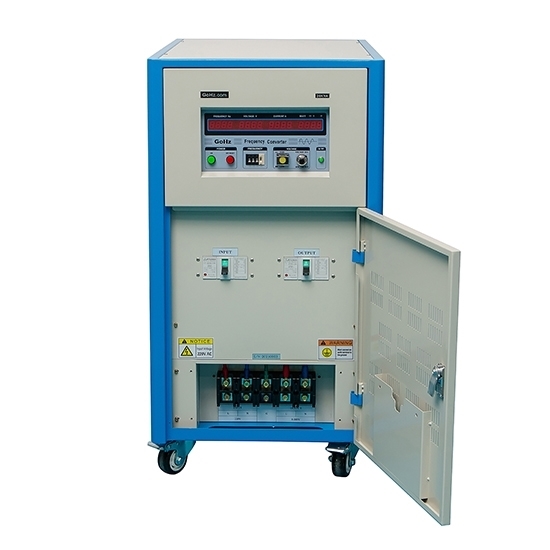

20 kVA pure sine wave frequency converter, changing 230V 50Hz to 110V 60Hz, or 120V 60Hz to 240V 50Hz, voltage and frequency converter for Europe and US home appliances.

Specification:

Model	HZ-50-1120
Capacity	20 kVA
Dimension	680500970mm
Weight	180 kg
Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 166.4A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 83.2A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

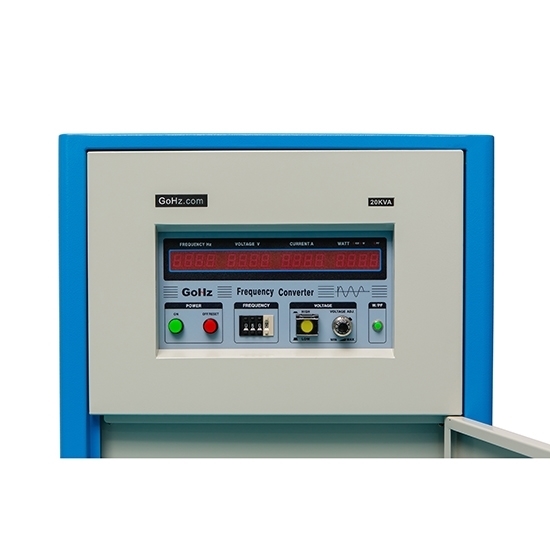

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

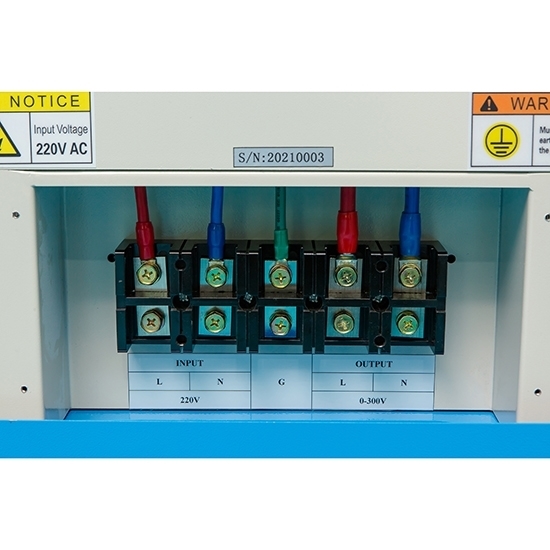

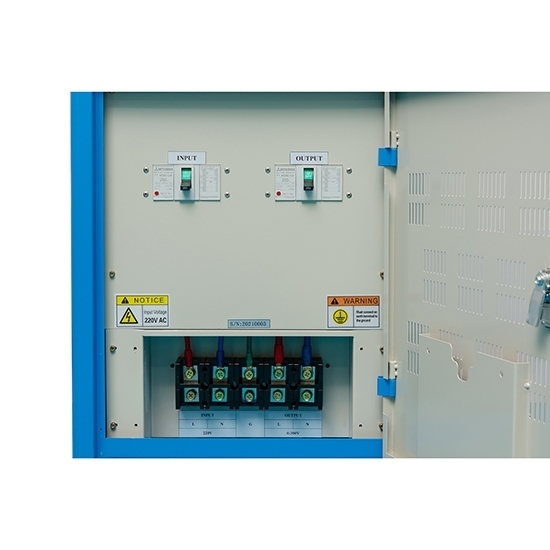

Wiring and Testing a Single Cabinet Frequency Converter

Here is a video about the operating steps of the cabinet frequency converter. This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter.

Tips: Frequency (50Hz and 60Hz) interchange will affect AC contactor

The impedance of small-size contactor is very small. Under the premise of ignoring impedance voltage drop, the electromotive force is in direct proportion. When the frequency turns from 50Hz to 60Hz, the induced electromotive force increases to 1.2 times, so the corresponding control voltage shall be increased to 1.2 times. In order to satisfy the suction requirement, it is required to increase the control voltage. Otherwise, insufficient suction will result in the bounce and bad contact of the relay, thus eventually causing damage.
