100kVA 3-Phase 380v 50Hz/460v 60Hz Frequency Converter

Free Shipping

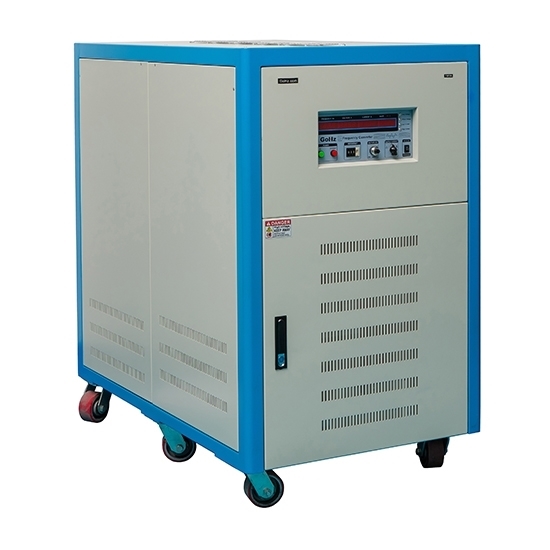

100kVA 3-Phase 380v 50Hz/460v 60Hz Frequency Converter

0 reviews • Write a review

from

$27,492.67

Ex Tax: $27,492.67

Stock: In Stock
Model: HZ-50-33100
Weight: 1.00
SKU: HZ-50-33100

Available Options

Input Voltage (Three Phase)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100 kVA frequency converter for converting 50 Hz to 60 Hz, 400 Hz, 3 phase input, single phase or three phase output, compatible with 3 phase 208V, 220V, 380V, 415V, 480V power system.

Specification:

Model	HZ-50-33100
Capacity	100 kVA
Dimension	15008601430 mm
Weight	760 kg

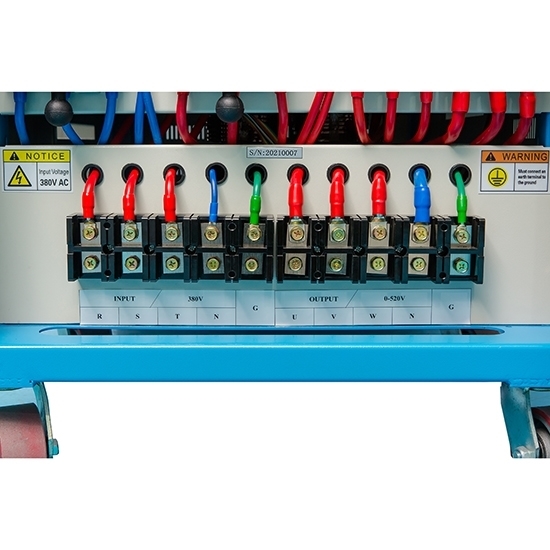

Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%

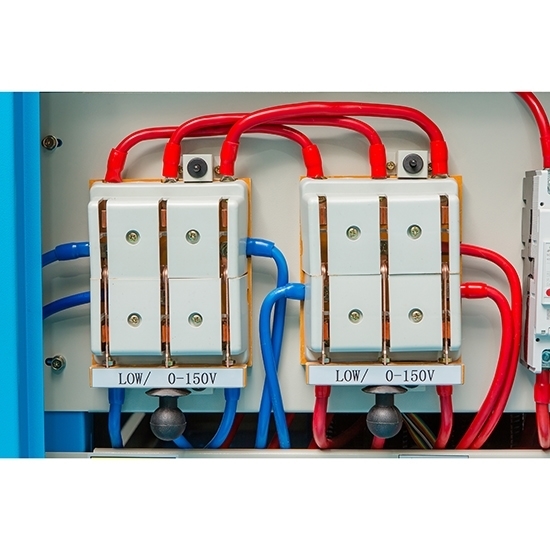

Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 277.6A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 138.8A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

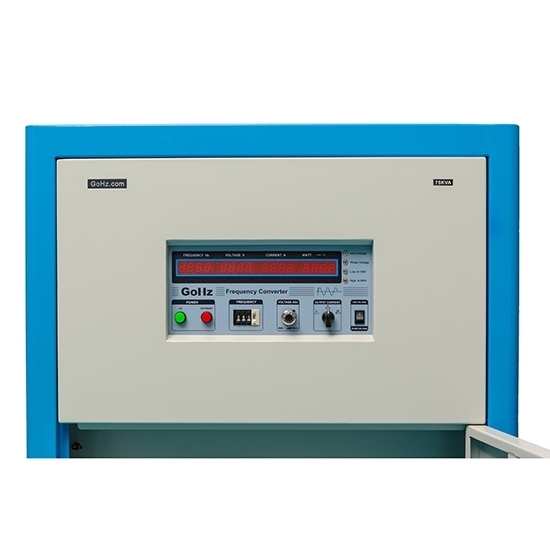

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months
