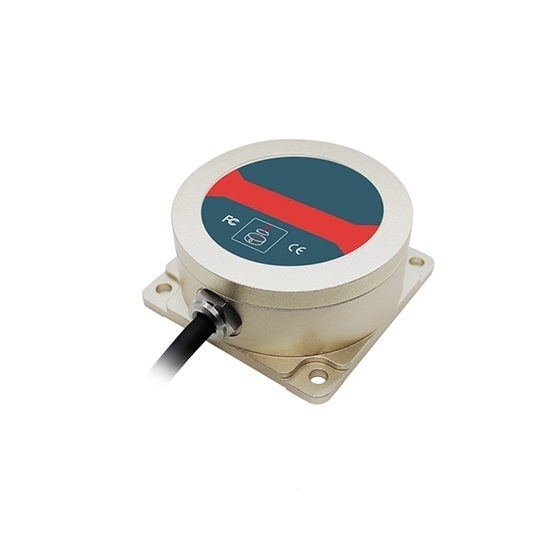

Angular Velocity Output Gyroscope Sensor, ±50°/ ±150°/ ±300°

0 reviews • Write a review

from

$1,004.13

Ex Tax: $1,004.13

Stock: In Stock
Model: RDDLZ-GS-TL632D
Weight: 1.00
SKU: RDDLZ-GS-TL632D

Available Options

Short Description

Output Signal

Measuring Range

Measuring Axis

Measuring Direction

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Angular rate sensor with good price, which featuring resolution 0.1°/ s, short starting time 5 ms. The gyro sensor is widely used in position control and attitude control of cars and moving objects, and other occasions requiring precise angle measurement.

Specification

Model	RDDLZ-TL632D-050	RDDLZ-TL632D-150	RDDLZ-TL632D-300
Measuring range	±50°	±150°	±300°
Temperature drift	<±0.2°/s/℃	<±1°/s/℃	<±3°/s/℃
Measuring axis	X, Y, Z (optional)
Bandwidth	>2000Hz
Resolution	0.1°/ s
Nonlinear	0.1% of FS
Starting time	5 ms
Input voltage	9-36V
Current	6mA
Working temperature	-40℃-85℃
Storage temperature	-55℃-100℃
Capacitive load	1000 Pf
Shock	5g-10g
Impact	200g pk, 2ms, 1/2 sine
Connector	5 pins air-plug, matched with 1m cable
Working life	10 years
Output rate	5Hz/ 15Hz/ 25Hz/ 50Hz/ 100Hz/ 300Hz can be set
Output signal	RS232/ RS485/ RS422/ TTL/ SPI
MTBF	≥50000 hours/ times
Iusulation resistance	≥100M
Anti-vibration	10grms, 10-1000Hz
Protection grade	IP67
Certificate	CE, FCC, RoHS
Warranty	12 months

Dimension (unit=mm)

Tips: What is Gyroscope Sensor?

Gyro sensors, also known as angular rate sensors or angular velocity sensors, are devices that sense angular velocity. The gyroscope sensor is a simple and easy-to-use positioning and control system based on free space movement and gestures. Flick the mouse on an imaginary plane, and the cursor on the screen will move accordingly, and you can draw circles around the links and click buttons. When you are speaking or leaving the table, these operations can be easily achieved. Gyro sensors were originally applied to helicopter models, and have been widely used in mobile and portable devices such as mobile phones.
