3.7 KW AC Servo Motor, 380V, 35 Nm/70 Nm, 1000 Rpm

0 reviews • Write a review

from

$1,659.45

Ex Tax: $1,659.45

Stock: In Stock
Model: ATO180ST-M35010
Weight: 1.00
SKU: ATO180ST-M35010

Available Options

Short Description

Rated Voltage

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

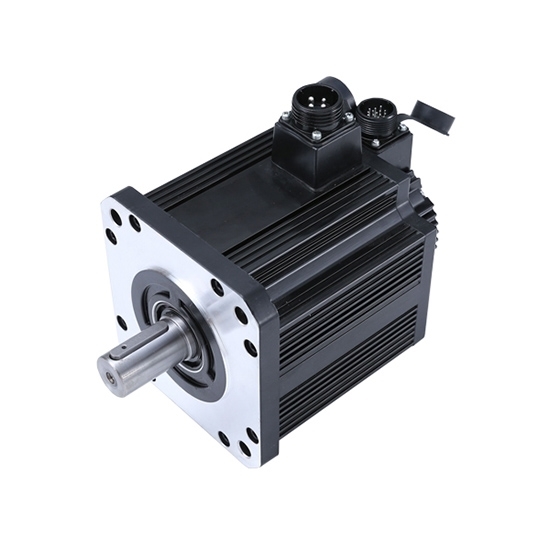

Brushless design servo motor is 3.7 kW power rating, 1000 rpm low speed, 35 Nm rated torque, peak torque to 70 Nm, 380V AC supply voltage input, equipped with 2500 PPR incremental encoder or absolute encoder.

Specification

Basics	Model	RDDLZ180ST-M35010
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	180 mm
	Rated Power	3.7 kW (5 hp)
	Rated Voltage	3-phase 380V AC (Optional: 220V AC)
	Rated Current	10 A
	Rated Speed	1000 rpm
	Rated Torque	35 Nm
	Peak Torque	70 Nm
	Weight	30.5 Kg
	Length	292 mm
Technical Parameters	Voltage Constant	223 V/ 1000r/ min
	Brake Voltage	24V DC
	Torque Coefficient	3.5 Nm/ A
	Torque Inertia	12.25 x 10^-3 Kg.M²
	Line-Line Resistance	0.93 Ω
	Line-Line Inductance	9.1 mH
	Electrical Time-Constant	9.78 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class F
	Safety Class	IP65
Environment	Temperature	-20℃~+40℃
Environment	Humidity	<90%RH, (no dewing)

Motor Dimension (unit=mm)

LA (without brake): 292mm, LA (with brake): 382mm

Details

Winding and Encoder Connection

1. For servo motor winding

motor Winding Plug	Motor Line	U	V	W	PE
motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
