100mm Magnetostrictive Displacement Sensor For Punching Machine

0 reviews • Write a review

from

$1,218.89

Ex Tax: $1,218.89

Stock: In Stock
Model: RDDLZ-MSR-A0100
Weight: 1.00
SKU: RDDLZ-MSR-A0100

Available Options

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

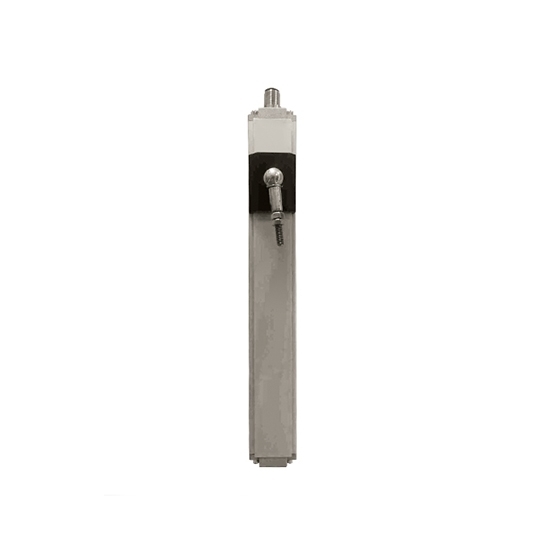

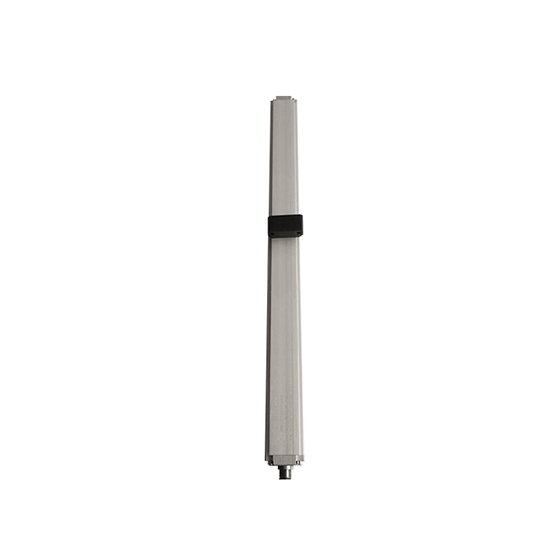

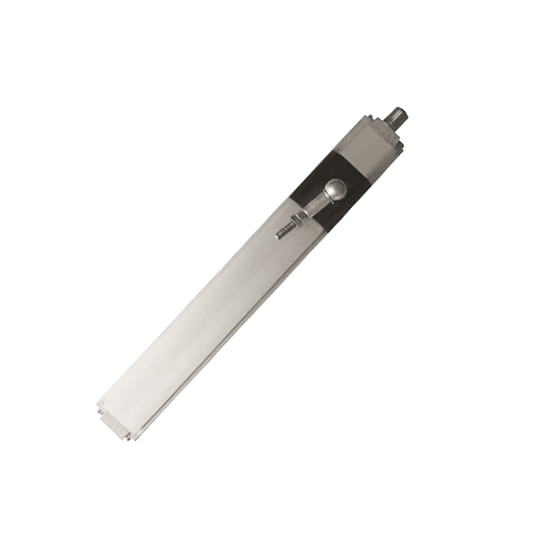

Magnetostrictive displacement sensor with measuring range 100mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Model	RDDLZ-CTH-A-100
Measuring Range	100mm
Output Signal	0~5V/ 0~10V/ 0~20mA/ 4~20mA (Optional)
Linearity	≤±0.05%FS
Repeatability	≤±0.005%FS
Resolution	Infinite resolution (depending on controller AD and power supply ripple)
Hysteresis	≤0.001%FS
Temperature Drift	≤0.001%FS
Operating Voltage	24VDC
Current Draw	5~16mA
Vibration	5g/10-2000Hz/IEC Standard IEC Standard 68-2-6
Temperature	-40°C~+85°C
Load Characteristics	Voltage output load resistance ≥3KΩ
Load Characteristics	Current output load resistance ≤1KΩ
Connection Type	Slide type or magnetic levitation type
Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:

Tips: What are the temperature coefficient, hysteresis and warm-up period of magnetostrictive sensor?
Temperature coefficient: The variation of output value of sensor along with the increase in environment temperature by 1℃ when the detected target location is not changed. The unit of temperature coefficient is ppm/℃.
Hysteresis: The difference value between the two times’ measured output value when the magnet ring passes through one location reversely after reaching and surpassing it along the direction of measurement. However, the actual hysteresis of magnetostrictive displacement sensor is very small and can be neglected in most applications.
Warm-up period: The time, from sensor is powered on to output value becomes stable.
