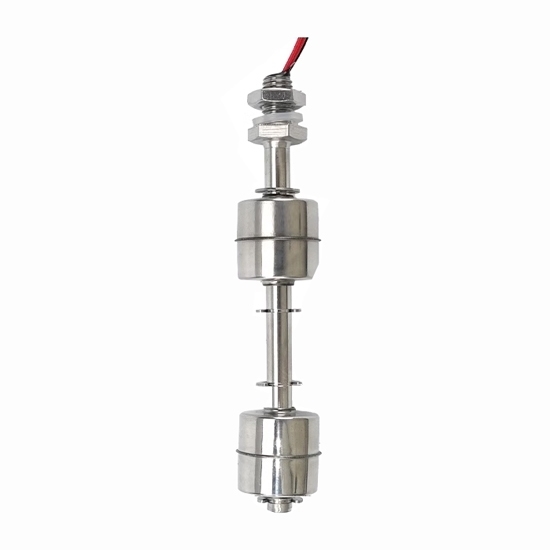

Dual Ball Float Level Switch, Stainless Steel

0 reviews • Write a review

from

$59.15

Ex Tax: $59.15

Stock: In Stock
Model: RDDLZ-MR10125-PS
Weight: 1.00
SKU: RDDLZ-MR10125-PS

Available Options

Short Description

Voltage

Contact Form

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Float liquid level switch is a compact size and highly reliable, which is widely applied in water fountains, air conditioning, humidifiers, bathroom equipment, sale machines, oil tank, and chemical liquid level control.

Specification

Model	RDDLZ-ES12010-2-1A1	RDDLZ-ES12010-2-2A1
Voltage	0-110V	0-220V
Rod Length	120mm	120mm
Material	304 Stainless Steel	304 Stainless Steel
Max. Power	10VA	50VA
Working Pressure	<1.0Mpa	<1.0Mpa
Max. Switching Current	0.5A	1.5A
Min. Breakdown Voltage	110V AC/DC	300V AC/DC
Max. Contact Resistance	100mΩ	100mΩ
Temperature Range	-30~120℃	-30~120℃
Number of Wires	4 Wires	4 Wires
Wire Length	400mm	400mm
Specific Gravity of Medium	>0.9g/cm³	>0.9g/cm³

Dimensions (Unit: mm)

Movement Explanation

When the float down to the D position, in the position between D=3±1mm, the reed switches will be closed. Float ball reverses the opposite action.

Tips for using the float liquid level switch

Handle gently because the inside of the float level switch is a dry reed pipe which is fragile.
The temperature use of the plastic should be less than 80℃, and the stainless steel should be less than 150℃。
Avoid vibration, magnetic field or over the maximum temperature for a long time in the use environment.
Avoid to use this float sensor for the liquid that is too viscous.
Remove the dirt on the float switch regularly, the clean period depends on the medium.
