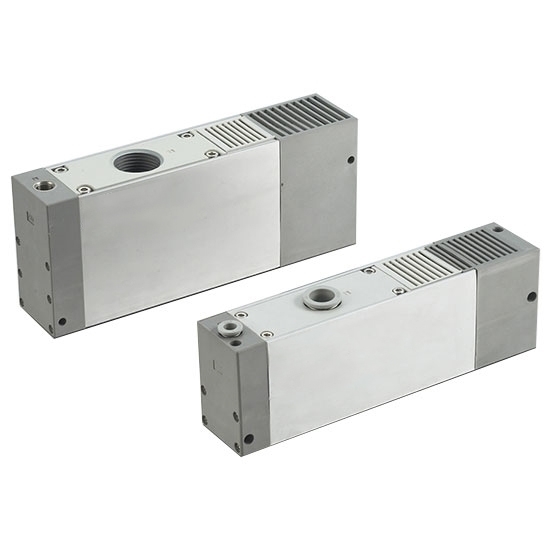

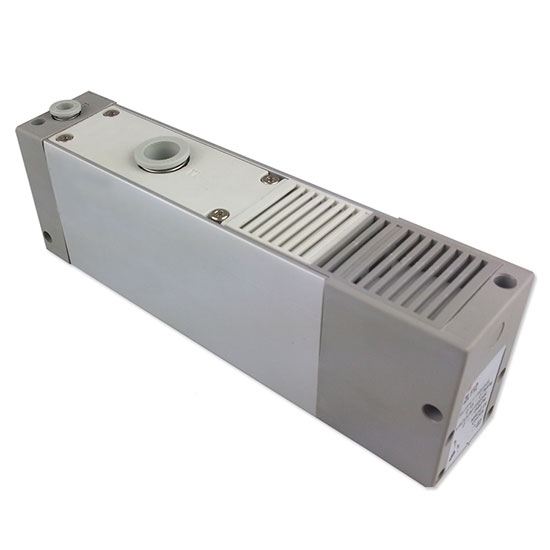

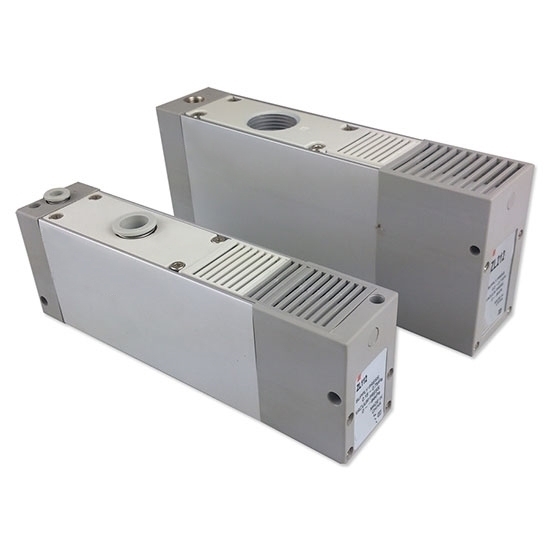

Multistage Venturi Vacuum Generator

0 reviews • Write a review

from

$87.72

Ex Tax: $87.72

Stock: In Stock
Model: RDDLZ-MVG-Z1
Weight: 1.00
SKU: RDDLZ-MVG-Z1

Available Options

Nozzle Diameter

Exhaust Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Multistage vacuum generator/ejector is compact size and large flow rate, energy saving 20%. Build-in vacuum filter and sliencer, universal mounting style for top, bottom and side mounting.

Specification

Model	RDDLZ-C-ZL112		RDDLZ-C-ZL212
Maximum suction flow rate (l/min (ANR))	100		200
Air consumption (l/min (ANR))	63		126
Nozzle diameter	1.2mm		2.4mm
Vacuum Port (in.)	Rc 3/4
Pressure Supply Port (in.)	Rc 1/8
Exhaust Type	Silencer Exhaust	Rc 1/2 Port Exhaust	Silencer Exhaust
Maximum vacuum pressure	-84 kPa
Maximum operating pressure	0.7 MPa
Supply pressure range	0.2 to 0.5 MPa
Standard supply pressure	0.4 MPa
Operating temperature range	5 to 50 ℃

Dimensions (Unit: mm)

RDDLZ-C-ZL112

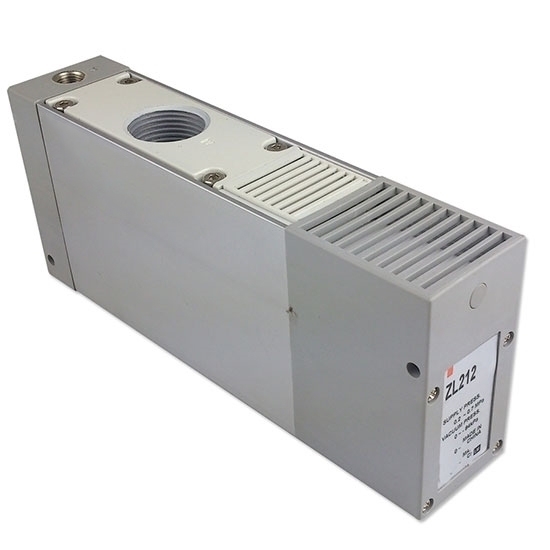

RDDLZ-C-ZL212

Tips: What is multistage venturi vacuum generator?

Vacuum ejectors are divided into single stage vacuum generators and multistage venturi vacuum generator. Under the condition of consuming the same compressed air, the vacuum pumping capacity of the multistage vacuum generator under the standard atmosphere is generally several times that of the single-stage vacuum generator. Therefore, the multistage vacuum generator is a truly efficient pneumatic vacuum pump. Nowadays, it is applicable to all occasions need large vacuum flow, has been widely used in pharmaceutical machinery, printing machinery, packaging machinery, production lines, robots, chemical plant and automated machinery. It cooperates with vacuum suction cup, which has been widely promoted in the transport industry.

Features of multistage vacuum ejector

The special multi-stage venturi structure design, precision nozzle and aerodynamic technology make the multistage vacuum ejectors have good performance.
Replace the traditional rotary oil-feed vacuum pump, no pollution to the surrounding environment.
No moving parts, no lubricant and additional maintenance costs.
Small volume, light weight, low noise and no vibration.
Multi-stage injection, with less air consumption to produce a large amount of suction.
