Venturi Vacuum Generator, Box Type

0 reviews • Write a review

from

$34.29

Ex Tax: $34.29

Stock: In Stock
Model: RDDLZ-C-ZH
Weight: 1.00
SKU: RDDLZ-C-ZH

Available Options

Port Selection

Nozzle Diameter

Vacuum Pressure

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 stage box type air venturi vacuum generator/ejector is compact and light weight, widely used in used in spaces where vibration needs to be avoided.

Specification

Model		RDDLZ-C-ZH05B	RDDLZ-C-ZH07B	RDDLZ-C-ZH10B	RDDLZ-C-ZH13B
Type		Box Type
Nozzle Diameter (mm)		0.5	0.7	1	1.3
Vacuum Pressure (kPa)	S (Pressure Type)	-88	-88	-88	-88
Vacuum Pressure (kPa)	L (Flow Type)	-48	-48	-48	-48
Flow Rate (l/min)	S	5	12	24	40
Flow Rate (l/min)	L	8	20	34	70
Air Consumption (l/min)		13	23	46	78
Supply Pressure (MPa)		0.45

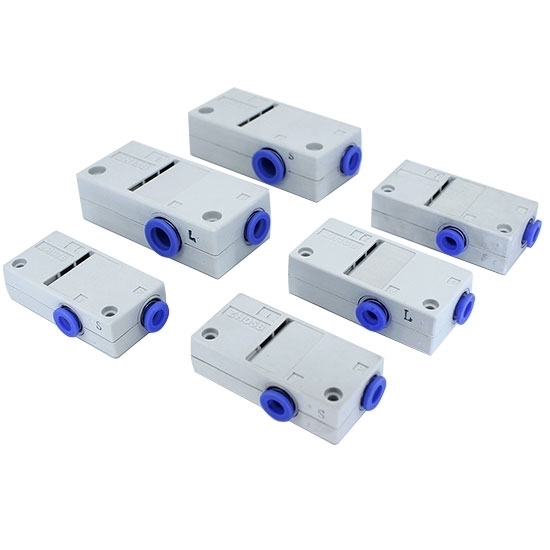

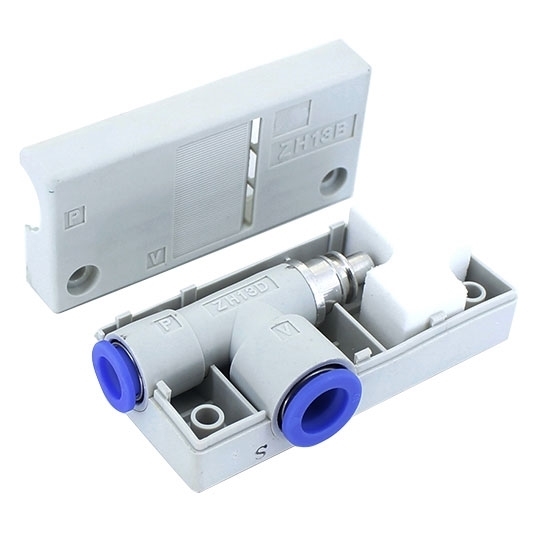

Port Selection (Supply Port + Vacuum Port)	One-touch Fitting (mm)	ø06 + ø06	ø06 + ø06	ø06 + ø06	ø08 + ø10

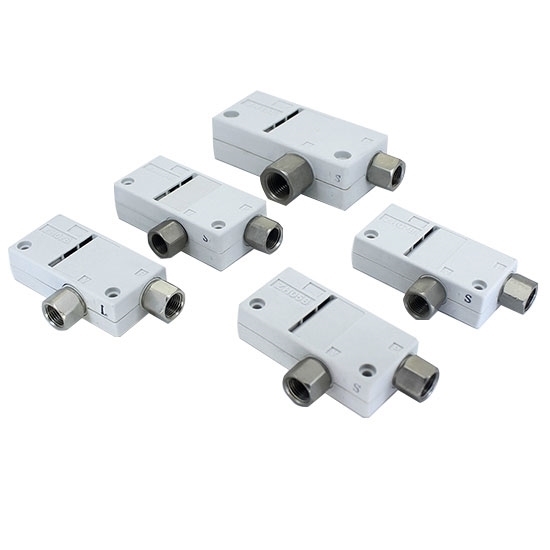

	Screw-in (in.)	Rc1/8 + Rc1/8	Rc1/8 + Rc1/8	Rc1/8 + Rc1/8	Rc1/8 + Rc1/4

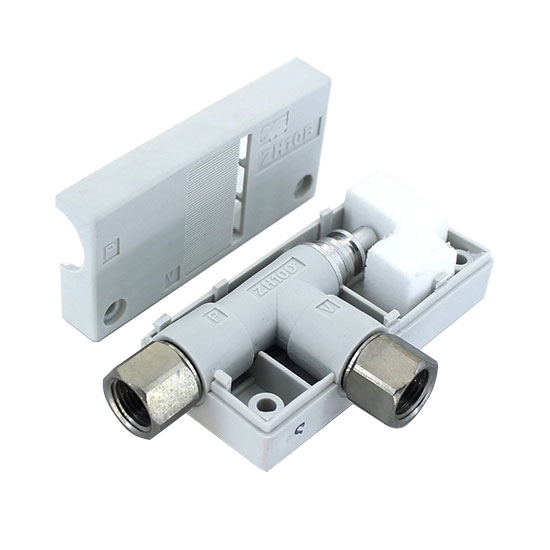

	One-touch Fitting + Screw-in	ø06 + Rc1/8	ø06 + Rc1/8	ø06 + Rc1/8	ø08 + Rc1/4

Dimensions

Units: mm

Model (One-touch Fitting)	RDDLZ-C-ZH05B	RDDLZ-C-ZH07B	RDDLZ-C-ZH10B	RDDLZ-C-ZH13B
A	60	60	63	78
øB	6	6	6	8
C	22	22	23	27.5
D	16	16	18	23
E	17	17	17	18.5
F	28	28	29	35
G	5	5	5	7
H	47	47	50	61
I	57	57	60	75
J	17	17	17	21
øK	3.2	3.2	3.2	4.2
L	24	24	26	28
øM	6	6	6	10
øN	5.8	5.8	5.8	7.5
O	2	2	2	3
P	31	31	32	38.5

Model (Screw-in)	RDDLZ-C-ZH05B	RDDLZ-C-ZH07B	RDDLZ-C-ZH10B	RDDLZ-C-ZH13B
A	67.5	67.5	70.5	86.5
B	Rc1/8	Rc1/8	Rc1/8	Rc1/8
C	29.5	29.5	30.5	39
D	16	16	18	23
E	12	12	12	14
F	28	28	29	35
G	5	5	5	7
H	47	47	50	61
I	57	57	60	75
J	12	12	12	17
øK	3.2	3.2	3.2	4.2
L	31.5	31.5	33.5	36.5
M	Rc1/8	Rc1/8	Rc1/8	Rc1/4
øN	5.8	5.8	5.8	7.5
O	2	2	2	3
P	38.5	38.5	39.5	50

Model (One-touch Fitting + Screw-in)	RDDLZ-C-ZH05B	RDDLZ-C-ZH07B	RDDLZ-C-ZH10B	RDDLZ-C-ZH13B
A	60	60	63	78
øB	6	6	6	8
C	29.5	29.5	30.5	39
D	16	16	18	23
E	17	17	17	18.5
F	28	28	29	35
G	5	5	5	7
H	47	47	50	61
I	57	57	60	75
J	12	12	12	17
øK	3.2	3.2	3.2	4.2
L	24	24	26	28
M	Rc1/8	Rc1/8	Rc1/8	Rc1/4
øN	5.8	5.8	5.8	7.5
O	2	2	2	3
P	38.5	38.5	39.5	50

Tips: The performance of venturi vacuum generator

Exhaust and flow characteristics

Exhaust characteristics refer to the relationship between vacuum pressure, suction flow or air consumption varying with the change of air supply pressure of vacuum generator. They increase as the supply pressure increases. Flow characteristics refer to the relationship between vacuum pressure and suction flow when the supply pressure of vacuum generator is constant. Suction flow rate is the flow of air inhaled from the suction port.

Suction time

It refers to the time when the vacuum pressure in the vacuum suction cup reaches the required vacuum pressure or the time required when the air supply valve is switched to the vacuum pressure switch. It is related to the volume of the adsorption chamber (diffusion chamber, adsorption pipe volume and suction cup volume, etc.), the leakage of the adsorption surface and the required vacuum pressure.

Air consumption

The air consumption of pneumatic vacuum generator is determined by the diameter of nozzle, but it is also related to the working pressure. For the same nozzle diameter, the air consumption increases with the increase of working pressure. The nozzle diameter is the main basis for selecting a vacuum ejector. The larger the nozzle diameter, the greater the suction flow and air consumption, and the lower the vacuum pressure. The smaller the nozzle diameter, the smaller the suction flow and air consumption, but the higher the vacuum pressure.

vacuum pressure

There is a maximum vacuum pressure, when the maximum is exceeded, even if the working pressure is increased, the vacuum pressure will not increase but will decline. The maximum vacuum generated by the vacuum generator is -88kPa. In actual use, it is suggested that the vacuum pressure can be set at -70KPa and the working pressure is about 0.5Mpa.
