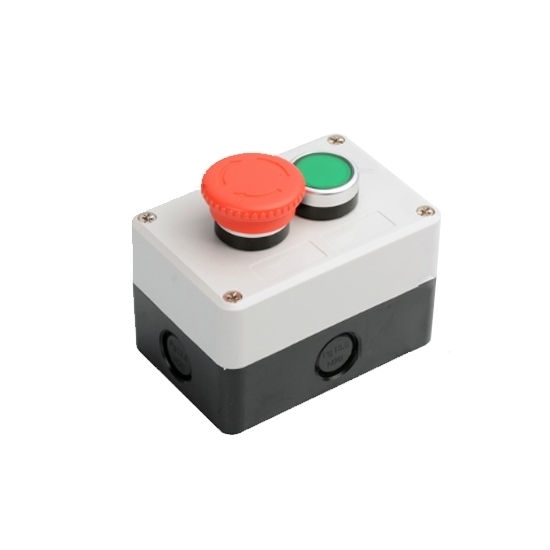

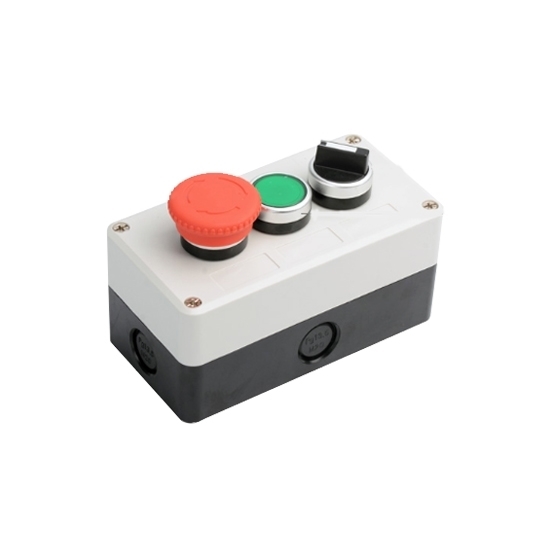

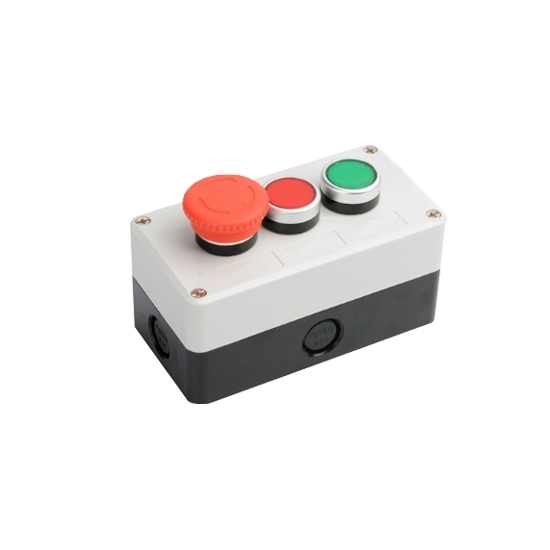

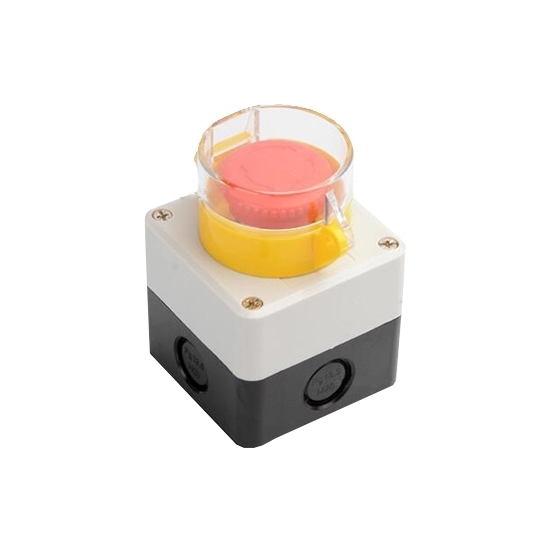

Emergency Push Button Switch, Plastic Type

0 reviews • Write a review

from

$40.55

Ex Tax: $40.55

Stock: In Stock
Model: RDDLZ-EPB-PT
Weight: 1.00
SKU: RDDLZ-EPB-PT

Available Options

Button type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The emergency push button control switch has a simple structure of 1NC/ 1NO+1NC/ 2NC+1NO/ 2NO+1NC contact form, sensitive response and long service life. The push button switch box is widely used in electrical automatic control circuits. And mainly used to manually send control signals to control contactors, relays, electromagnetic starters, etc.

Emergency Push Button Switch Specifications:

Model	RDDLZ-KL-B104	RDDLZ-KL-B204	RDDLZ-KL-B304	RDDLZ-KL-B305
Item	1NC emergency push button	1NO+1NC emergency push button	2NO+1NC emergency push button	2NC+1NO emergency push button
Material	ABS plastic
Temperature	-40℃-+80℃
Protection level	IP65
knock off hole	Yes
Cover and base connect	Yes
Color of the button box	Yellow or grey
Max.voltage	220V
Max.current	5A

Structure and Dimension (Unit=mm)

1NO+1NC emergency push button2NC+1NO emergency push button

2NO+1NC emergency push button

Tips: selection of NO and NC contact form for Emergency push button Switch

The most basic function of the emergency stop button is to stop in an emergency to avoid mechanical accidents or personal accidents. However, due to the long-term operation of the machine, the line, especially the emergency stop line part, may cause a fault and open circuit. At this time, if the emergency stop button uses a normally open contact, the line fault of the emergency stop part will not be found. If the emergency stop button is used then it will be too late. When using normally closed contacts, when the emergency stop part of the circuit fails, it will at most cause the machine to stop, and the loss will be relatively small. When designing an electrical control system, it is best to use a normally closed contact for the emergency stop button, so that the safety factor is relatively high.
