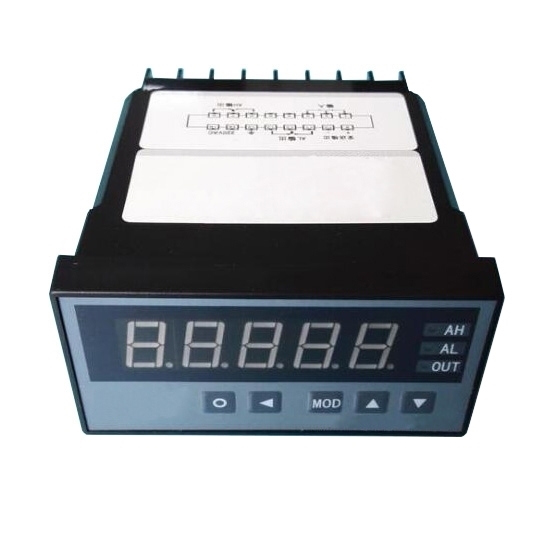

Digital Panel Meter For Potentiometers 5 Digit

0 reviews • Write a review

from

$226.15

Ex Tax: $226.15

Stock: In Stock
Model: RDDLZ-DPM-DS5D
Weight: 1.00
SKU: RDDLZ-DPM-DS5D

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Intelligent digital panel meter has adjustment and digital filtering function. Digital display controller can help to reduce errors of the sensor and the transmitter, effectively improve the system measurement accuracy and control accuracy.

Specification:

Basics	Model	RDDLZ-DPM5
	Dimension	A 16080125mm horizontal, hole size 15276; B 9696112mm, hole size 9292; C 9648112mm horizontal, hole size 92*45.
	Shipping weight	2 kg
Technical parameters	Display	-19999~99999
	Measurement accuracy	0.05%
	Measuring speed	10 times/second
	Display method	5 digit LED display
	Instrument power supply	100-240VAC, 50/60Hz; 10-24VDC
	Input signal	DC current 4-20mA, 0-20mA, 0-10mA; DC voltage 0-5v; DC voltage 0-10V; Signal of mV; Potentiometer (500Ω-20KΩ).
	Contact input (optional)	External switch input for clearing
	Alarm (4 kinds can be Selected)	J0(no alarm), J1-J4 (1-4 kinds), J3 and J4 just for dimension A, B
	Transmission (optional)	B0 no output; B1 current output (4-20mA), (0-10mA), (0-20mA); B2 voltage output (0-5V), (1-5V); B3 voltage output (0-10V).
	External power supply (optional)	W0 no power; W1 24V DC; W2 12V DC; W3 10V precision power supply.
	Communication (optional)	T1 TC ASCII protocol RS232; T2 TC ASCII protocol RS485; T3 Modbus-RTU protocol RS232; T4 Modbus-RTU protocol RS485.
	Print function (optional)	Print

Note: The optional functions are not necessary, can be selected according to your need. Communication and transmission can't be compatible at the same time.

Tips: Steps for installing digital panel meter in the field

Install sensor: It is necessary to adjust the sensor installation correspondingly under the assistance of the field staff and according to the condition of the site. There is a need for horizontal installation and also a need for bottom-up installation. All gaskets should be in the required position. The situation of squeezing film and improper sealing should not occur.
Wiring: Connect all sensors with digital panel meter correctly. The signal should be outputted and received correctly. Besides, the data of digital panel meter and sensors should be one-to-one correspondence.
Debugging: All the pressure and liquid level transmitter should adjust to zero, reset parameters. In order to ensure the display of the digital panel meter in line with sensors. The upper and lower alarm value should be set according to the requirements of the site and connected to the PLC.
Site validation: In the field inject required medium into the storage tank. The numerical value of the digital panel meter should be corresponded with the actual one. There should be no leakage in the installation place of the sensor and the temperature is displayed correctly.
