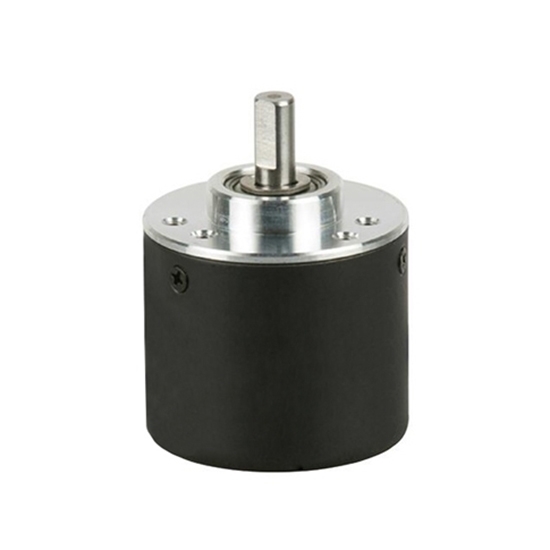

Incremental Rotary Encoder, Shaft, 500 Ppr

Incremental Rotary Encoder, Shaft, 500 Ppr
Incremental Rotary Encoder, Shaft, 500 Ppr
0 reviews • Write a review
from
$142.22
Ex Tax: $142.22
  • Stock: In Stock
  • Model: RDDLZ-IRE-500PS
  • Weight: 1.00
  • SKU: RDDLZ-IRE-500PS

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Incremental optical rotary encoders with 500 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

BasicsModelRDDLZ-S3806G-500BM
Weight100g
WiringColorRedBlackGreenWhiteYellowBrownGrayOrange
SignalVccGNDABZA-B-Z-
Mechanical propertiesMaximum shaft speed (r/min)5000
Starting torque<0.03Nm (25℃)
Maximum shaft loadRadial load: 50N, axial load: 20N
Shock resistance50G/11ms
Anti-vibration10G (10~2000Hz)
Rotational inertia4X10-8kgm2
Operating temperature-30~+85℃ (-22~+185℉)
Storage temperature-35~+95℃ (-31~+203℉)
Protection LevelIP51
Electrical characteristicsOutput circuitOpen-collector outputVoltage outputPush-pull outputLine driver output
Supply voltage VccDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC5V±0.2DC 5～24V
Current consumption≤60mA≤60mA≤60mA≤100mA
Output high level≥3.5V≥Vcc-2.5V--≥2.5V≥Vcc-2.5V
Output low level≤0.5V≤0.5V--≤0.5V≤1.0V
Rise time Tr≤500ns≤1500ns--≤200ns≤500ns
Fall time Tf≤100ns≤300ns--≤200ns≤200ns
Maximum frequency response0～100kHz0～100kHz0～100kHz0～100kHz0～100kHz0～100kHz


Model Selection

Shaft typeDiameter of shellDiameter of shaftConnection typeCable length *ResolutionProduction identifierZ signalZ signal wavelengthOutput mode *Voltage *
S: Shaft38: 38mm06: 6mmG: Cable edge output1: 1m
2: 2m
3: 3m
4: 4m		500: 500 pprBM: Output 1 if receiving Z signalDefault: 1TC: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272		5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

  1. The optical encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
  2. The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
  3. Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
  4. Compact and lightweight, suitable for automation equipment with limited installation space.
  5. Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: Difference between incremental encoder and absolute encoder

  1. First, there is a difference in the code disc between the absolute encoder and the incremental encoder. The code disc of the incremental encoder has a fixed number of gratings on the same circumference, and a certain amount of pulse can be generated by the gratings cutting the light (the number of gratings each circle is the resolution of the encoder). While absolute encoders have different numbers and intervals of gratings on different circumferences on the same code disc. That is, when the code disc is stopped at a certain position, combine different fixed positions by judging whether it is transparent on the circles of the code disc, a fixed number will be shown through the output line.
  2. The incremental encoder can't record the current position when the power is off, it can only record along with the counter and other equipment. The absolute encoder itself can record the location. Therefore, it is no need to worry about the record preservation of absolute encoder after the power fails.
  3. Absolute Encoder has a variety of output codes (binary code, decimal BCD code, Gray code), which can be directly provided to the display unit, PC and other equipment. While incremental encoder can't be directly provided to the display unit.
  4. The absolute encoder almost cannot consider the speed, interference and other issues, as long as the encoder stops in a certain position, no matter what influence is received during rotation, and it can always display the current position.
