Incremental Rotary Encoder, Shaft, 1200 Ppr

Incremental Rotary Encoder, Shaft, 1200 Ppr
Incremental Rotary Encoder, Shaft, 1200 Ppr
0 reviews • Write a review
from
$152.96
Ex Tax: $152.96
  • Stock: In Stock
  • Model: RDDLZ-IRE-1200PS
  • Weight: 1.00
  • SKU: RDDLZ-IRE-1200PS

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

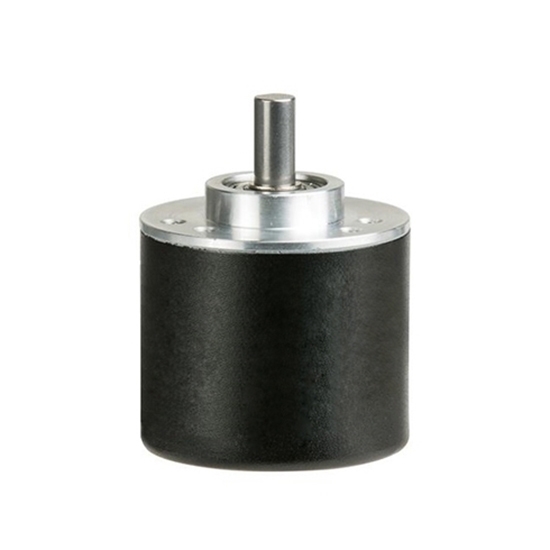

Incremental optical rotary encoders with 1200 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

BasicsModelRDDLZ-S5208G-1200BM
Weight100g
WiringColorRedBlackGreenWhiteYellowBrownGrayOrange
SignalVccGNDABZA-B-Z-
Mechanical propertiesMaximum shaft speed (r/min)5000
Starting torque<0.03Nm (25℃)
Maximum shaft loadRadial load: 50N, axial load: 20N
Shock resistance50G/11ms
Anti-vibration10G (10~2000Hz)
Rotational inertia4X10-8kgm2
Operating temperature-30~+85℃ (-22~+185℉)
Storage temperature-35~+95℃ (-31~+203℉)
Protection LevelIP51
Electrical characteristicsOutput circuitOpen-collector outputVoltage outputPush-pull outputLine driver output
Supply voltage VccDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC5V±0.2DC 5～24V
Current consumption≤60mA≤60mA≤60mA≤100mA
Output high level≥3.5V≥Vcc-2.5V--≥2.5V≥Vcc-2.5V
Output low level≤0.5V≤0.5V--≤0.5V≤1.0V
Rise time Tr≤500ns≤1500ns--≤200ns≤500ns
Fall time Tf≤100ns≤300ns--≤200ns≤200ns
Maximum frequency response0～100kHz0～100kHz0～100kHz0～100kHz0～100kHz0～100kHz


Model Selection

Shaft typeDiameter of shellDiameter of shaftConnection typeCable length *ResolutionProduction identifierZ signalZ signal wavelengthOutput mode *Voltage *
S: Shaft52: 52mm08: 6mmG: Cable edge output1: 1m
2: 2m
3: 3m
4: 4m		1200: 1200 pprBM: Output 1 if receiving Z signalDefault: 1TC: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272		5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

  1. The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
  2. The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
  3. Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
  4. Compact and lightweight, suitable for automation equipment with limited installation space.
  5. Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: What is the push-pull output?

Push-pull output is an output that allows connecting a drain circuit or source circuit at the same time. This type of output allows outputting more current and following input voltage than the totem pole output. When the open collector output and the encoder connected controller can't work, the push-pull output should be selected.
