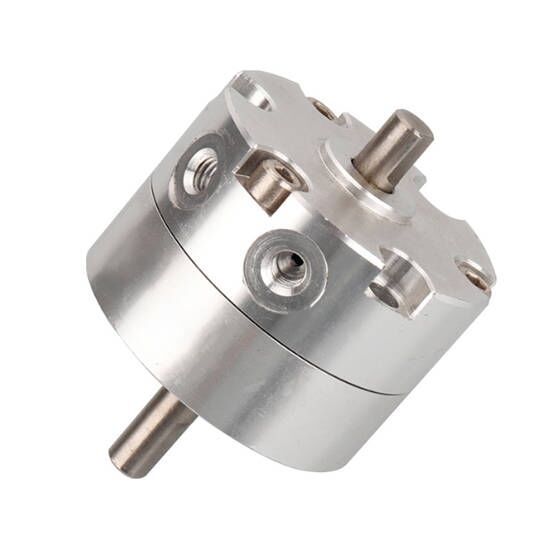

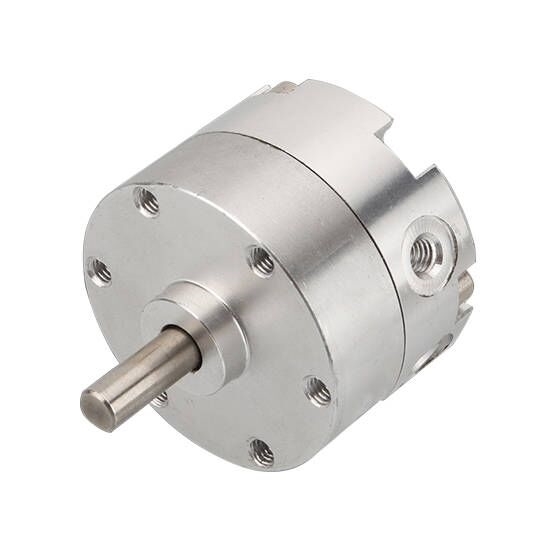

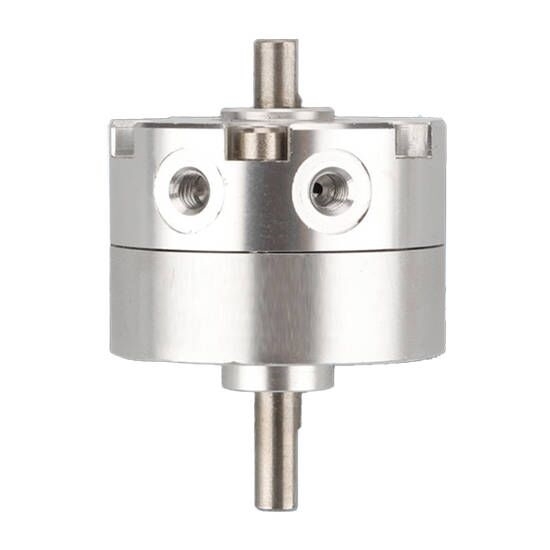

40mm Rotary Pneumatic Cylinder, Vane Type

0 reviews • Write a review

from

$139.86

Ex Tax: $139.86

Stock: In Stock
Model: RDDLZ-PC-2BWM5
Weight: 1.00
SKU: RDDLZ-PC-2BWM5

Available Options

Bore

Swing Angle

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetic adjustable rotating vane cylinder for sale, bore size 20mm, 30mm, and 40mm, thickened base design, strong impact resistance, making rotary vane cylinder pressure resistant and stable. Rotary actuator cylinder small in size, easy to carry and store.

Specification

Model	RDDLZ-CRB2BW-M5
Bore Size	20mm	30mm	40mm
Swing Angle	90°, 180°, 270°
Fluid Used	Air (no oil)
Pressure Resistance Test Pressure	1.5MPa
Ambient Temperature and Fluid Temperature	5~ 60°C
Maximum Operating Pressure	0.7MPa	1.0MPa
Minimum Operating Pressure	0.15MPa
Swing Time Adjustment Range （Note 1)	0.03~0.3 s/90°	0.04~0.3 s/90°	0.07~0.5 s/90°
Allowable Kinetic Energy (Note 2)	0.003J	0.02J	0.04J
Allowable Kinetic Energy (Note 2)	0.0004J	0.015J	0.03J
Allowable Radial Load	25N	30N	60N
Allowable Axial Load	20N	25N	40N
Vent Position	Main body side or axial
Size of the Opening (Body Side, Axial Direction)	M5
Adjustable Angle Range of Components (Note 3)	0~240°	0~230°

Note 1: If the speed limit exceeds the upper limit (0.3s/90°), crawling or inactivity may occur, so it should be used within the adjustable speed range.
Note 2: The upper part of the table shows the kinetic energy value when the pad cushion is used (for the swing end), and the lower part shows the kinetic energy value when the pad cushion is not used.
Note 3: The adjustment range in the table is 270°.

Features

Thickened base, strong impact resistance, making the rotary vane cylinder stable and compressive.
The cylinder body of the rotary vane cylinder is thick, smooth and burr-free inside, with high-quality double sealing rings, the sealing performance is good, smooth and not stuck.
The piston rod is made of stainless steel fine grinding, which is strong and hard, wear-resistant and air-leakage-proof.
High-strength cap end, strong impact resistance, improve the overall stability of the rotary vane cylinder, extend rotary cylinder life.

Dimension (Unit mm)

Size	A	B	C	D	E (g7)	F (h9)	G1	G2	J	K	M	N	P
10	29	15	8	14	4^-0.004_-0.016	9⁰_-0.006	3	1	5	9	9.5	9.5	24
15	34	20	9	18	5^-0.004_-0.016	12⁰_-0.043	4	1.5	6	10	14	10	29
20	42	29	10	20	6^-0.004_-0.016	14⁰_-0.043	4.5	1.5	7	10	20	13	36
30	50	40	13	22	8^-0.004_-0.016	16⁰_-0.043	5	2	8	12	26	14	43
40	63	45	15	30	10^{-0.004 -0.016}	25⁰_-0.052	6.5	4.5	9	20	31	20	56

Size	Q1	Q2	Q3	R	S	T	V1	V2	W	X	Y
10	M3x0.5 Deep6	6	/	M3x0.5	14	3.6	30	37	19.8	8.5	14.5
15	M3x0.5 Deep10	6	M3X0.5 Deep 5	M3x0.5	19	7.6	39.5	47	21	11	17
20	M4x0.7 Deep13.5	11	M4X0.7 Deep 7.5	M5x0.8	24.5	10.5	50.5	59	22	14	21
30	M5x0.8 Deep18	16.5	M5X0.8 Deep 10	M5x0.8	34.5	14	64	75	24	15.5	25
40	M5x0.8 Deep16	17.5	M5X0.8 Deep 10	M5x0.8	39.8	17	79.5	90	30	21	31.6

Tips: What is a rotary actuator?

Rotary actuators are cylinders that are used to provide rotary or angular movements, allowing oscillating movements within a defined angle. They are durable and provide relatively high forces (torques) for their size. Rotary actuators simplify design and can reduce maintenance problems.

Rotary cylinders are pneumatic actuators that use compressed air to drive the output shaft in a reciprocating rotary motion over a range of angles. Rotary actuators are used for turning and pulling objects, turning, sorting, clamping, opening and closing valves, and for robot arm movements.
