120mm Magnetostrictive Liquid Level Sensor For Shoemaking Machinery

0 reviews • Write a review

from

$929.86

Ex Tax: $929.86

Stock: In Stock
Model: RDDLZ-MSL-0120
Weight: 1.00
SKU: RDDLZ-MSL-0120

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

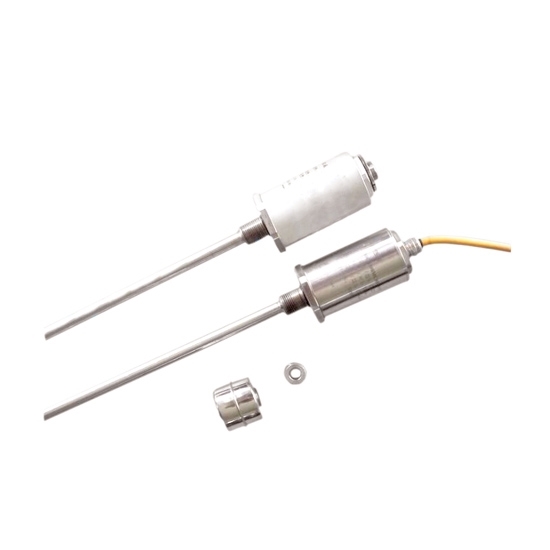

Magnetostrictive sensor with measuring range 120mm is used for liquid level preset and feedback, such as the liquid level of shoemaking machinery hydro-cylinder. Magnetostrictive liquid level sensors also can be used in most industrial automation systems.

Specification:

Basics	Model	RDDLZ-MSL-0120
	Measuring range	0~120 mm
	Shipping weight	1.1 kg
	Length	319.3 mm
	Diameter	50 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24V /12V DC
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
	Product type	Normal type; Explosion-proof type; Anti-corrosion type
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, special custom-made)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
	Connecting screw thread	M18×1.5; M20×1.5; 3/4-16UNF
	Type of lead wire	PVC shielded cable; aviation plug (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5

Installation diagram (unit: mm):

Tips: Precision and long-term stability of magnetostrictive sensor
The accuracy of magnetostrictive sensor should reach ±2% ~ ±5% RH. In case of fail to reach this level, it cannot be used as the measuring device. However, it is difficulty to reach the accuracy of ±2% ~ ±3% RH. The peculiarity introduced in the product information is usually measured at normal temperature (20℃±10℃) and in clean gas. However, due to the influences of dust, oil and harmful gases in actual use, it will be ageing and its accuracy will be reduced after it is used for a long time. The precision level of sensor should be judged by combining its long-term stability. Generally, long-term stability and service life are the most import problems influencing the quality of sensor. There are few products with annual drift controlled within 1%RH, generally within about ±2%.
