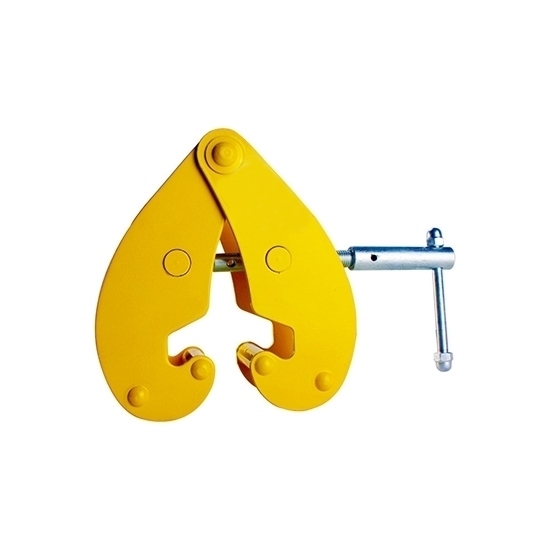

1 Ton Adjustable Beam Clamp For Lifting

0 reviews • Write a review

from

$131.59

Ex Tax: $131.59

Stock: In Stock
Model: RDDLZ-ABC-1T
Weight: 1.00
SKU: RDDLZ-ABC-1T

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 ton adjustable beam clamp is a mechanical device used in construction and engineering applications to securely attach and lift loads to an overhead beam or structure. It is designed to provide a quick and efficient method of suspending or hanging equipment, such as lighting fixtures, HVAC systems, piping, or electrical conduits.

Specification

Model: RDDLZ-JG-1
Load Capacity: 1 Ton
Experimental Load: 1.5 Ton
Applicable I-beams: 75~220mm
Material: Alloy Steel
Weight: 4.5kg

Dimensions (Unit: mm)

A (Max.)	B (Min.)	B (Max.)	C	D	E	F (Min.)	F (Max.)	G	H
260	180	360	64	5	215	155	102	25	22

Tips: Are beam clamps used with electrical?

Beam clamps are commonly used in electrical installations. They play a crucial role in securely attaching electrical conduit, cable trays, and other electrical components to structural beams or supports. Beam clamps are designed to provide a reliable and adjustable connection point, allowing for the safe routing and support of electrical wiring systems.

These clamps are typically made of durable materials such as steel or aluminum, ensuring strength and longevity. They feature a threaded bolt or screw mechanism that allows for easy installation and adjustment to accommodate different beam sizes. Additionally, beam clamps often have a gripping mechanism or teeth that securely fasten onto the beam, preventing any movement or slippage.

By using beam clamps, electricians can ensure that electrical conduits and cables are properly supported and protected. This helps to minimize the risk of damage, strain, or disconnection, thus enhancing the overall safety and reliability of the electrical system.
