5 KVA Single Phase Automatic Voltage Stabilizer For Home

0 reviews • Write a review

from

$558.57

Ex Tax: $558.57

Stock: In Stock
Model: RDDLZ-AVS-1P5K
Weight: 1.00
SKU: RDDLZ-AVS-1P5K

Available Options

Phase

Output Voltage

Output Voltage (AC)

Extended Warranty

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

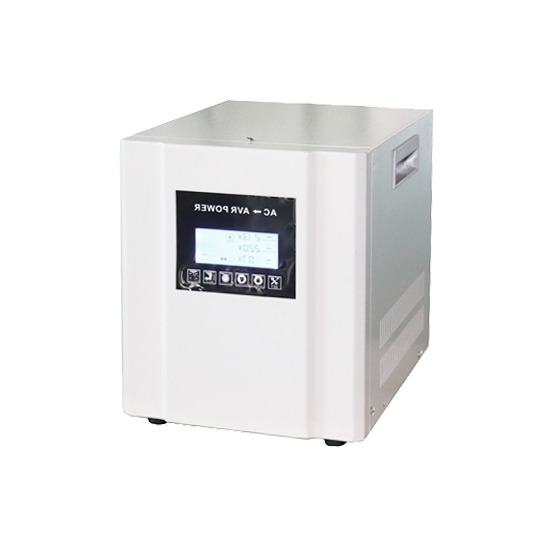

5 kVA Single Phase Automatic Voltage Stabilizer for Home with features like automatic restart, turn-on delay, time-delay system and high & low voltage cut-off that provide efficient and reliable protection for home electronic appliances against voltage problems.

Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	RDDLZSVC-5000
Technology	Relay Control System + Programmed control computerized + control algorithm relay "Cross zero"
Capacity	5 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	Single Phase
Input Voltage Range	±15% tolerance of output voltage
Output Voltage	220V±3%/ 230V±3%/ 240V±3%/ 110V±3%
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Over Voltage	<250±2V
Protection Lack Voltage	<185±2V
Ambient Temperature	-10°C~+40°C
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<90%
Wave Form Distortion	No additional waveform distortion
Efficiency	>95%
Display	LED
Protection Grade	IP20
Dielectric Strength	1500V/min
Certification	CE, RoHS
Warranty Period	12 months
Weight	14 Kg
Size	LxWxH=470x240x190mm
Note: The provided 5 kVA voltage stabilizer is 1-phase (L, N, G) by European standards. We can customize the split phase (L1, L2 + G) like the USA standard, just confirm with us by email after ordering.

Details

4 tips for maintenance of a voltage stabilizer

The voltage stabilizer should be placed in well-ventilated and dry indoors, without direct sunlight or corrosive gas.
The voltage stabilizer power should be larger than the total power of all power consumption equipment.
The voltage stabilizer switch can't be used as the master switch of devices. Turn on the voltage stabilizer switch first, then connect different power consumption equipment by increasing the order of power as there's power output. When turning off devices, follow a decreasing order of power and turn off the voltage stabilizer switch at last.
The voltage stabilizer switch shall not be turned off frequently, the interval between two turn-ons shall not be more than 10 seconds, otherwise, the voltage stabilizer would be protected by mistake, or even damaged.
