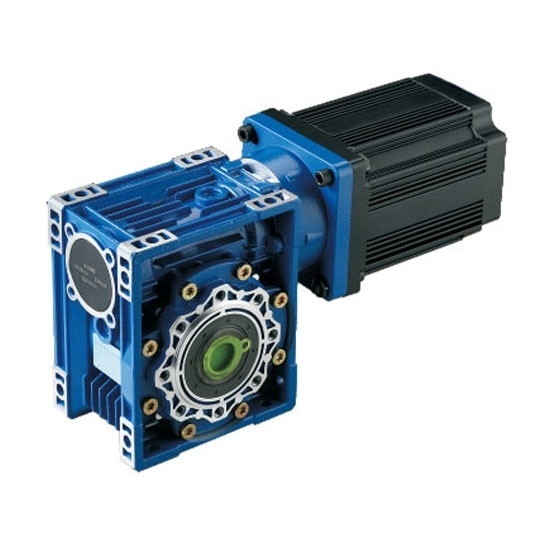

Buy 90 W worm gear motor at best price. This BLDC gear motor is best for new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.

Specification

Allowable Torque with Gear Head

Note:

• This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
• The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

Dimensions (Unit: mm)

Mounting screws are included with gearhead

Speed-Torque Curve

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short time operation area
  The motor can run at a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Details

Tips: Factors affecting the service life of DC worm gear motors

• The installation and commissioning process of the worm gear motor was not strict enough, and the problems found were not dealt with in time.
• the quality of the worm gear motor itself is poor.
• Insufficient maintenance of various indicating instruments and incorrect indications of the instruments, resulting in operating errors.
• The maintenance and maintenance of the worm gear motor is not enough, and the operation of the equipment is not regularly checked on time.
• The worm gear motor is overloaded, such as large defects.
• The job responsibility system is not sound enough, such as job responsibility system, job operation method, shift system, safety technology, etc.
• The operator is not familiar with the equipment structure, performance, allowable load, lubrication and related technical parameters.
• Insufficient lubrication management, unreasonable selection of lubricating oil, failure to clean up the outlet end and return end of the lubrication pipeline, and timely replacement of lubricating oil in accordance with relevant regulations.

In order to prolong the service life of the worm gear motor, you should pay attention to standard operation during use. Whether the operation method is correct can often directly affect the quality of the equipment and production safety. In addition, pay attention to maintenance and overhaul in peacetime, and try to prevent failures in advance. If problems are found, they must be dealt with in a timely manner to avoid small things from becoming bigger.
