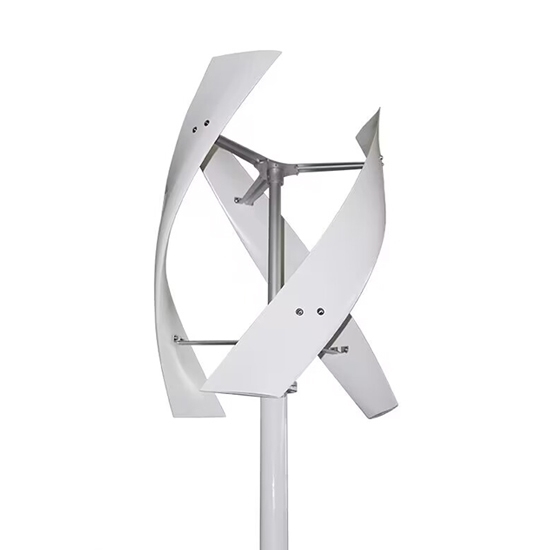

400W Vertical Axis Wind Turbine, 12V/24V

400W Vertical Axis Wind Turbine, 12V/24V
400W Vertical Axis Wind Turbine, 12V/24V
0 reviews • Write a review
from
$875.69
Ex Tax: $875.69
  • Stock: In Stock
  • Model: RDDLZ-VAWT-400
  • Weight: 1.00
  • SKU: RDDLZ-VAWT-400

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

A small 24 V vertical axis wind turbine for home use, rated power at 400W. The vertical blades of the 400W wind turbine can capture the wind from any direction, which is ideal for areas where wind direction is unpredictable.

Specification

ModelRDDLZ-X5-400
Rated Power400W
Rated Voltage12V/24V
With ControllerYes
Start Up Wind Speed2m/s
Rated Wind Speed12m/s
Survival Wind Speed50m/s
Wind Wheel Diameter/Height0.55m/0.75m
Number of Blades3
Blades MaterialNylon
Fuselage MaterialAluminum alloy
Magnetic SteelNdFeB
Generator TypeThree-phase AC permanent magnetically suspended generators
Controller SystemElectromagnetic brakes
Speed Regulation360° Automatically Adjust Windard
Installation FlangeDN20
Degree of protectionIP54
Gross Weight11kg
Top Net Weight12kg
Dimension860*380*200mm


Dimension (Unit: mm)

Applications

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

Tips: Method of installing a vertical wind turbine

  1. Open the package of the vertical axis wind turbine you have received, check for bumps and try to pivot the spiral blades, they turn easily without obstruction. If there are any problems, please return to us in time.
  2. Connect the three AC wires of the flange of the vertical axis wind turbine to the transmission cable, with each pair of wires glued to a length of not less than 30 mm and taped at the 100 mm end of the connection.
  3. Align the flange holes of the vertical axis wind turbine with the flange holes on the tower pole, apply flat washers and elastic rings and tighten the locking screws. After the sex ring, tighten the locking nut.
  4. Connect the cable from the vertical axis wind turbine to the control and connect the battery to the control before wiring.
