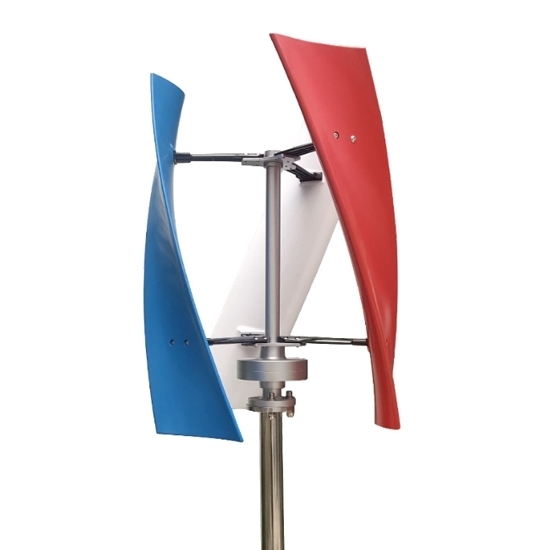

100W Vertical Axis Wind Turbine, 12V/24V

0 reviews • Write a review

from

$687.96

Ex Tax: $687.96

Stock: In Stock
Model: RDDLZ-VAWT-100
Weight: 1.00
SKU: RDDLZ-VAWT-100

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a low cost 12/24V vertical wind turbine online, with blades made from durable alloys that can withstand the impact of strong winds without damage. 100W vertical axis wind turbine use state-of-the-art technology to ensure reliability and long life, making it the ideal solution for areas with variable wind conditions.

Specification

Model	RDDLZ-X3-100
Rated Power	100W
Rated Voltage	12V/24V
With Controller	Yes
Start Up Wind Speed	2m/s
Rated Wind Speed	12m/s
Survival Wind Speed	50m/s
Wind Wheel Diameter/Height	0.55m/0.75m
Number of Blades	3
Blades Material	Nylon
Fuselage Material	Aluminum alloy
Magnetic Steel	NdFeB
Generator Type	Three-phase AC permanent magnetically suspended generators
Controller System	Electromagnetic brakes
Speed Regulation	360° Automatically Adjust Windard
Installation Flange	DN20
Degree of protection	IP54
Gross Weight	9kg
Top Net Weight	10kg
Dimension	860380200mm

Dimension (Unit: mm)

Applications

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

Tips: What does a 100W vertical axis wind turbine do?

The 100W vertical wind turbine has been engineered with high-quality materials, ensuring it can withstand harsh weather conditions and last for many years. It features a unique aerodynamic design that maximizes the wind's kinetic energy to generate power. The turbine operates quietly and efficiently, with minimal maintenance required, making it an excellent investment for anyone looking to reduce their energy bills while contributing to a greener planet. Get your hands on the 100W vertical wind turbine today and take the first step towards sustainable, clean energy.
