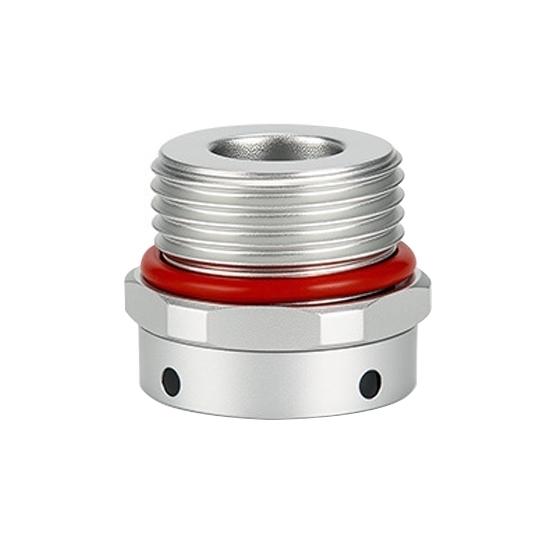

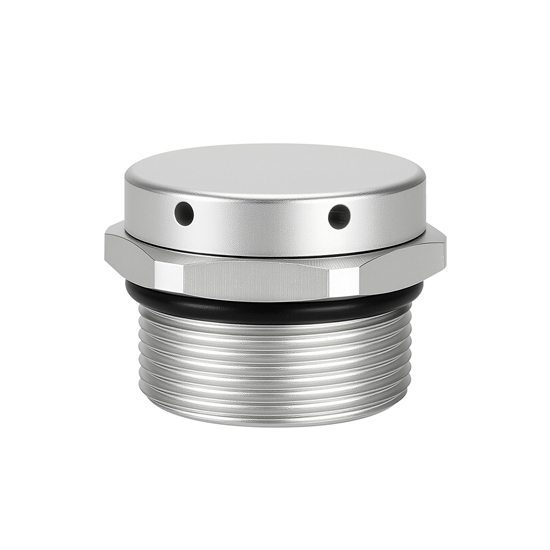

Waterproof Aluminum Alloy Breather Vent Plug, IP67

0 reviews • Write a review

from

$10.69

Ex Tax: $10.69

Stock: In Stock
Model: RDDLZ-VP-LC-6061
Weight: 1.00
SKU: RDDLZ-VP-LC-6061

Available Options

Short Description

Specification

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The aluminum alloy breather vent plug is waterproof, breathable, dustproof, acid and alkali resistant, suitable for battery packs and battery boxes of base station equipment, solar energy industry, high-power energy storage equipment, etc.

Specifications

Model: RDDLZ-MS-LC-6061
Material: 6061 Aluminum Alloy
Temperature Resistance: -40℃ to 125℃
Moisture Permeability: >5000g/24H.M2
Hydrostatic Pressure Resistance: ≥100mbar for 30min
Protection Level: IP67
Features: Dustproof, Hydrophobic, Breathable, Heat Dissipation

Dimension (Unit: mm)

Details

Specifications	Air Permeability	Thread Length	Total Length	Thread Diameter	Wrench Diameter
M5x0.8-4	≥200ml/min/@70mbar	4mm	10mm	5mm	8mm
M6x1.0-6	≥300ml/min/@70mbar	6mm	13mm	6mm	12mm
M8x1.25-7	≥800ml/min/@70mbar	7mm	15.5mm	8mm	12mm
M10x1.5-8	≥1200ml/min/@70mbar	8mm	17mm	10mm	14mm
M12x1.5-10	≥1500ml/min/@70mbar	10mm	19mm	12mm	16mm
M14x1.5-10	≥1500ml/min/@70mbar	10mm	21mm	14mm	19mm
M16x1.5-10	≥1700ml/min/@70mbar	10mm	19mm	16mm	20mm
M20x1.5-10	≥2300ml/min/@70mbar	10mm	19mm	20mm	22mm
M25x1.5-8	≥2300ml/min/@70mbar	8mm	21mm	25mm	30mm
M32x1.5-15	≥5000ml/min/@70mbar	15mm	27mm	32mm	36mm
M40x1.5-10	≥8500ml/min/@70mbar	15mm	29mm	40mm	40mm

Applications

RDDLZ air vent plugs can be widely used in battery packs and battery boxes of base station equipment, new energy electric vehicles, hybrid vehicles, the solar energy industry, high-power energy storage equipment, and various outdoor electrical equipment products.

Tips: Functions of the Vent Plug

Dustproof: The vent plug prevents dust and other solid particles from entering the system, keeping internal components clean and protected.
Hydrophobic: It repels water and moisture, stopping liquids from penetrating while still allowing air to pass through.
Breathable: The breathable vent plug allows air and gases to flow in and out, balancing internal pressure and preventing vacuum or overpressure conditions.
Heat Dissipation: By enabling airflow, it helps dissipate heat from enclosed spaces, preventing overheating and maintaining optimal operating temperatures.
