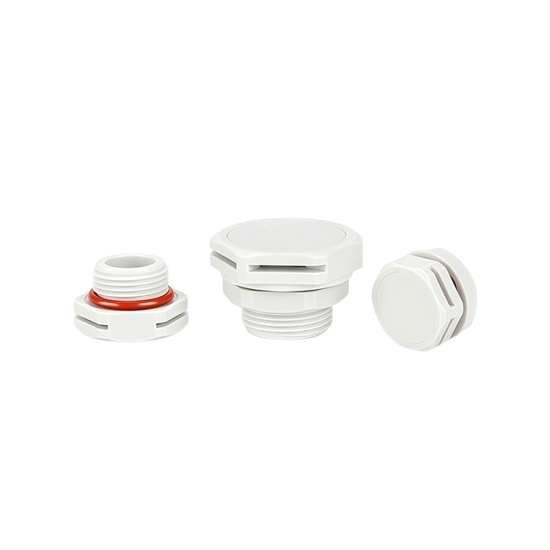

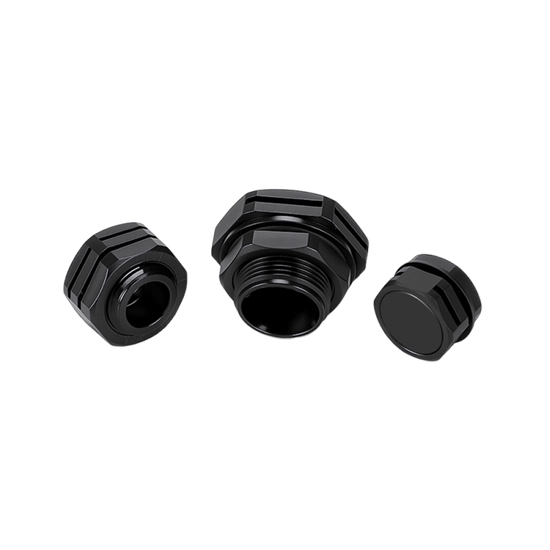

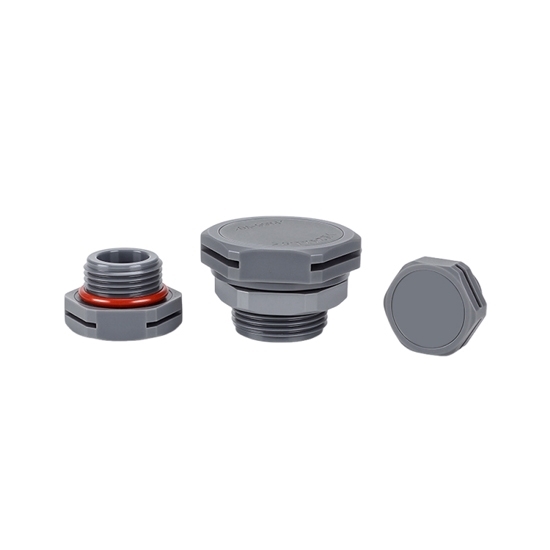

PA66 Nylon vent plug comes with IP67 waterproof, dustproof, hydrophobic, breathable, and heat dissipation functions and M10, M12, M16~M40 thread sizes. 3 different colors (white/gray/black) plastic air vent plugs can be selected.

Specifications

Model: RDDLZ-MS-SL-PA66
Material: PA66
Temperature Resistance: -40℃ to 125℃
Moisture Permeability: >5000g/24H.M2
Hydrostatic Pressure Resistance: ≥100mbar for 30min
Protection Level: IP67
Features: Dustproof, Hydrophobic, Breathable, Heat Dissipation
Color: White, Gray, Black

Dimension (Unit: mm)

Details

Specifications	Air Permeability	Thread Length	Total Length	Thread Diameter	Wrench Diameter
M5x0.8-7	≥600ml/min/@70mbar	7mm	13mm	5mm	12mm
M6x1.0-7	≥600ml/min/@70mbar	7mm	13mm	6mm	12mm
M8x1.25-10	≥1500ml/min/@70mbar	10mm	18mm	8mm	17mn
M10x1.5-10	≥1500ml/min/@70nbar	10mm	18mm	10nm	17nm
M12x1.0-10	≥1500ml/min/@70mbar	10mm	16mm	12nm	16nm
M12x1.5-10	≥1500ml/min/@70mbar	10mm	16mm	12mm	16mm
M16x1.5-10	≥4000ml/min/@70mbar	10mm	18mm	16mm	22mm
M20x1.5-10	≥4500ml/min/@70mbar	10mm	18mm	20mn	27mm
M24x1.5-15	≥7000ml/min/@70mbar	15mm	24mm	24mm	36mm
M32x1.5-15	≥8000ml/min/@70mbar	15mm	25mm	32mm	45mm
M40x1.5-15	≥8500ml/min/@70mbar	15mm	24mm	40mm	56mm

Applications

RDDLZ air vent plugs can be widely used in battery packs and battery boxes of base station equipment, new energy electric vehicles, hybrid vehicles, the solar energy industry, high-power energy storage equipment, and various outdoor electrical equipment products.

Tips: What is a breather vent plug?

A breather vent plug is a small device installed on machinery or equipment, such as gearboxes, differentials, or fuel tanks, to allow air to flow in and out while preventing contaminants like dust, dirt, and moisture from entering. Its main function is to balance internal pressure caused by temperature changes or fluid movement, avoiding vacuum or pressure build-up that could damage seals or cause leaks. By maintaining proper ventilation, the breather vent plug helps ensure the equipment operates smoothly and extends its service life.
