2 KVA Single Phase Variac Voltage Regulator

0 reviews • Write a review

from

$2,156.79

Ex Tax: $2,156.79

Stock: In Stock
Model: RDDLZ-VVR-2K
Weight: 1.00
SKU: RDDLZ-VVR-2K

Available Options

Short Description

Input Voltage X Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

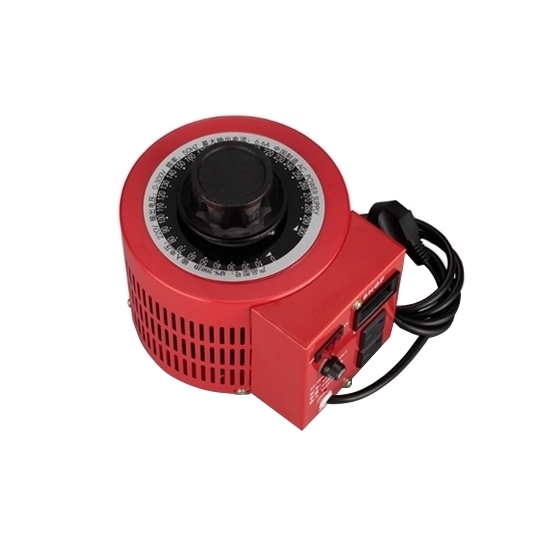

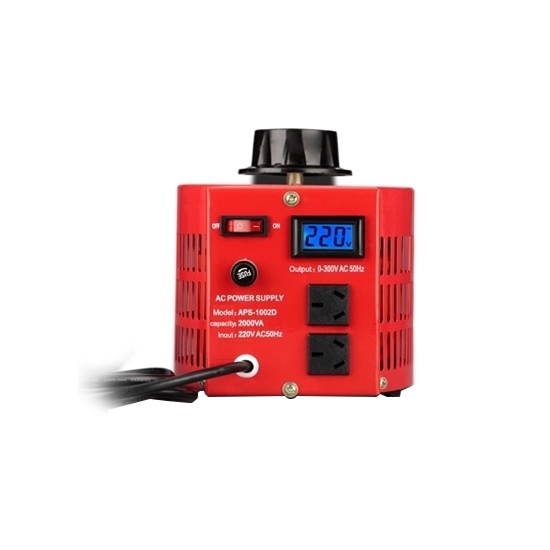

Single phase variac variable transformer for sale, rated current 6.4A, output voltage adjustable from 0 to 300V AC. The maximum rated power of 2000 VA. 2 kVA variac voltage regulator with overload protection makes it safer to use.

Specification

Model: RDDLZ-APS-2000VA
Rated Power: 2 kVA
Number of Power Phase: Single phase
Input Voltage: 110V/220V
Frequency: 50/60 Hz
Rated Full Offset Current: 14.5A/6.4A
Output adjustable voltage: 0-300V
Actual Output Current: (actual output voltage * rated current) / maximum output voltage
Weight: 8 kg
Dimension: 203mm x 176mm x 180mm
Certificate: CE

Dimension (Unit mm)

Applications

Variable transformers are widely used for applications such as temperature control, control lighting and testing of laboratory equipment under overvoltage and under-voltage conditions.

Tips: What is a single-phase voltage regulator?

Single-phase voltage regulators are generally used in research, experiments, testing, heating and insulation, soft start, etc. Single-phase voltage regulators provide different voltages to the load, and the voltage can be adjusted linearly in the case of energization. Small single-phase regulators are contacting, the capacity is generally below 30KVA, single-phase 220V input, 0-250V output; three-phase 380V input, 0-420 output. Large single-phase regulators are more types, and capacity, and specifications, can be designed and produced in accordance with the requirements. Like the most common regulator is a single-phase regulator, also often called an automatic single-phase regulator.
