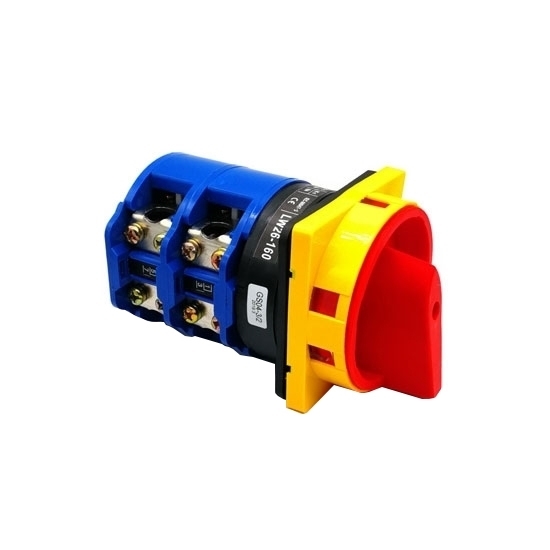

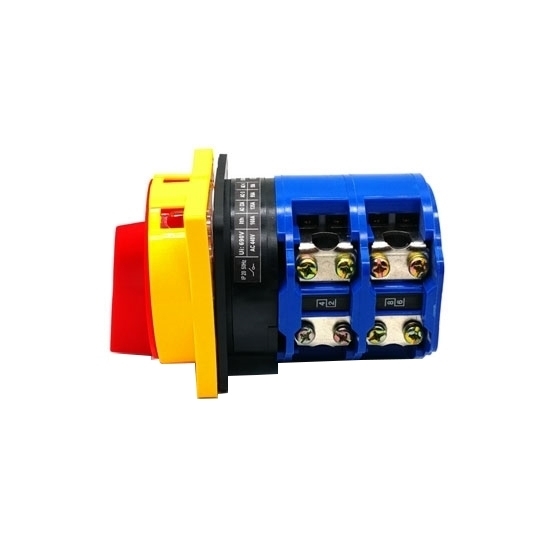

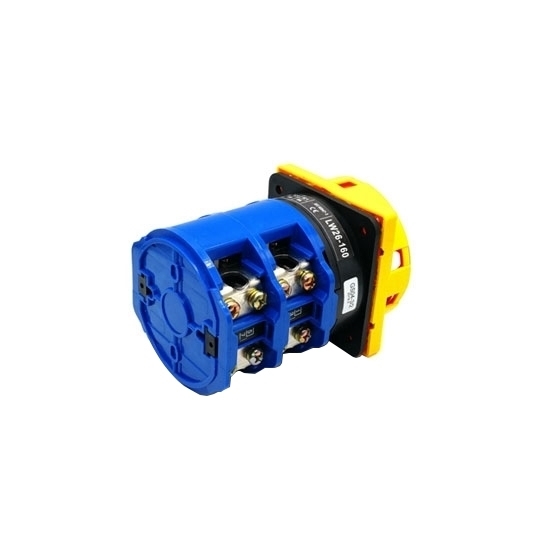

Rotary cam switch 2 position, 4 pole, 63A, it is suitable for standard low voltage control/load switching and ultra low voltage and electronic applications.

Specification:

Dimensions (Unit=mm)

63A 4 Pole M2 Panel Diagram

Conditions of Use

1. The ambient air temperature does not exceed +40 ° C, and the average temperature within 24 hours does not exceed 35 ° C.
2. The lower limit of ambient air temperature does not exceed -5 °C.
3. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%. When the temperature is low, high relative humidity can be allowed, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs with temperature changes.
4. The surrounding environment should be clean, free of flammable and flammable hazardous materials, no gas sufficient to damage insulation and metal, no conductive dust.

Tips: The role of the rotary switch

Rotary switches generally have a voltage type rotary switch, a universal transfer switch, a three-phase and four equal transfer switches, and their different functions also lead to different wiring methods of the transfer switch. The main function of the rotary switch is that there are many wiring lines, so the control power supply line is also relatively wide, so it is very convenient to convert. Its main function is the conversion between the voltmeter and the ammeter, and a long-distance transmission control such as measurement and control.
