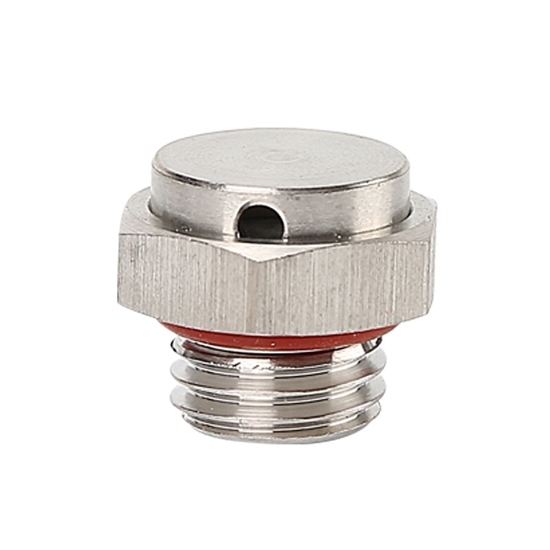

Stainless Steel Breather Vent Plug, 1/8, 1/4, 1/2, 3/8 NPT

0 reviews • Write a review

from

$11.90

Ex Tax: $11.90

Stock: In Stock
Model: RDDLZ-VP-BXG-30
Weight: 1.00
SKU: RDDLZ-VP-BXG-30

Available Options

Short Description

Specification

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a 1/8, 1/4, 1/2, or 3/8 NPT breather vent plug online. It is made of 304 stainless steel, waterproof, dust-proof, oil-proof, and acid- and alkali-resistant. Protection level can reach IP67 or above (customized is supported). G thread vent plug is also available.

Specifications

Model: RDDLZ-MS-BXG-30
Material: Stainless Steel 304
Temperature Resistance: -40℃ to 125℃
Moisture Permeability: >5000g/24H.M2
Hydrostatic Pressure Resistance: ≥100mbar for 30min
Protection Level: IP67
Features: Dustproof, Hydrophobic, Breathable, Heat Dissipation

Dimension (Unit: mm)

Details

Specifications	Air Permeability	Thread Length	Total Length	Thread Diameter	Wrench Diameter
G1/8	≥1500ml/min/@70mbar	8mm	16mm	18.5mm	17mm
G1/4	≥1500ml/min/@70mbar	7mm	15mm	18.5mm	17mm
G3/8	≥2300ml/min/@70mbar	10mm	19.5mm	24mm	22mm
G1/2	≥2300ml/min/@70mbar	10mm	19.5mm	24mm	22mm
G3/4	≥3000ml/min/@70mbar	10mm	23mm	35.5mm	32mm
1/8 NPT	≥1500ml/min/@70mbar	8mm	16mm	18.5mm	17mm
1/4 NPT	≥1500ml/min/@70mbar	7mm	15mm	18.5mm	17mm
3/8 NPT	≥2300ml/min/@70mbar	10mm	19.5mm	24mm	22mm
1/2 NPT	≥2300ml/min/@70mbar	10mm	19.5mm	24mm	22mm

Applications

RDDLZ air vent plugs can be widely used in battery packs and battery boxes of base station equipment, new energy electric vehicles, hybrid vehicles, the solar energy industry, high-power energy storage equipment, and various outdoor electrical equipment products.

Tips: Why choose a waterproof vent plug?

Waterproof vent plug prevents water ingress, effectively blocking rain, splashes, and moisture to protect internal components from corrosion and damage.
Maintains ventilation, allowing air and gases to flow freely to prevent pressure buildup or vacuum inside the system.
It can keep out dust and contaminants, stopping dust, dirt, and particles from entering and extending equipment lifespan.
The waterproof breather vent plug is suitable for harsh environments, such as outdoor, marine, or high-humidity conditions, ensuring device safety and stability.
