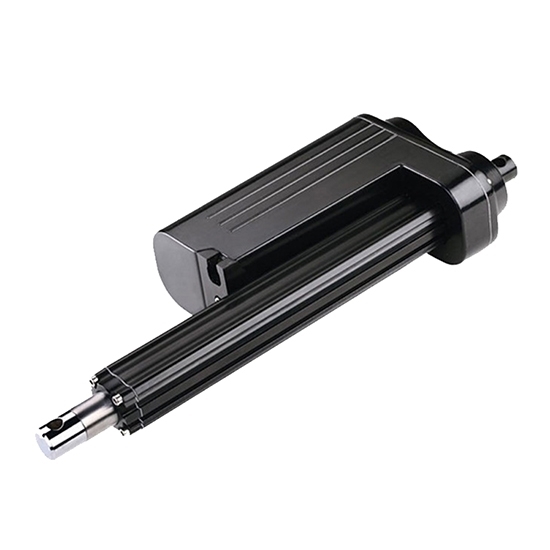

Heavy Duty Linear Actuator, 12V/24V, 12000N, 300mm Stroke

0 reviews • Write a review

from

$623.08

Ex Tax: $623.08

Stock: In Stock
Model: RDDLZ-LACTU-12000
Weight: 1.00
SKU: RDDLZ-LACTU-12000

Available Options

Short Description

Voltage (V)

Load Capacity

Stroke

Feedback Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided industrial linear actuator is a very powerful actuator, due to its 12000N large load capacity, compact design, and IP66 rated protection, is ideal for various applications such as agricultural machinery, construction machinery, and industrial machinery.

Heavy Duty Linear Actuator Specifications

Model		RDDLZHTW730
Voltage		12V DC, 24V DC (Optional) Note: The fluctuation of voltage is +/-2V.
Maximum Load		12000N in pull/push
Self Locking Load		15000N
Power		150W
Rated Speed at Full Load		4.5mm/s at 12000N
Output Speed at No Load		6.5mm/s
Stroke		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, can be customized)
Minimum Installation Dimensions		Stroke + 250 mm (Stroke<300mm) Stroke + 260 mm (Stroke>300mm)
Connection Mode		1. Default motor wiring (Brown lead: motor positive +, Blue lead: motor negative -) 2. Optional for Hall feedback connection (Red lead: Hall 5V voltage input +, Green lead: Hall 5V voltage input -, White lead: Hall signal output A, Yellow lead: Hall signal output B) 3. Optional for potentiometer feedback connection (Yellow lead: voltage input, Red lead: voltage output, White lead: ground wire, and potentiometer resistance is 10KΩ)
IP Rating		IP66
Operational Temperature Range		-20°C~+45°C
Certification		ISO, CE, RoHS
Noise		<60db
Line Length		750mm
Weight		8 kg
Built-in clutch (not adjustable)

Linear Actuator Load and Speed Selection

Rated Load Capacity		Self Locking Force (N)	Rated Load Current (A)	Output Speed at No load (mm/s)	Rated Speed at Full Load (mm/s)
Pull (N)	Push (N)	Self Locking Force (N)	Rated Load Current (A)	Output Speed at No load (mm/s)	Rated Speed at Full Load (mm/s)
12000	12000	15000	10.5	6.5	4.5
10000	10000	12000	10.5	8.5	6
7500	7500	9000	10.5	13	9
5000	5000	6000	10.5	17	9.5
4500	4500	5000	10.5	25	14
3200	3200	4000	10.5	38	24

Linear Actuator Standard Dimension (mm)

S: Stroke, L: Retracted Length=Stroke+250mm (Stroke<300mm) / Stroke+260mm (Stroke>300mm)

Linear Actuator Stroke and Size Selection

Stroke±2 (mm), Mounting Dimension±2 (mm)
Stroke	50	100	150	200	250	300	350	400	450
Size	300	350	400	450	500	550	610	660	710

Tips: Linear actuator has superior performance and wide application

We can regard linear actuator as a kind of power driven equipment with the superior performance, because it can convert the rotation movement of the motor into the straight reciprocating motion of the linear actuator. So far, it is mainly used as the executive machine for various or complicated, or simple technological process, so as to realize the remote distance control, concentrated control or automatic control.

In the operation process, the main working principle of the linear actuator can be summarized as: The motor will drive a pair of feed screw nuts after the speed reduction of the gear. This means to transform the rotation movement of the motor into the linear motion. It completes the pushrod movement relying on the motor forward and reversal rotations.

In practical applications, aimed at different travel requirements, we can achieve the purpose by using the length of the arm of the adjustment lever. At present, the stroke control device of the linear actuator mainly includes two forms, one is the worm gear transmission form, and the other is the gear transmission form. In addition, during the user's operation process, the operator can choose to match with the appropriate potentiometer as needed.
