200W Vertical Axis Wind Turbine, 12V/24V

0 reviews • Write a review

from

$765.89

Ex Tax: $765.89

Stock: In Stock
Model: RDDLZ-VAWT-200
Weight: 1.00
SKU: RDDLZ-VAWT-200

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

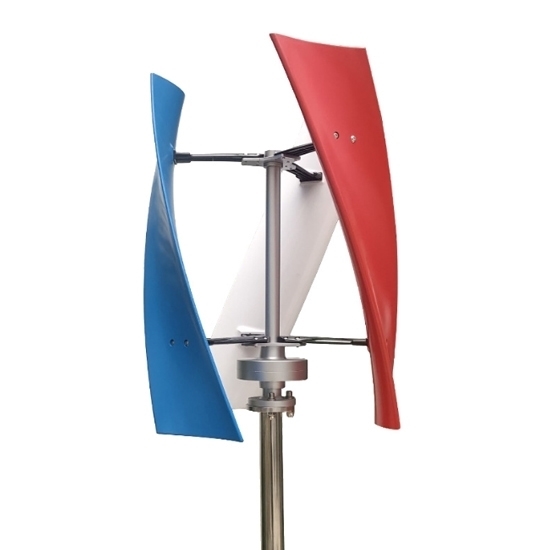

The 12V/24V vertical axis wind turbine has a maximum output of 200 watt. The vertical axis home wind turbine with its advanced blade design can operate efficiently at both low and high wind speeds, which is an ideal solution for areas with variable wind conditions.

Specification

Model	RDDLZ-X3-200
Rated Power	200W
Rated Voltage	12V/24V
With Controller	Yes
Start Up Wind Speed	2m/s
Rated Wind Speed	12m/s
Survival Wind Speed	50m/s
Wind Wheel Diameter/Height	0.55m/0.75m
Number of Blades	3
Blades Material	Nylon
Fuselage Material	Aluminum alloy
Magnetic Steel	NdFeB
Generator Type	Three-phase AC permanent magnetically suspended generators
Controller System	Electromagnetic brakes
Speed Regulation	360° Automatically Adjust Windard
Installation Flange	DN20
Degree of protection	IP54
Gross Weight	9.5kg
Top Net Weight	10.5kg
Dimension	860380200mm

Dimension (Unit: mm)

Applications

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

Tips: What is the power output of a vertical axis wind turbine

The power output of a vertical axis wind turbine depends on several factors, including the size and design of the turbine, the wind speed and direction, and the efficiency of the generator. Generally, small-scale vertical axis wind turbines have a power output of a few hundred watts to a few kilowatts, while larger turbines can generate several megawatts of power. However, the actual power output can vary widely depending on the specific conditions and settings of the turbine.
