3hp (2kW) Stainless Steel Centrifugal Pump
from
$835.44
Ex Tax: $835.44
- Stock: In Stock
- Model: RDDLZ-BAW-150-1
- Weight: 1.00
- SKU: RDDLZ-BAW-150-1

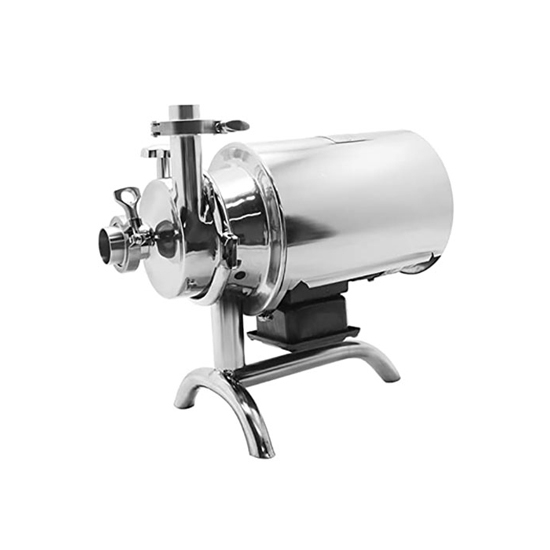

Stainless steel sanitary pump with 10t/ h flow rate, 24m lift (water column), 51/ 38mm inlet/ outlet size, three kinds of accessories for selection.
Specification
| Model | RDDLZ-BAW-150-1 |
| Rated power | 3hp (2kW) |
| Rated voltage | 220V/ 380V |
| Phase | 1 phase/ 3 phase |
| Accessories | Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union |
| Flow rate | 10t/ h |
| Lift (water column) | 24m |
| Inlet/ outlet size | 51/ 38mm |
| Outer size | L520mm*W260*H370m |
| Weight | 38kg |
| Warranty | 12 months |

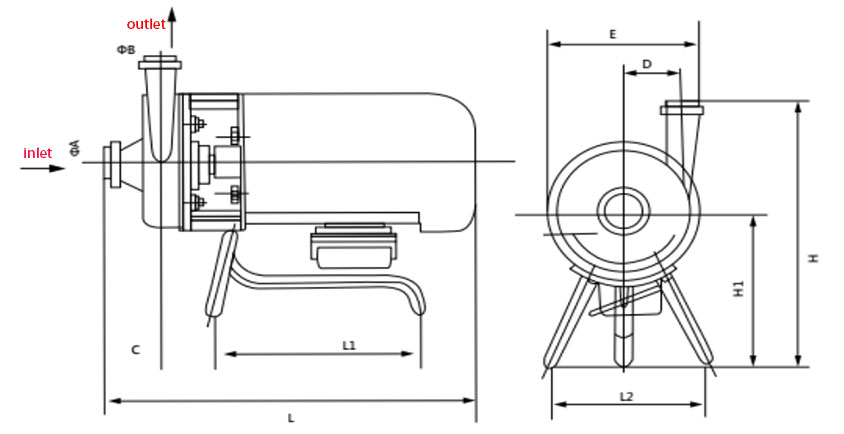

Dimension
| Model | Mounting dimensions (mm) | |||||||||
| A | B | C | D | E | L | L1 | L2 | H | H1 | |
| BAW-150 | 51 | 38 | 85 | 60 | 220 | 530 | 350 | 190 | 380 | 220 |
Product information
Tips: Adjustment Method of Stainless Steel Centrifugal Pump.
Outlet valve adjustment, pump variable speed adjustment and pump series and parallel adjustment. The centrifugal pump uses variable speed to adjust the flow rate, which can save energy better than the outlet valve to adjust the flow rate, and the energy saving efficiency is related to the flow rate change. In actual application, attention should be paid to the range of variable speed adjustment, in order to better apply the variable speed adjustment of centrifugal pump.
