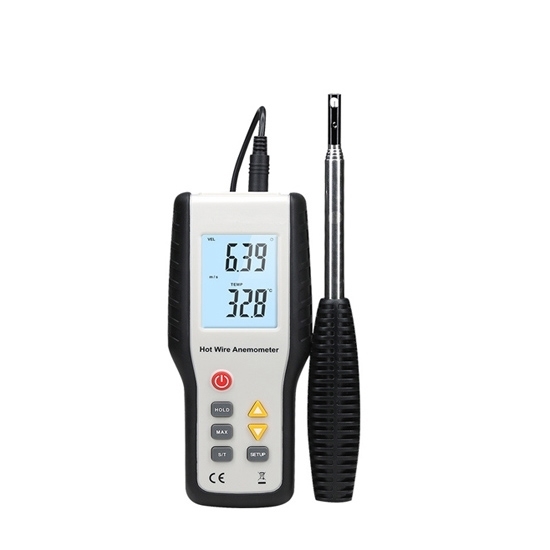

Hot Wire Anemometer, 0.1~25 M/s, Thermal Anemometer

0 reviews • Write a review

from

$220.45

Ex Tax: $220.45

Stock: In Stock
Model: RDDLZ-HWA-0125
Weight: 1.00
SKU: RDDLZ-HWA-0125

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price hot wire anemometer is an instrument for measuring wind speed and temperature. The thermal anemometer has a wind speed sensor and temperature sensor. The wind meter with a stretchable 8mm probe is easy to carry and use.

Specifications

Model: RDDLZ-HT9829
Sampling: About 0.8 seconds
Operating temperature: 0°C to 50°C (32°F to 122°F)
Operating humidity: Less than 80% RH
Power supply: Built-in 3.7V rechargeable battery
Supply current: About 60~90mA
Weight: 1kg
Dimensions: 200mmx 85mmx 38mm
Display: 43*57mm LCD, Dual function display

Parameters

Wind speed measurement
Range	Resolution	Accuracy
0.1~25.0 m/s	0.01 m/s	(5% + 1d) reading the data
0.3~90.0 km/h	0.1 km/h
20~4925/min	1ft/min
0.2~55.8 MPH	0.1 MPH
0.2~48.5 knots	0.1 knots
Temperature measurement
Range	Resolution	Accuracy
O°C to 50°C (32°F to 122°F)	0. 19C/0.10F	+1°C/1.8°F
Flow range
Unit	Range	Resolution
CFM	0-99999ft³/min	0.001 to 100
CMM	0-99999m³/min	0.001 to 100

Hot Wire Anemometer Details

Tips: What can a hot wire anemometer do?

It can measure the velocity and direction of the average flow.
The hot-wire anemometer measures the pulsating velocity of the incoming flow and its frequency spectrum.
The thermal anemometer measures the Reynolds stress in turbulent flow and the velocity dependence and time dependence of the two points.
It is used to measure wall shear stress.
The hot wire anemometers are often used to measure fluid temperature.
