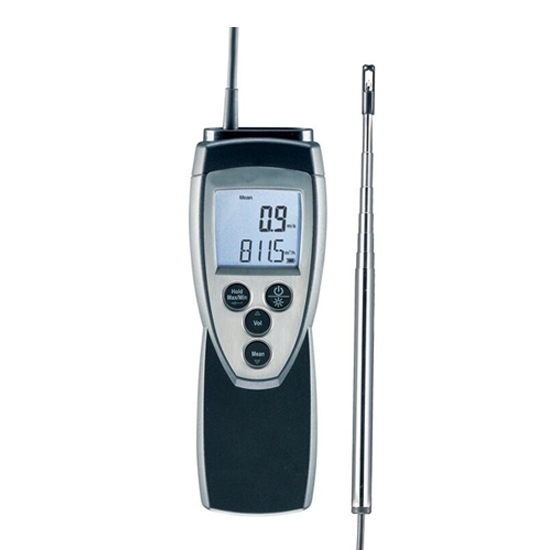

Hot Wire Anemometer, 0~20 M/s, Thermal Anemometer

0 reviews • Write a review

from

$1,085.30

Ex Tax: $1,085.30

Stock: In Stock
Model: RDDLZ-HWA-020
Weight: 1.00
SKU: RDDLZ-HWA-020

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price hot wire anemometer is an instrument for measuring wind speed and temperature. NTC and thermal wind speed probes for selection. The thermal anemometer with a wind speed measurement range of 0~20m/s is the best solution for HVAC wind measuring.

Hot Wire Anemometer Features

The hot wire anemometer measures temperature, wind speed and airflow.
It can calculate multi-point/time period averages.
The thermal anemometer can display maximum/minimum values.
It has a hold button to hold the reading.
Hot wire anemometer has a display with a backlight and an automatic shutdown function.

Specifications

Model: RDDLZ-TESTO425
Storage temperature: -40~+70°C
Operating temperature: -20~+50°C
Power supply: 9V
Battery life: 20h
Size: 182x64x40mm
Material/Shell: ABS

Probe Parameters

Probe type	NTC	Thermal wind speed probe
Range	-20~+70°C	0~+20m/s
Accuracy	±0.5°C (0~+60°C), ±0.7°C (Remaining range)	± (0.03m/s +5% of the measured value)
Resolution	0.1°C	0.01m/s

Hot Wire Anemometer Dimensions (Unit: mm)

Tips: Hot wire anemometer working principle

It places an electrically heated thin metal wire (hot wire) in the airflow, the heat dissipation of the hot wire in the airflow is related to the flow rate, and the heat dissipation causes the temperature change of the hot wire and causes a change in resistance, and the flow rate signal is converted into an electrical signal. The above is the working principle of a hot wire anemometer.
