Handheld Digital Vane Anemometer, 0.4~30 M/s

0 reviews • Write a review

from

$98.08

Ex Tax: $98.08

Stock: In Stock
Model: RDDLZ-DVAM-0430
Weight: 1.00
SKU: RDDLZ-DVAM-0430

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

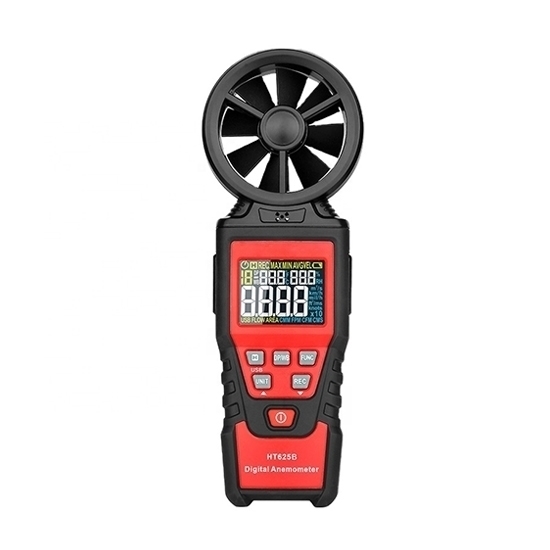

The handheld anemometer is a vane-type air velocity meter, for measuring wind speed with range of 0.4~30 m/s, other units (km/h, ft/s, Knots, ft/m) are available, air volume measurement range 0~9999 CFM. Digital wind speed meter has temperature and humidity testing function for selection, portable for handheld use, low cost.

Specification

Model	RDDLZ-HT625B
Measuring Items	Range	Resolution	Accuracy
Wind Speed*	0.40~30.00 m/s	0.01	± (2.0% + 0.5 m/s)
	1.40~108.0 km/h	0.01~0.1	± (2.0% + 1.8 km/h)
	1.30~98.50 ft/s	0.01	± (2.0% + 1.6 ft/s)
	0.80~58.30 Knots	0.01	± (2.0% + 1.0 knots)
	0.90~67.10 mile/h	0.01	± (2.0% + 1.1 mile/h)
	78.00~5900 ft/m	0.01~1	± (2.0% + 10 ft/m)
Air Volume Range	0-9999 CFM (CMM, CMS)	0.01~0.1	-
Air Temperature	-20~60℃ (-14~140℉)	0.1	±1.5℃
Dew Point Temperature of Air	-20~60℃ (-14~140℉)	0.1	±1.5℃
Wet Bulb Temperature	-50~60℃ (-58~140℉)	0.1	±1.5℃
Air Humidity	0~99%	0.1	±4.0%
Functions
USB	√
Air Duct Area Setting	√
Data Hold	√
MAX/MIN/AVG hold	√
Auto Power Off	√
Low Battery Indication	√
General Specifications
Power Supply	3 x 1.5V AAA batteries
Digital Display	9999 counters
Weight	Approx. 180g
Size	1976033mm

*Note: The measuring units of wind speed can be switched.

Digital Vane Anemometer Structure Diagram

Tips: Digital vane anemometer applications.

Digital vane anemometer is widely used in electric power, steel, petrochemical, energy saving, marine fishing, fan manufacturing, exhaust system and other applications. In addition, in sports events such as sailing, rowing, field shooting and other competitions, vane anemometer is also used.

Different seasons and geographical conditions will cause the wind direction in atmosphere to constantly change. For example, the seaside has different wind directions day and night, and there are different monsoons in winter and summer. Measuring wind speed and direction helps predict and study climate change. Vane anemometer is usually installed in places where there are no buildings or trees to avoid disturbing the movement of the wind. In various applications such as HAVC, heating, ventilation, air conditioning, meteorology, agriculture, refrigeration and drying, sanitation, etc., it is necessary to apply vane anemometer to measure air velocity.
