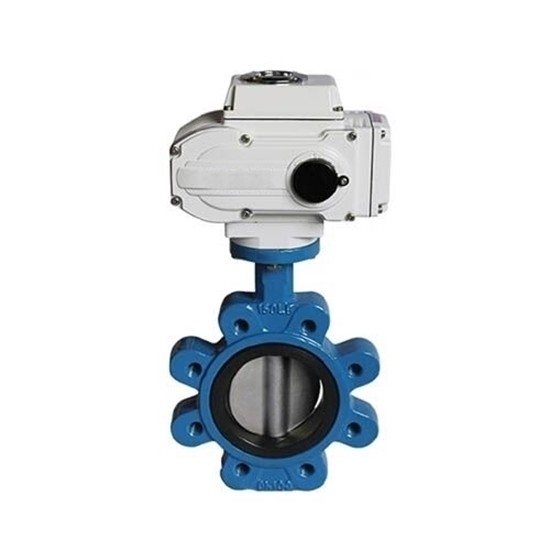

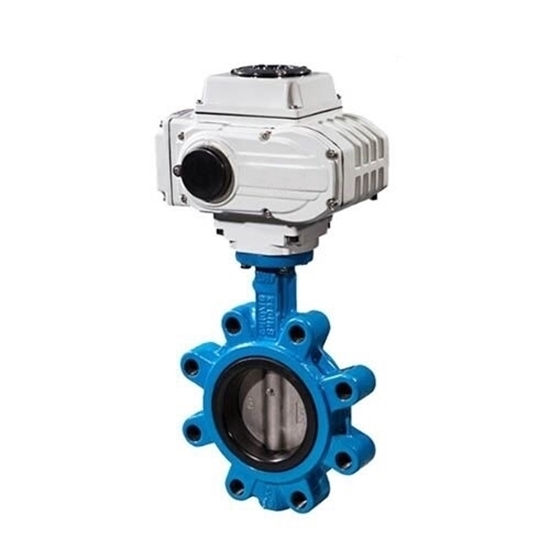

2" Electric Lug Type Butterfly Valve

2" Electric Lug Type Butterfly Valve
2" Electric Lug Type Butterfly Valve
2" Electric Lug Type Butterfly Valve
2" Electric Lug Type Butterfly Valve
2" Electric Lug Type Butterfly Valve
2" Electric Lug Type Butterfly Valve
2" Electric Lug Type Butterfly Valve
0 reviews • Write a review
from
$689.15
Ex Tax: $689.15
  • Stock: In Stock
  • Model: RDDLZ-HK60-DMS50-05
  • Weight: 1.00
  • SKU: RDDLZ-HK60-DMS50-05

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

Lug type butterfly valve 2 inch (DN50) with electric actuator with 2 type: on/off and regulation types. Work at temp -30℃~ 60℃ and possess protection class IP65. Voltage optional lug type butterfly valve with special voltage can be customized. Light weight and compact construction.


Electuator Specification

ModelRDDLZ-HK60-DMS50-05
Protection ClassIP65
Ambient Temp.-30°C~60°C
Installation AngleAny
Electrical ConnectionG1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Voltage OptionalAC 110V, AC 220V, AC 380V, DC 24V, AC 24V
Corresponding Valve Port Size2" (DN50, 50mm)
05 Actuator Control CircuitA Type (Normalized Form): ON/OFF Type with Light Indicator Signal Feedback (Default 90° opening and closing)
VoltageAC 220VDC 24VAC 380V
Torque Output50Nm60Nm70Nm
90° Cycle Time10S/20S/60S8S20S
Working Current0.23A0.38A0.16A
Drive Motor50W9. 5W51W



Body and Valve Specification

BodyValve components
Corresponding Valve Port Size2" (DN50, 50mm)Seating MaterialNBR, EPDM, VITON (Default PTFE)
Body MaterialStainless SteelDisc MaterialStainless Steel
End ConnectionWafer FlangeStem MaterialStainless Steel
Operating Pressure< 1.6MPaApplicable MediaControl of Water, Air, Gas,Oil, Liquid, Steam
StructureMidline Structure/ A-type

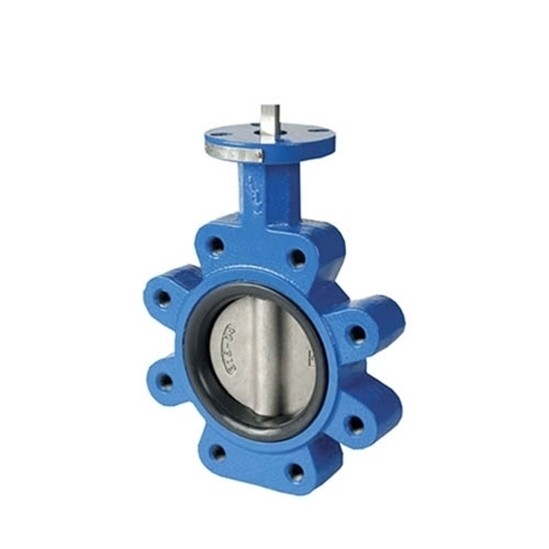

Butterfly Construction



DimensionInchDD1D2LHn-φd
DN502"52.7 mm89 mm125 mm41.4 mm217 mm4-M16 mm


Actuator Dimension (mm)

Details

Features

  1. Remote controlled lug type bf valve switch regulation and MODBUS, PROFIBUS Field Bus.
  2. Body made of hard aluminum alloy, which is treated by hard anodic oxidization and coated by Polyester powder with great corrosion resistance.
  3. Motor fully enclosed cage type motor is small in size and inertia, large in torque. Insulation class is F grade which can prevent motor over-heating.
  4. Manual Override energy-saving of wafer type butterfly valve with lug type, used for manual operation when electricity is off. In automatic operation, it can be fixed inside the clip for easy operation.
  5. Wafer butterfly valve with lug type indicator assembled on center axis, valve position can be observed. Outside mirror design facilitates position observation and prevents water drops accumulation.
  6. Lug type butterfly valve high sealing performance, standard protection class is IP67.
  7. Mechanical and electronic position limit switches, controlled by cam. Position set easily and accurately without any influence by handle.
  8. Electric actuator valve with lug type, compact structure, miniature size, long service life, good sealing performance, easy maintenance, quick detachable and installation.
  9. Explosion proof construction EXd II BT4.

Note

If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

We also provide other bf wafer butterfly valve for home. If you have any questions, please feel free to contact us.

Tips: What about bf valve with lug type installation instruction?

  1. When removing the valve from storage, a careful check should be made to ensure that the valve has not been damaged during the storage period.
  2. Valve open or close position is indicated on the notch plate for lever operated valves or on the top of the gear operator for gear operator operated valves.
  3. Center valve, span body with bolts, but do not tighten. Slowly open disc to ensure that it clears pipe ID and leave at full open position.
