Insulation Rubber Sheet, 5mm*10kV

0 reviews • Write a review

from

$316.85

Ex Tax: $316.85

Stock: In Stock
Model: RDDLZ-RS-01-5mm
Weight: 1.00
SKU: RDDLZ-RS-01-5mm

Available Options

Length

Type Selection

Color

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

The 5mm*10kV insulating rubber sheet (also called: Insulating rubber, insulating bench pad, insulating rubber pad) is an abbreviation of insulating rubber sheet with a large volume resistivity and resistance to electrical breakdown. It is made of non-polar rubber with excellent insulation properties such as NR, SBR and IIR. It is the materials for countertops or floor coverings in work places such as power distribution.

Selection configuration table

Basics	Model	RDDLZ-RS-01-5mm
	Thickness	5mm
	Width	1m
	Length*	Customized

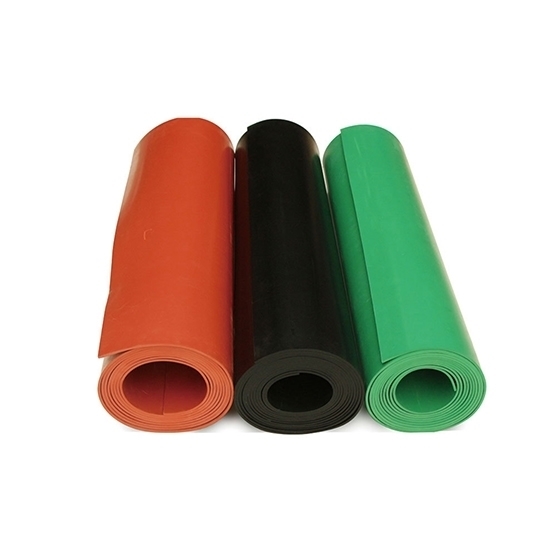

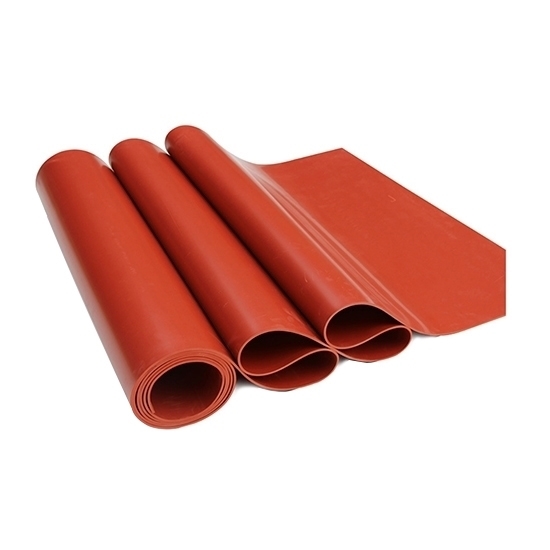

	Color*	Black, Red, Green

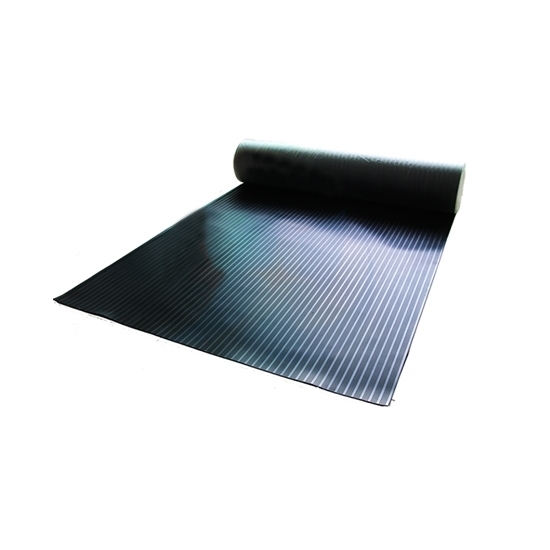

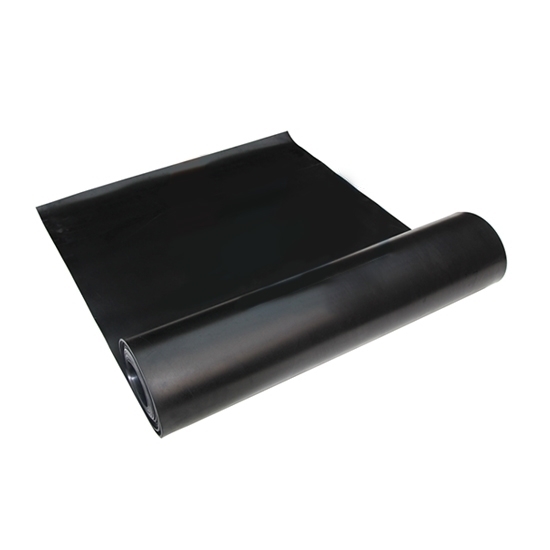

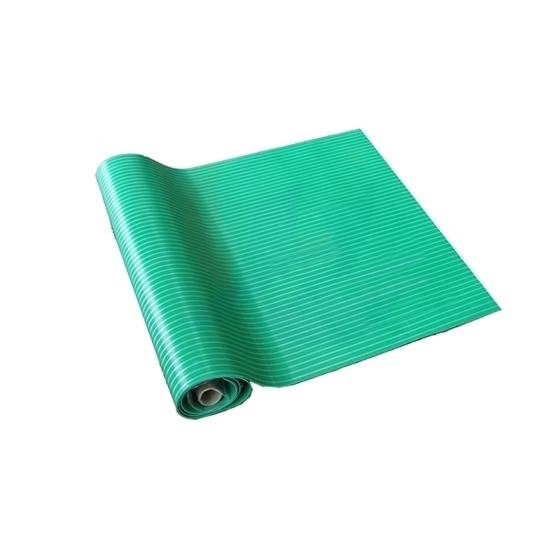

	Ruber Sheet Type*	Smooth surface, Striped surface
	Pressure resistance	10kV
Technical Parameters	Electrical insulation performance test	10kV
	Time required for power frequency withstand voltage test	1min
	actual test measurement time	2min
	Measured value of power frequency withstand voltage experiment	≥10kV
	Hardness (Shore A)	55-70
	Tensile strength (Mpa)	≥5.0
	Elongation at break	≥250%
	Fixed elongation (150%) permanent deformation	≤25%
	Hot air aging (70℃*72h): the reduction rate of tensile strength	≤30%
	Water absorptio	≤1.5%

Tips: Insulating rubber sheets types

Divided by color: red insulating rubber sheet, black insulating rubber sheet, green insulating rubber sheet, gray insulating rubber sheet.
Divided by voltage level: 5kV, 10kV, 15kV, 20kV, 25kV, 30kV, 35kV.
According to the thickness, it can be divided into: 3mm, 5mm, 8mm, 10mm, 12mm.
According to the name, it can be divided into: Insulating rubber sheet, insulating rubber pad, insulating sheet, insulating blanket, electrical insulating rubber sheet.
