Insulation Rubber Sheet, 6mm*15kV

0 reviews • Write a review

from

$323.17

Ex Tax: $323.17

Stock: In Stock
Model: RDDLZ-RS-01-6mm
Weight: 1.00
SKU: RDDLZ-RS-01-6mm

Available Options

Length

Type Selection

Color

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The most important thing in choosing rubber as an insulating plate is that the rubber has good insulation, which allows the insulating rubber plate to work normally under high voltage, without being affected by high voltage.

Selection configuration table

Basics	Model	RDDLZ-RS-01-6mm
	Thickness	6mm
	Width	1m
	Length*	Customized

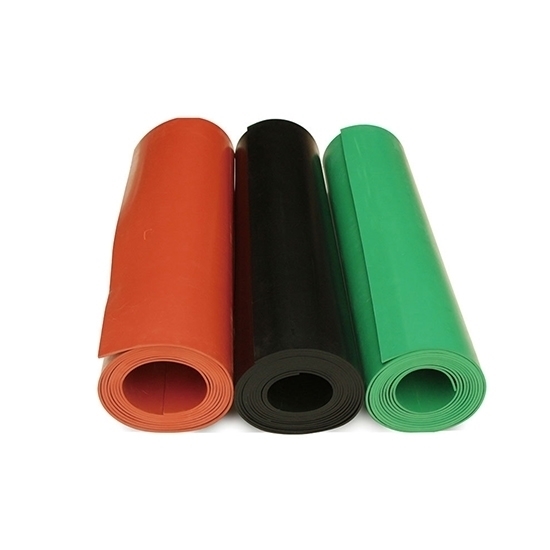

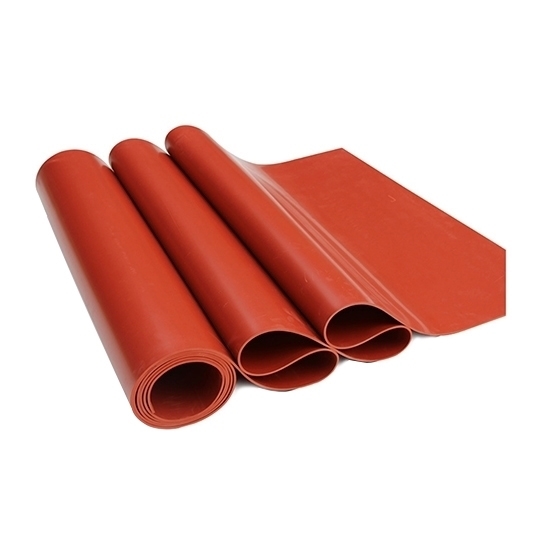

	Color*	Black, Red, Green

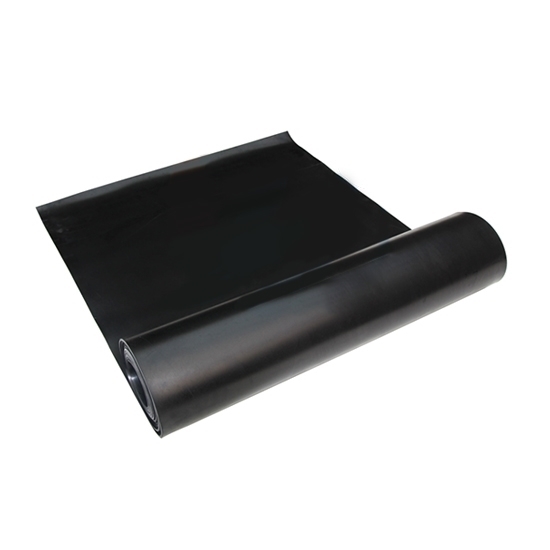

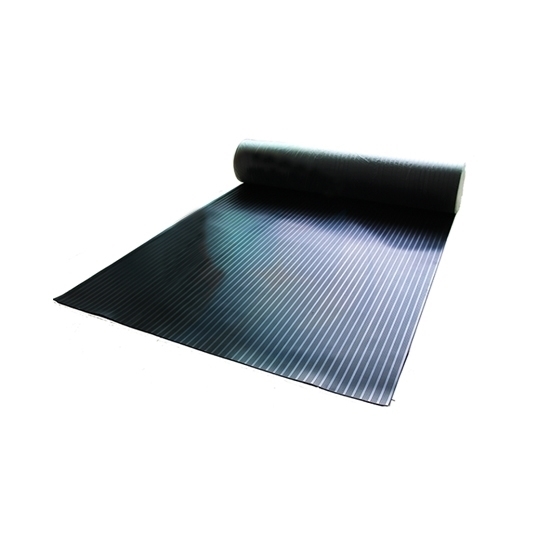

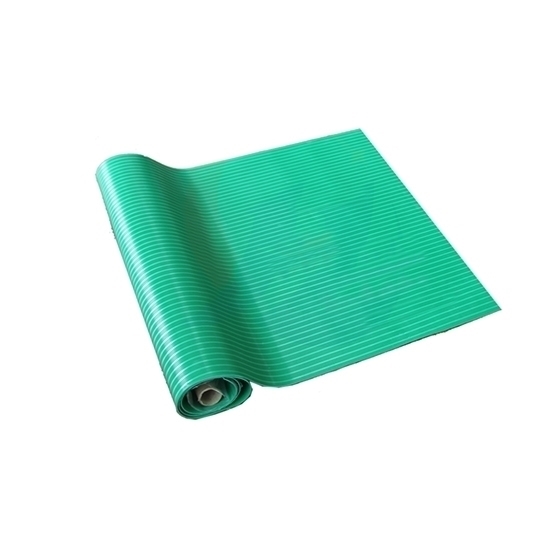

	Ruber Sheet Type*	Smooth surface, Striped surface
	Pressure resistance	15kV
Technical Parameters	Electrical insulation performance test	15kV
	Time required for power frequency withstand voltage test	1min
	actual test measurement time	2min
	Measured value of power frequency withstand voltage experiment	≥15kv
	Hardness (Shore A)	55-70
	Tensile strength (Mpa)	≥5.0
	Elongation at break	≥250%
	Fixed elongation (150%) permanent deformation	≤25%
	Hot air aging (70℃*72h): the reduction rate of tensile strength	≤30%
	Water absorptio	≤1.5%

Tips

The insulating rubber sheet made of rubber is also waterproof, and the insulating rubber sheet is laid in the air, which effectively avoids the accident of water penetration and plays a role in maintaining the safety of the staff. Rubber is not only used in the power industry but also widely used in other industrial fields. The molecular chain does not contain polar groups and is a non-polar rubber. Only resistant to some polar solvents. Therefore, its oil resistance is very poor. The insulating rubber sheet has good alkali resistance, but is not resistant to strong acid.
